2.5 Male NPT X 2.5 Female NST Swivel (HFA2525MPXFNS) - UnitedBuilt Equipment

Dixon SM250F 2-1/2-Inch Male NPT x Female NST Swivel Adapter

SKU 0003405
Brand Dixon
Availability:
2 in stock | Available on backorder
$0.00 - $0.00
$0.00
$123.14
$123.14 - $123.14
$123.14

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

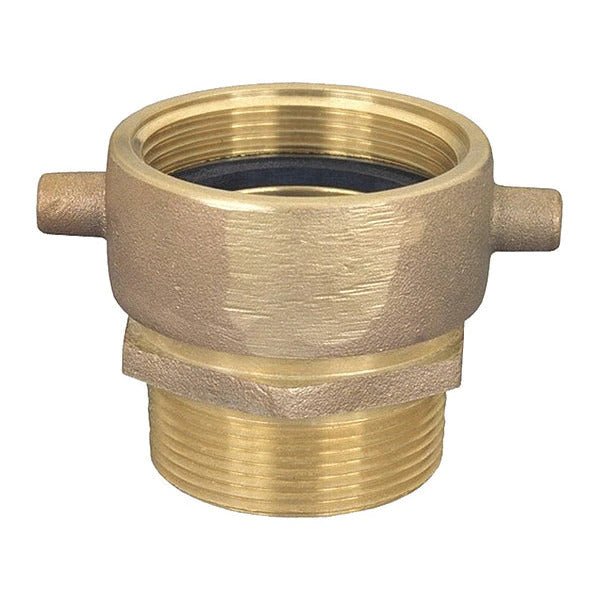

The Dixon SM250F pin-lug adapter connects a 2-1/2-inch male NPT pipe end to a 2-1/2-inch female NST (NH) swivel hose connection. The adapter is cast brass.

The female swivel lets you tighten the hose-side connection without rotating the installed male pipe end. Check both mating connections before ordering: the pipe side requires female NPT, while the hose side requires male NST (NH).

Join pipe and hose connections

Feature Benefit
Female swivel Allows independent rotation at the hose connection during connection and removal.
Pin lugs Provide engagement points for a suitable coupling wrench.
NPT-to-NST (NH) layout Adapts between the specified pipe and fire-hose thread standards.

Technical specifications

Specification Detail
Manufacturer part number SM250F
Male end 2-1/2-inch NPT
Female swivel end 2-1/2-inch NST (NH)
Construction Cast brass
Lugs Pin lug
Standard working pressure 175 PSI

Before ordering

Check Requirement
Threads and gender Match female NPT at the pipe port and male NST (NH) at the hose fitting.
Assembly limits Keep the full assembly within the ratings of the adapter, hose, and every mating component.
Variant distinction This is SM250F; do not substitute the separately listed SM250F-D without confirming the required product.
California warning Contains lead, associated with cancer and reproductive harm under California Proposition 65.

Need help selecting a swivel adapter? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your connection sizes, thread types, and application.
