Vision Tank U-Kit

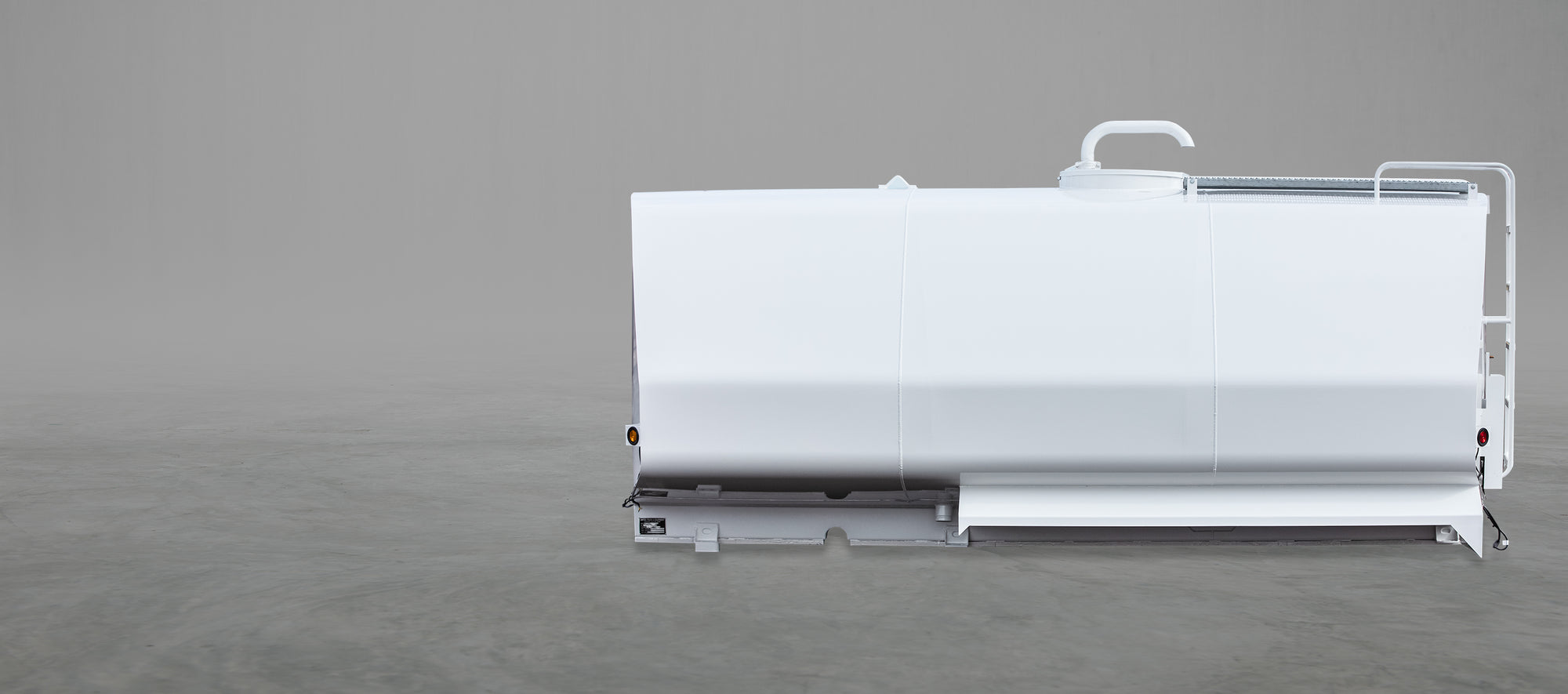

U-Kits are unassembled Water Truck Tank Kits. They include plumbing, couplings, spray valves, water pump, and all necessary parts to install a Water Truck Tank.
Request a Quote Call Sales

Shape of Safety

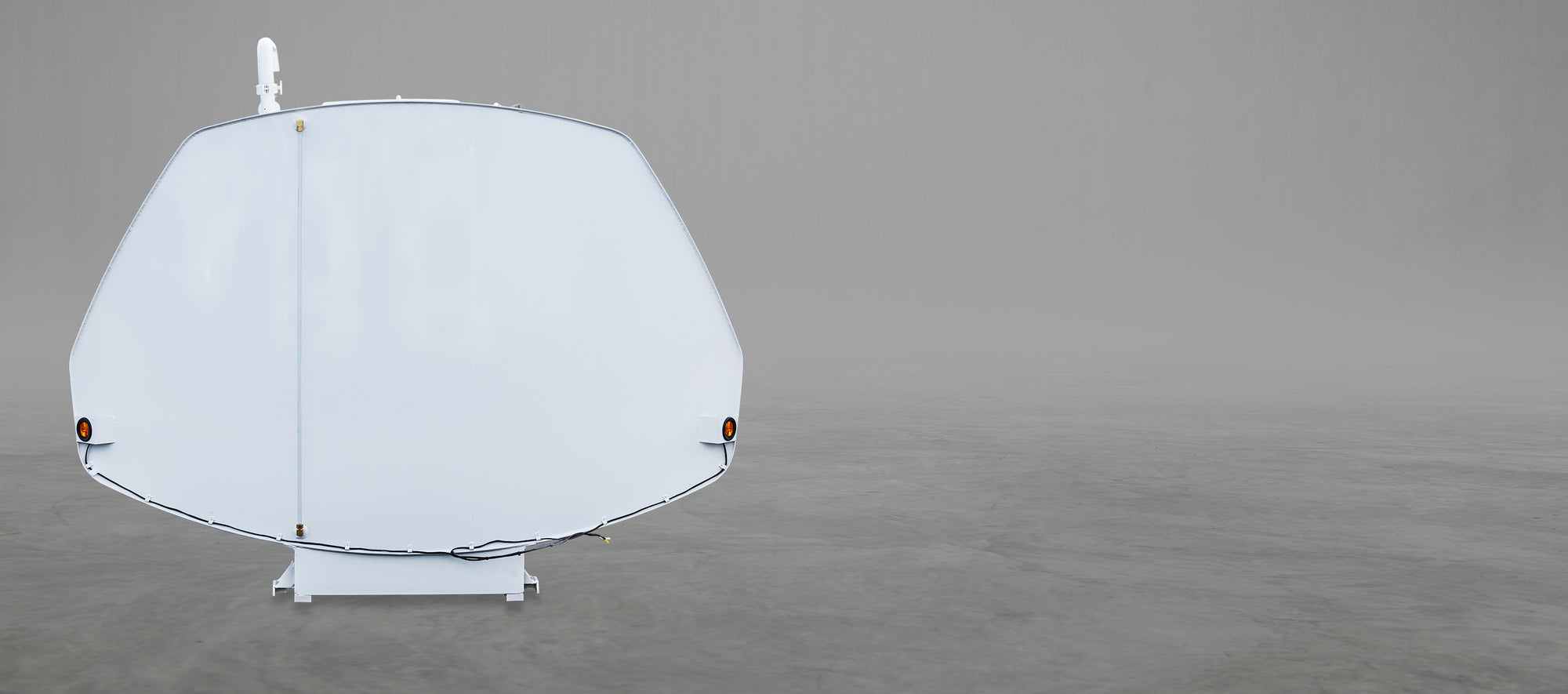

Our new Vision Tank series is a modified trapezoid shape. The Vision Tank offers a lower center of gravity and improves rearview visibility.
Request Quote Call Sales

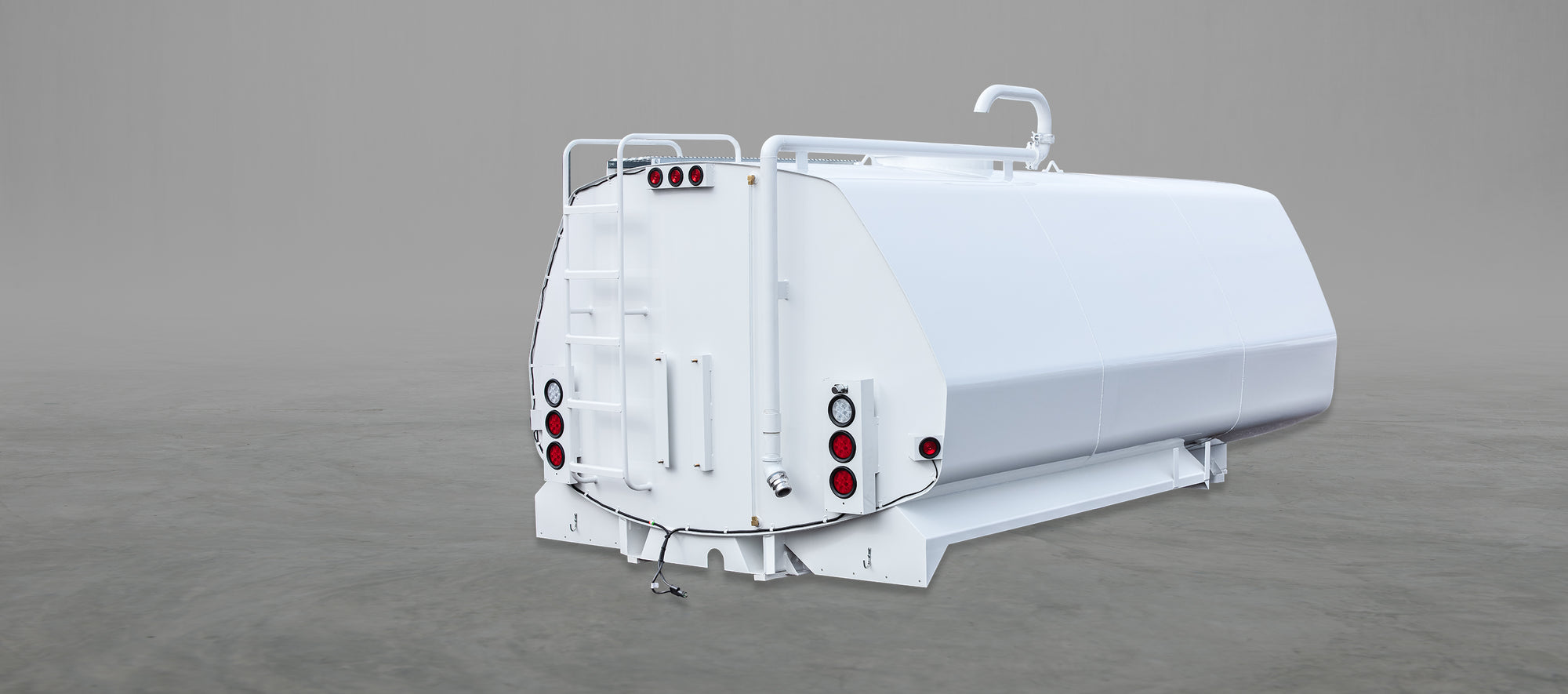

Vision Tank U-Kit

U-Kits include hydrant fill spout, ladder, light brackets, fenders, and manway preinstalled on the tank.
Request a Quote Call Sales
Water Truck Tank Kit U-Kit

Water Truck Tank Kit U-Kit

UnitedBuilt U-Kit is an unassembled water truck tank kit that includes all plumbing, fittings and couplings, valves & nozzles, water pump, air controls & cab console, mounting kit, and DOT LED lighting. Parts are shipped loose for your installation. Our U-Kits are available in a variety of lengths and capacities.

Standard Capacities

1,800 to 6,000 Gallons

Standard Lengths

8' to 20'

Manufactured in USA

We manufacture our UnitedBuilt  tanks in Phoenix, AZ USA from the ground up starting with certified quality A36 sheet steel.

5 Year Warranty

We take great pride in manufacturing superior water tanks and proudly back that up with our standard 5-Year Tank Warranty. From the date of your purchase, we cover against defective workmanship or defective materials for a full five years.
Warranty Info

Full Penetration Welds

All shells seams are professionally welded 100% on both the inside and outside of the tank.

Request Quote
Belly Plates

Tanks of 3,000 gallons and larger are enhance with a full-length belly plate that effectively doubles the bottom thickness.

Full Penetration Welds

All shells seams are professionally welded 100% on both the inside and outside of the tank.

Vulcanized Wear Pads

Tank of 3,000 gallons and larger are installed with our UnitedBuilt vulcanized rubber wear pads between the tank and truck frame.

Standard Tank Kit Features

Our standard features include the most common configuration and enhancements to provide optimal performance and durability.

Water Pump, Cast Iron, 4x3, Counter-Clockwise (CCW), Grooved Ends, Mechanical Seal, UnitedBuilt M3ZRMS B68416MS - UnitedBuilt Equipment

Water Truck Pump

4x3 Centrifugal Water Pump

Our standard system includes our UnitedBuilt cast iron 4x3 centrifugal water pump with a mechanical seal with max flow 750GPM at 65PSI.

Power Take Off (PTO)

Water pumps are driven by heavy duty 2-gear air shift or hot shift Chelsea Parker or Muncie PTO with a balanced 1310 series driveshaft. Hydraulic drive is available as an option.

Request Quote
Plumbing

Plumbing

Schedule 40 Black or Stainless Pipe

All plumbing is in scheduled 40 black or stainless pipe, no hose plumbing.

Groove Couplings

Plumbing is connected with groove couplings for reliability and simple maintenance.

1-Year Plumbing Warranty

Our plumbing is backed up by our 1-Year Warranty against defective workmanship or materials.

Request Quote
Spray Valves

Spray Valves

Cab Control Console

Cab mounted control console with switches to independently operate each spray valve.

Front Spray

Two air operated spray valves with adjustable fan nozzle.

Side Spray

Two air operated spray valves with duckbill nozzles on adjustable 90-degree groove elbows.

Rear Spray

Two air operated spray valves with adjustable fan nozzle.

Request Quote
DOT LED Lights

DOT LED Lights

Lighting Kit

UnitedBuilt tank kits include a DOT LED lighting kit. LED sealed beam lights with wiring encased rubber harness.

Request Quote
Exterior Finish

Exterior Finish

Industrial Powder Coating

In our continuing pursuit to offer the highest quality product and achieve the longest lasting and most appealing finish, we installed a state of the art powder coating facility.

Preparation

Tanks are sandblasted to a specific profile just prior to entering our industrial powder coating booth.

Powder Coat Application

Next tanks are powder coated to a specific mil thickness around the entire tank exterior prior to entering our industrial state of the art oven.

Zinc Primer

All powder coated tanks are first half baked with a Rich Zinc Base Layer to enhance corrosion resistance.

Environmentally Friendly

Compared to solvent-based paint, powder coating does not produce harmful emissions or pollutants. Additionally, it generates less waste in the production process, leading to lower emissions in the finishing line and reduced product waste.

Request Quote

Tank Kit Options

We offer a variety of tank system options such as interior epoxy lining, remote operated water cannon, hose reels, and draft fill plumbing.

Hose Reel

Hose Reel

Trusted Brands

We distribute hose reels for both American Reeling and Coxreels.

Sizes

Our hose reel selection offers a variety of hose sizes and length. From 1" to 1-1/2" and 50' to 100'

Manual, Electric or Spring Rewind

Choose between our manual rewind, electric motor, and spring rewind hose reels options.

Request Quote
Water Cannon

Water Cannon

Elkhart Brass

Elkhart brass heavy duty Nitro HD remote joystick operated water cannon.

Nitro HD

Stainless steel thrust rods and thrust bearings for maximum durability and resistance to sheer load and vibration.
Sealed high-torque motors.

Joystick Controler

In cab joystick controller for smooth operator control.

Request Quote
Suction Fill

Suction Fill

Priming

Choose from either an internal priming tank or a manual Protek DP7 hand primer.

Draft Plumbing

Draft fill plumbing and valves to engage suction to fill the tank from an external water source.

Suction Hose

Standard 3" x 20' non-collapsible suction hose with foot valve.

Hose Storage

Choose from either fender tabs for wrap around tank storage or aluminum fender hose tubes with hinged doors and caps.

Request Quote
Exterior Finish

Exterior Finish

Industrial Powder Coating

In our continuing pursuit to offer the highest quality product and achieve the longest lasting and most appealing finish, we installed a state of the art powder coating facility.

Preparation

Tanks are sandblasted to a specific profile just prior to entering our industrial powder coating booth.

Powder Coat Application

Next tanks are powder coated to a specific mil thickness around the entire tank exterior prior to entering our industrial state of the art oven.

Quality Control

Tank profiles are checked prior to entering our powder booth and powder mil thickness is verified with a state of the art digital reader prior to entering our oven.

Environmentally Friendly

Compared to solvent-based paint, powder coating does not produce harmful emissions or pollutants. Additionally, it generates less waste in the production process, leading to lower emissions in the finishing line and reduced product waste.

Request Quote
Interior Finish

Interior Finish

Epoxy Lining

Epoxy coating significantly enhances the durability of the tank interior by protecting it from rust and corrosion.

Preparation

Tanks are sandblasted to a white metal and cleaned before the epoxy application.

Marine Grade Coating

MACROPOXY 646 PW EPOXY is a high solids, high build, fast drying, polyamide epoxy classified by UL to ANSI/NSF 61 as a tank lining for potable water storage tanks. The high solids content ensures adequate protection of sharp edges, corners, and welds.

Potable Coating

MACROPOXY 646 PW EPOXY is a high solids, high build, fast drying, polyamide epoxy classified by UL to ANSI/NSF 61 as a tank lining for potable water storage tanks.

Request Quote
Dust Bar

Dust Bar

Size Options

Our dust suppression bars are available in 3" and 4" schedule 40 pipe. Both sizes are 8' wide with holes on 6" centers.

Gravity or Pressurized

Dust suppression bars can be plumbing for gravity feed or pump pressure. Pressurized bars include brass VeeJets.

Air Operated

UnitedBuilt dust suppression bars are air operated with a 2-way butterfly valve and include a cab control switch.

Request Quote
ROJO Joint

ROJO Joint

Electric Articulated Joint

The ROJO enables remote operation and control of the nozzle direction. The most common application is for articulated side sprays, but is also available for front flushing application.

Elkhart Brass

The ROJO is manufactured by Elkhart Brass with high torque motor and rated for 250 PSI.

Directional Control

The ROJO has adjustable hard stops that enable operators to set the range of travel from 0° to 310°. Once a hard stop is set, the range of motion can be controlled electronically from the switch controller without the need to manually adjust the direction of flow.

Request Quote
Auxiliary Lights

Auxiliary Lights

LED Work Lights

ECCO E92004 LED 700 lumen work lights mounted on tank. Manually adjustable left/right and up/down direction.

LED Beacon/Strobe Lights

ECCO 7965A LED amber beacon light or Whelen MC23PA 23" LED Amber lightbar.

Request Quote
Hydraulic Drive

Hydraulic Drive

Hydraulic Pump & Motor

Heavy Duty Bi-Directional hydraulic pump and motors manufactured in the USA.

4x3 Centrifugal Water Pump

Our standard system include our UnitedBuilt cast iron 4x3 centrifugal water pump with a mechanical seal Rated for approximately 750GPM at 65PSI.

Request Quote
Tool Box, Diamond Tread Aluminum, Locking Storage, 18x18x24, Height 18" x Depth 18" x Width 24", Buyers 1705100 - UnitedBuilt Equipment

Tool Box

Buyers Tool Boxes

Buyers frame mounted locking tool boxes available in both steel and aluminum.

Request Quote
Bypass Valve

Bypass Valve

Relieve Pressure Spikes (Water Hammer)

Our pressure bypass valve helps to reduce the effects of pressure spikes or water hammer by returning water to the tank with a pressure sensing air valve.

Request Quote
Additional Options

Additional Options

Gravity Drop

Air operated 6" gravity drop with splash plate for even fan spray.

Engine Driven Water Pump

Diesel engine driven water pump with in cab controls.

Rear View Camera

Rear view camera with in cab display.

FRC Tank Vision

FRC LED digital water level gauge with display inside cab and at fill port.

Request Quote

FAQ

Does UnitedBuilt offer flexibility in water tank length and gallonage?

UnitedBuilt offers a large combination of water tank configurations to accommodate length and gallonage requirements. Standard tank types can range from 1800 to 6000 gallons, and from 10 to 18 feet and longer. Tanks may be built to the classic modified ellipse, or to a modified trapezoid with radius bottom. 16 different gallons-per-foot configurations ensure that UnitedBuilt can meet nearly any water system specification.

Do I have a choice about the type and quantity of valves and spray heads to apply to my water truck?

UnitedBuilt builds a wide variety of spray systems. Your water delivery choices include how many valves, how many spray nozzles, how the nozzles are actuated, whether each spray or each bar is independently controlled, how many controls are on the cab console, whether to use ‘duckbill’ or adjustable type nozzles, and whether to use UnitedBuilt valve and nozzle products or those of a handful of other manufacturers, all in stock. In short, we are positioned to equip you with the water delivery application you need.
