Hydrant Plug with Chain, 2 - 1/2" Male NST, Dixon FP250F - UnitedBuilt Equipment

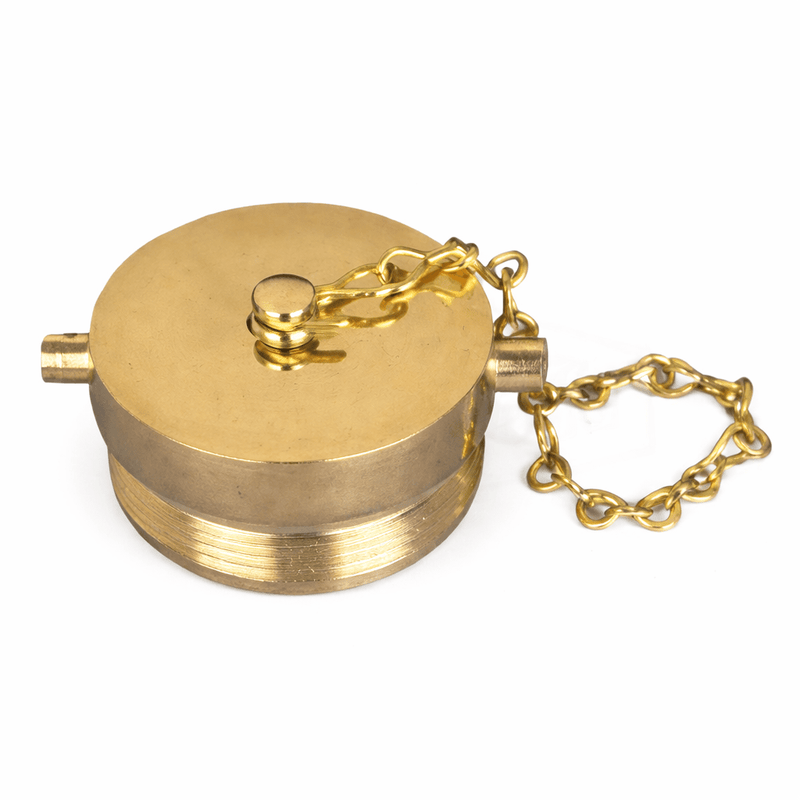

Dixon FP250F Brass Pin-Lug Plug with Chain, 2-1/2" Male NST

SKU 0003627
Brand Dixon
Availability:
3 in stock | Available on backorder
$0.00 - $0.00
$0.00
$100.00
$100.00 - $100.00
$100.00

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

For protection only — not intended for pressure applications.

The Dixon FP250F pin-lug plug covers a compatible 2-1/2-inch female NST (NH) connection when it is not in use. Its male threads match the opposite-gender hose or equipment connection, and the included chain helps keep the plug with the equipment when removed.

Choose this cast-brass plug to protect an unused matching connection rather than to retain system pressure. The 2-1/2-inch nominal size does not make NST threads interchangeable with NPT or NPSH; verify the actual thread and connection gender before ordering.

Keep the protector with the connection

Pin lugs provide engagement points for a suitable coupling wrench. The chain provides a retention point so the removed protector can remain attached near its connection.

Feature Benefit
Included chain Helps keep the protector with the equipment while removed.
Pin-lug design Provides engagement for a suitable coupling wrench.
Male NST (NH) thread Fits a matching 2-1/2-inch female NST connection.

Technical specifications

Specification Detail
Manufacturer / part number Dixon / FP250F
Product Pin-lug plug with chain
Thread 2-1/2-inch male NST (NH)
Body material Cast brass
Service limitation Protection only; not intended for pressure applications

Before ordering

Check What to confirm
Mating connection Confirm 2-1/2-inch female NST (NH), not NPT or NPSH.
Pressure Do not use as a pressure-retaining closure. Isolate and depressurize equipment before servicing its connection.
Configuration Select FP250F for this male-threaded plug; the opposite-gender cap or plug is a different item.
California warning Contains lead, associated with cancer and reproductive harm under California Proposition 65.

Need help selecting the correct plug? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your connection size, thread type and application.
