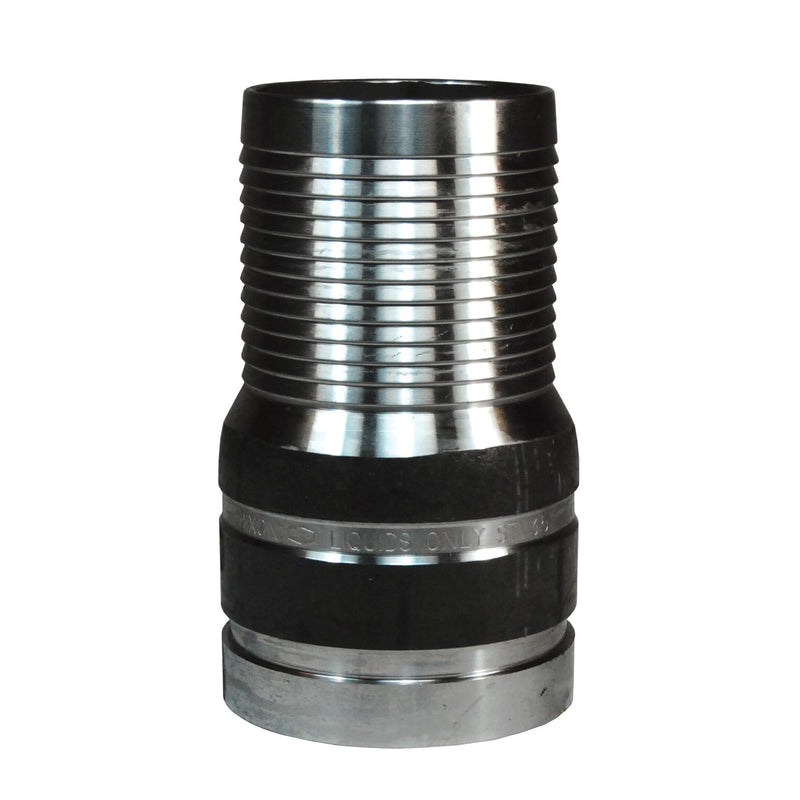

Dixon STV King Combination Nipple, Grooved End x Hose Shank

Dixon STV King Combination Nipple, Grooved End x Hose Shank

SKU 0002612
Brand Dixon
Availability:
23 in stock | Available on backorder
$0.00 - $0.00
$0.00
$33.50
$24.25 - $79.00
$33.50

Product Images

Images are for representation only and may differ from the actual product.

Size 1-1/2"

Questions about this product?

Dixon STV King combination nipples connect a hose shank to a grooved-end connection in low-pressure liquid suction or discharge service. These STV models are unplated steel, with nominal sizes from 1-1/2 through 4 inches.

Select the nipple to match the hose and grooved connection, then select the securing components for that assembly. This is a fitting, not a complete hose assembly; the hose, grooved coupling and hose attachment must be selected separately.

Connect hose to a grooved line

Feature Benefit
Grooved end Connects to a matching grooved coupling rather than a threaded port.
Hose shank Provides the hose-side connection when paired with the correct hose and securing method.
Size-specific models Choose the exact nipple size and MPN for both ends of the assembly.

Technical specifications

Specification Detail
Manufacturer Dixon
Series STV King combination nipple
Material Unplated steel
Connection arrangement Grooved end x hose shank
Service Low-pressure suction and discharge of compatible liquids

Select your size

Nominal size Manufacturer part number
1-1/2" STV20
2" STV25
2-1/2" STV30
3" STV35
4" STV40

Before ordering

The completed hose assembly determines the working pressure. Do not assign a pressure rating from the nipple size alone.

Check What to confirm
Hose and groove fit Match hose dimensions and construction, groove dimensions, coupling and gasket to the selected fitting.
Hose attachment Select a suitable clamping or crimp system; Dixon recommends available crimp sleeves for reliable assemblies.
Operating conditions Confirm liquid compatibility, pressure and temperature with Dixon for the complete assembly.
Excluded service Do not use for steam or compressible products such as air or nitrogen.
Assembly testing Follow the applicable assembly test procedure. Dixon references testing oil suction/discharge hose at 1.5 times working pressure for 15 minutes without leakage or coupling movement.
California warning Contains lead, a chemical associated with cancer and reproductive harm under California Proposition 65.

Need help selecting a grooved hose nipple? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your hose size, mating groove and application.
