Victaulic No. 10 90° Grooved Elbow, Ductile Iron

SKU 0011471
Brand Victaulic
Availability:
1 in stock | Available on backorder
$0.00 - $0.00
$0.00
$38.59
$31.89 - $194.00
$38.59

Product Images

Images are for representation only and may differ from the actual product.

Size 1-1/2"

Questions about this product?

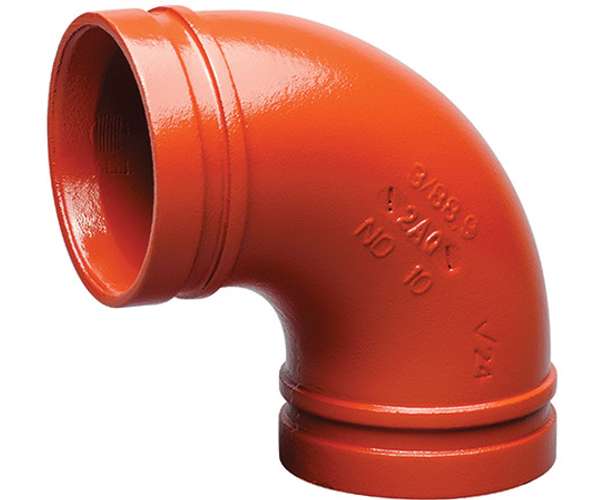

Victaulic No. 10 90° grooved elbow changes the direction of an OGS grooved pipe run by 90 degrees. This selection uses orange-enamel ductile iron and Victaulic Original Groove System (OGS) connections.

Its equal-size ends let you turn a line without changing nominal pipe size. Use the standard-radius elbow where the piping layout calls for a quarter turn, and check the available center-to-end clearance before ordering.

Fit the connection to your piping layout

Feature Benefit
90° turn Routes the piping through a quarter turn.
OGS grooved connection Joins matching Victaulic grooved pipe and components with a suitable coupling.
Separate coupling selection Lets you choose the joint and gasket for the intended service.

Technical specifications

Specification Detail
Manufacturer / model Victaulic No. 10
Configuration Groove x groove
Body Ductile iron, ASTM A536 Grade 65-45-12
Finish Orange enamel
Groove system Victaulic OGS
Pressure selection Standard fitting ratings follow Victaulic Style 77 coupling ratings; check the complete assembly and pipe conditions.

Select the correct size and part number

Nominal pipe size Manufacturer part number
1-1/2" F014010P00
2" F020010P00
2-1/2" F024010P00
3" F030010P00
4" F040010P00
5" F050010P00

Before ordering

When connecting a wafer- or lug-type butterfly valve directly with a Style 741 or 743 flange adapter, check the valve disc clearance against the fitting inside diameter.

Fitting only; select compatible couplings and gaskets separately. Nominal pipe size is not the measured outside diameter. Do not mix OGS parts with a different groove profile or plain-end coupling arrangement.

Check What to confirm
Pipe and groove Match nominal size, actual outside diameter and OGS groove dimensions.
Joint components Confirm the coupling, gasket, fluid, temperature and working pressure together.
Layout and clearance Check the fitting dimensions and clearance to adjoining valves or equipment.
Safe service Fully depressurize and drain the line, including isolated branches, before installation or removal. Follow the applicable Victaulic instructions.

Need help selecting the correct 90° grooved elbow? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pipe size, existing part number and application.
