Groove Cap, Victaulic No 60 - UnitedBuilt Equipment

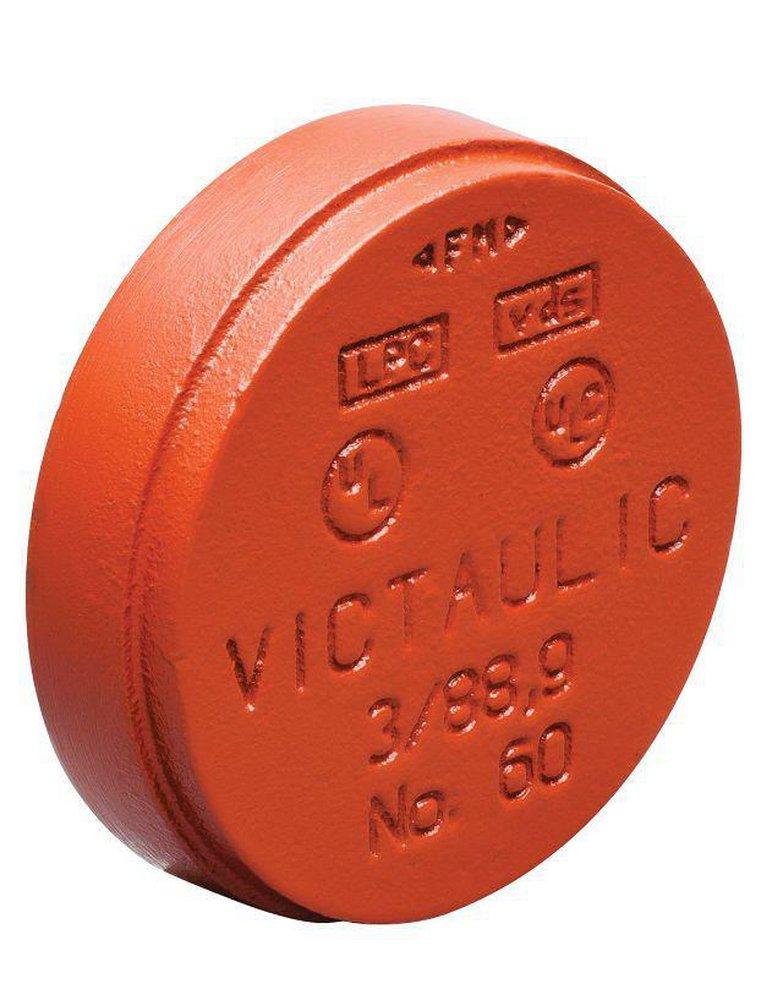

Victaulic No. 60 Grooved End Cap, Ductile Iron

SKU 0012317
Brand Victaulic
Availability:
0 in stock. Available on backorder
$0.00 - $0.00
$0.00
$38.95
$38.60 - $280.00
$38.95

Product Images

Images are for representation only and may differ from the actual product.

Size 1-1/2"

Questions about this product?

Victaulic No. 60 grooved end cap closes the end of a compatible OGS grooved pipe run. This selection uses orange-enamel ductile iron and Victaulic Original Groove System (OGS) connections.

The cap forms a removable end closure when installed with a suitable grooved coupling. Choose the size to match the pipe outside diameter and groove system, and confirm the coupling arrangement before ordering.

Fit the connection to your piping layout

Feature Benefit
Grooved closure Terminates a grooved pipe without a welded end cap.
OGS grooved connection Joins matching Victaulic grooved pipe and components with a suitable coupling.
Separate coupling selection Lets you choose the joint and gasket for the intended service.

Technical specifications

Specification Detail
Manufacturer / model Victaulic No. 60
Configuration Single OGS grooved end
Body Ductile iron, ASTM A536 Grade 65-45-12
Finish Orange enamel
Groove system Victaulic OGS
Pressure selection Standard fitting ratings follow Victaulic Style 77 coupling ratings; check the complete assembly and pipe conditions.

Select the correct size and part number

Nominal pipe size Manufacturer part number
1-1/2" F014060P00
2" F020060P00
2-1/2" F024060P00
3" F030060P00
4" F040060P00
6" F060060P00
8" F080060P00

Before ordering

When connecting a wafer- or lug-type butterfly valve directly with a Style 741 or 743 flange adapter, check the valve disc clearance against the fitting inside diameter.

Fitting only; select compatible couplings and gaskets separately. Nominal pipe size is not the measured outside diameter. Do not mix OGS parts with a different groove profile or plain-end coupling arrangement.

Do not remove an end cap from a pressurized line. Follow Victaulic I-ENDCAP safety instructions.

Check What to confirm
Vacuum restriction Do not use No. 60 caps for vacuum service with Style 72 or Style 750 couplings; select the appropriate No. 61 bull plug instead.
Pipe and groove Match nominal size, actual outside diameter and OGS groove dimensions.
Joint components Confirm the coupling, gasket, fluid, temperature and working pressure together.
Layout and clearance Check the fitting dimensions and clearance to adjoining valves or equipment.
Safe service Fully depressurize and drain the line, including isolated branches, before installation or removal. Follow the applicable Victaulic instructions.

Need help selecting the correct grooved end cap? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pipe size, existing part number and application.
