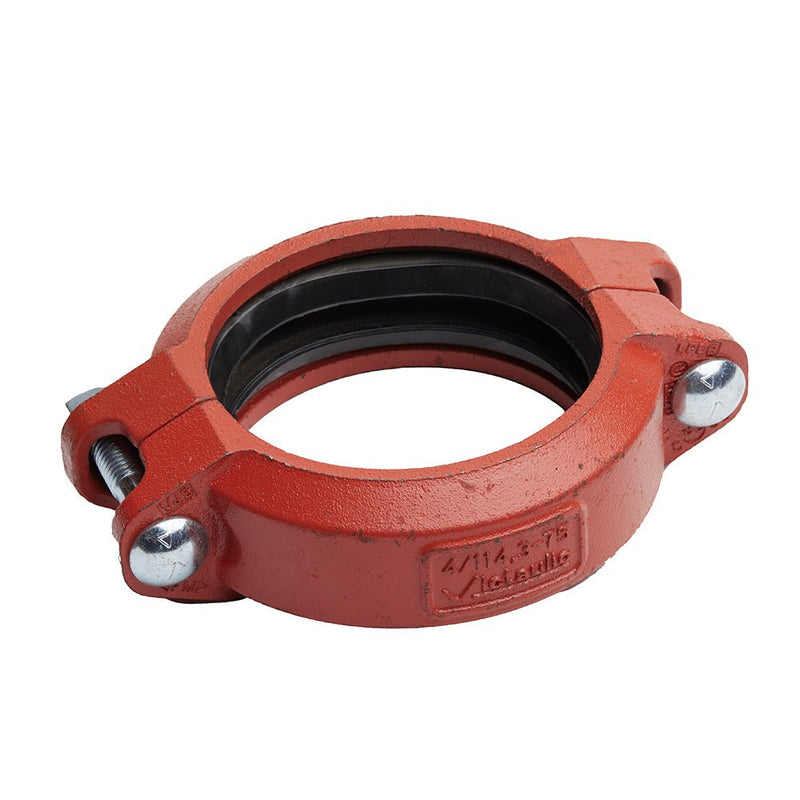

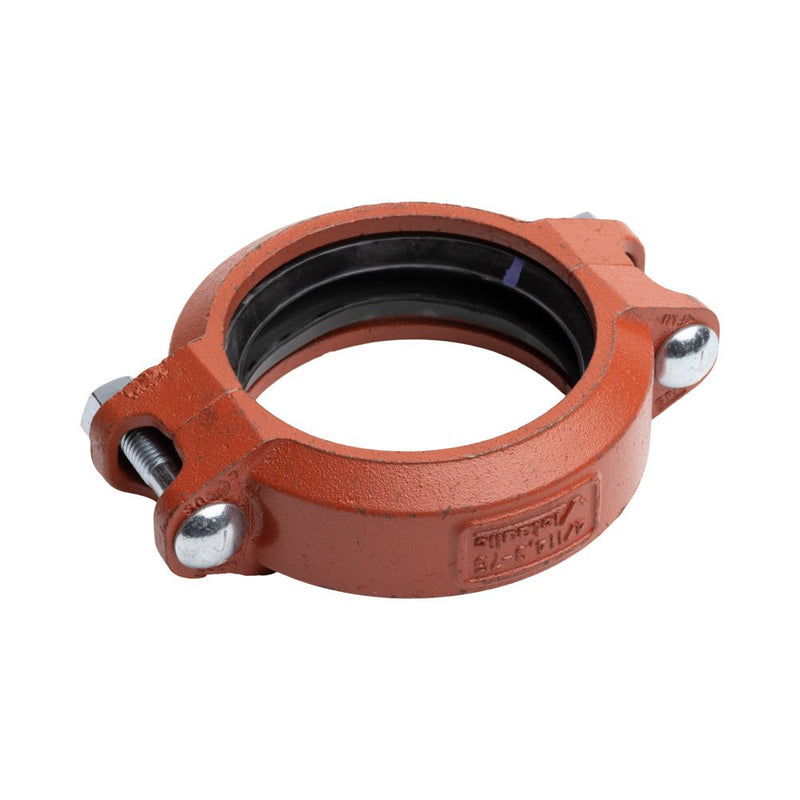

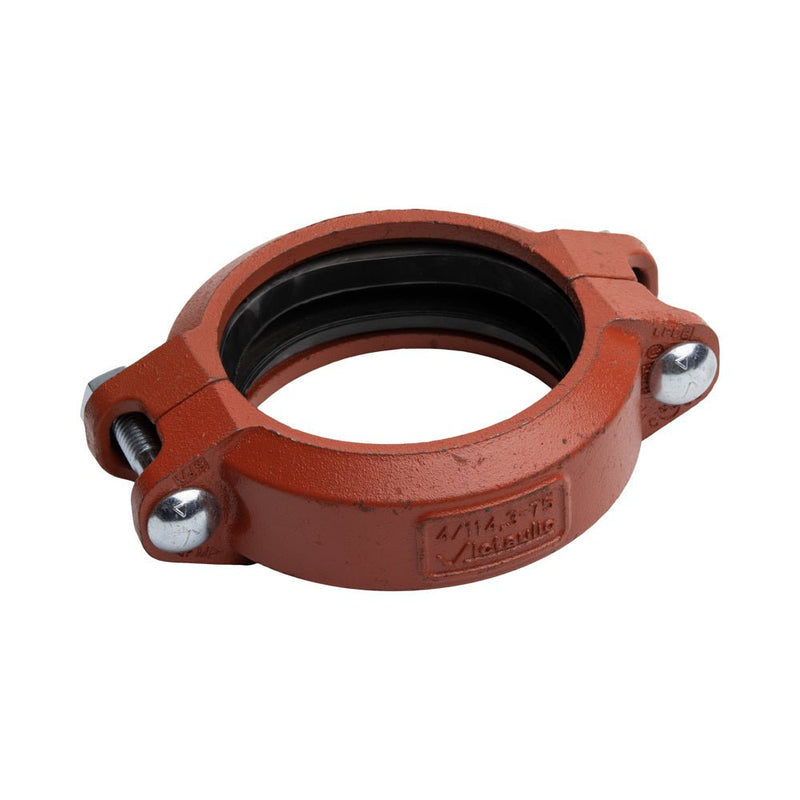

Victaulic Style 75 lightweight flexible grooved coupling joins OGS grooved pipe while allowing controlled expansion, contraction and angular deflection. The offered configurations combine orange-enamel ductile-iron housings with a Grade E EPDM gasket.
Choose a flexible coupling when the system design calls for movement at the joint. The lighter housing design suits moderate-pressure piping, but the actual working limit depends on the pipe size, material and wall thickness.
Choose the joint behavior your system needs
| Feature |
Benefit |
| Flexible joint |
Allows controlled movement rather than locking the joint rigidly. |
| Lightweight housing |
Reduces coupling weight compared with heavier Style 77/177N designs. |
| Grade E gasket |
Supports compatible water-service sealing within its stated limits. |
Technical specifications
| Specification |
Detail |
| Manufacturer / style |
Victaulic Style 75 |
| Housing |
Ductile iron, ASTM A536 Grade 65-45-12 |
| Finish |
Orange enamel |
| Gasket |
Grade E EPDM; green-stripe identification |
| Gasket temperature range |
-30°F to +230°F, subject to fluid compatibility |
| Groove system |
Victaulic Original Groove System (OGS) |
| Maximum working pressure |
500 psi for offered 1-1/2-inch through 4-inch sizes;450 psi for offered 5- and 6-inch sizes |
Pressure and end-load limits are totals from all internal and external loads, based on ANSI B36.10-sized carbon-steel pipe grooved to Victaulic specifications; confirm the pipe material, wall thickness, size and complete joint design. For stainless steel, check Victaulic publications 17.01 and 17.09 rather than applying carbon-steel values directly.
Select the correct size and part number
| Nominal pipe size |
Manufacturer part number |
| 1-1/2" |
L014075PE0 |
| 2" |
L020075PE0 |
| 2-1/2" |
L024075PE0 |
| 3" |
L030075PE0 |
| 4" |
L040075PE0 |
| 5" |
L050075PE0 |
| 6" |
L060075PE0 |
Before ordering
Grade E EPDM is not compatible with petroleum or steam service. Confirm the complete gasket-service recommendation for the fluid and temperature. The coupling includes its specified gasket; adjoining pipe, fittings and system components are separate selections.
| Check |
What to confirm |
| Size and profile |
Match nominal size, actual pipe outside diameter and OGS groove dimensions. |
| Joint function |
Select rigid or flexible behavior to suit the piping design; provide the required supports. |
| Gasket identification |
Select Grade E EPDM as specified here; do not assume Grade EHP or nitrile has identical service limits. |
| Stainless-steel pipe |
Use the required Victaulic RX rolls for light-wall/thin-wall stainless pipe and verify the applicable grooving and performance data. |
| Installation safety |
Depressurize and drain the whole affected system, including isolated branches, before installation, adjustment or opening the joint. Follow Victaulic installation instructions. |
Need help selecting the correct grooved coupling? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pipe size, existing part number and application.
