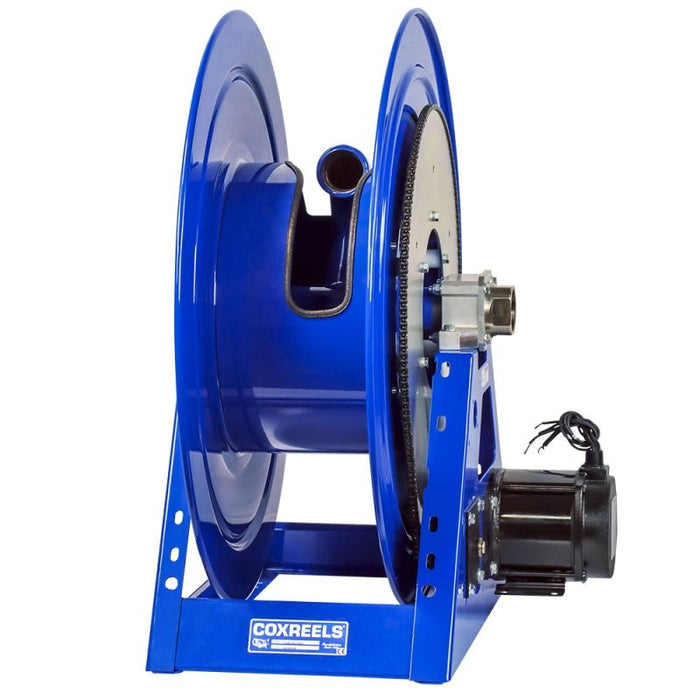

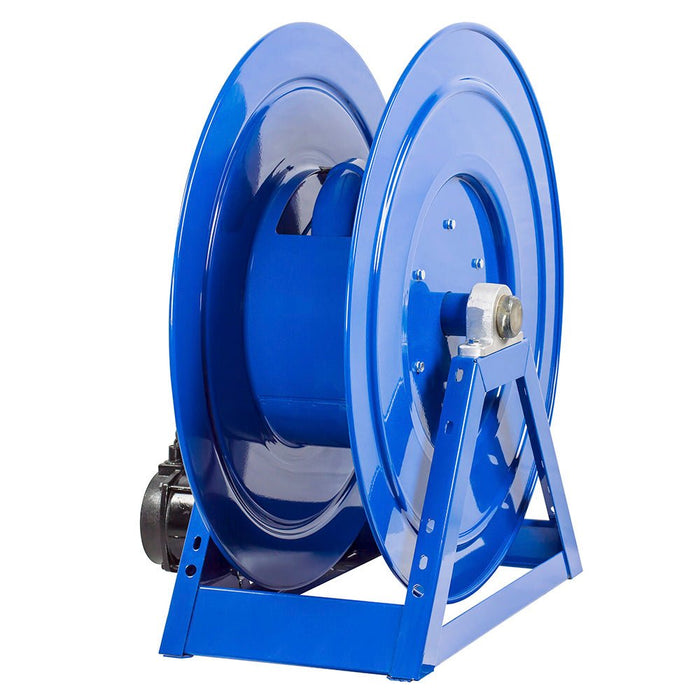

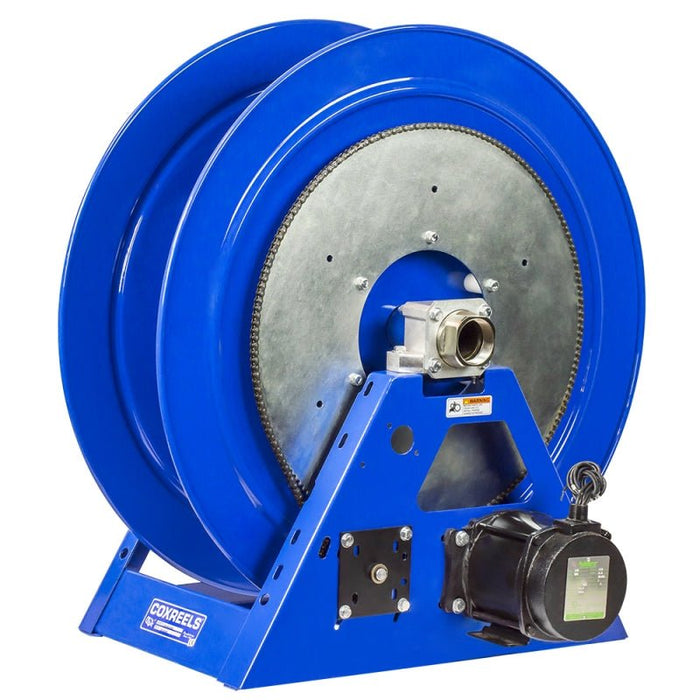

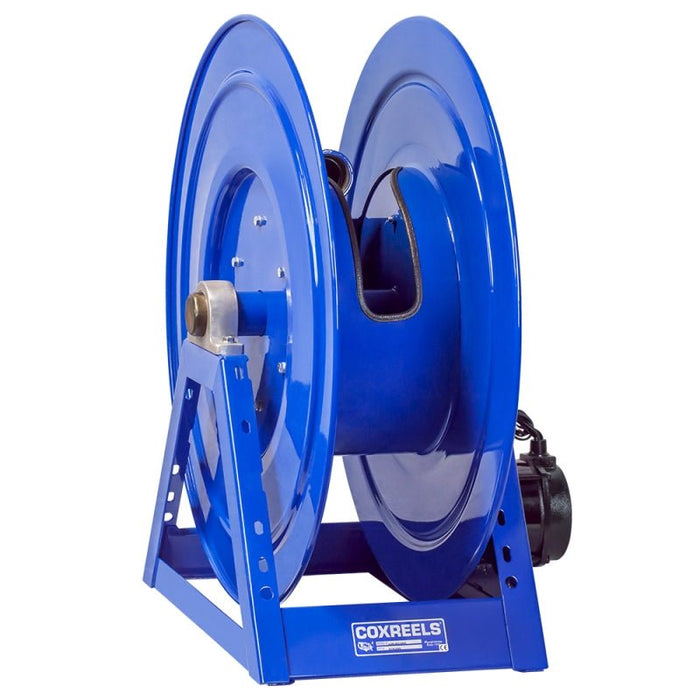

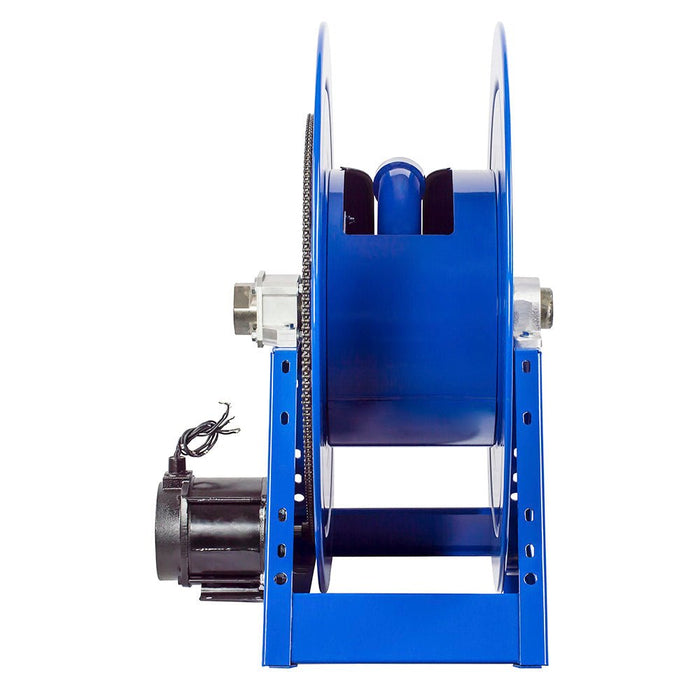

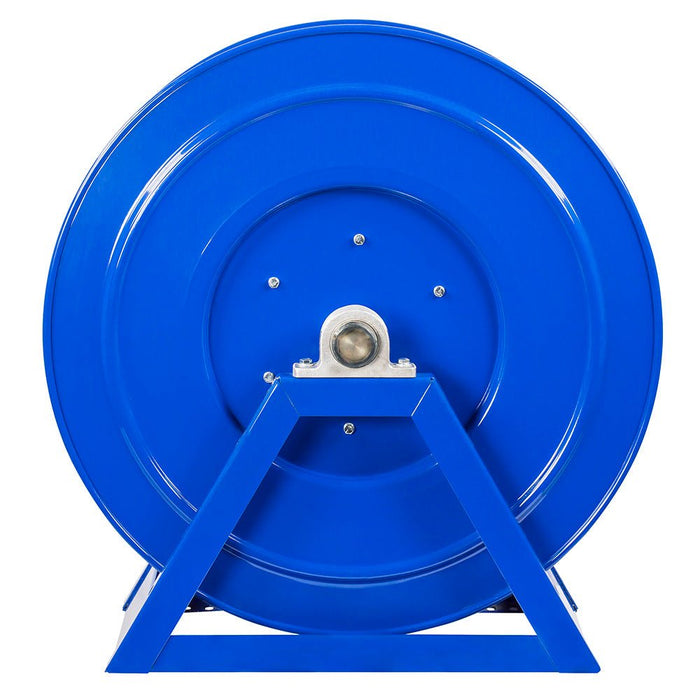

Hose Reel, 2" x 115', Electric Motor Rewind, 12VDC 1/2 HP Explosion Proof Motor, 1195 Series, Coxreels 1195-2032-ED

SKU 0012064
Brand Coxreels
Availability:
1 in stock | Available on backorder
Save 8% Save 8%
$2,115.00
$2,115.00 - $2,115.00
$2,115.00
$1,950.00
$1,950.00 - $1,950.00
$1,950.00

Product Images

Images are for representation only and may differ from the actual product.

COXREELS® 1195 Series motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. COXREELS® exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded "A" frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

** Hose Assembly Sold Separately **
Model Shown: 1195-932-EAV3

Swivel

  • External fluid path with in-line electroless nickel plated steel full-flow NPT swivel inlet.
  • Swivel Seals: NITRILE.

Design & Structure

  • All welded steel “A” frame construction for superior reel structure
  • Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap
  • Robust lubricated horizontal surface mount bearings for easy rotation
  • Adaptor for Victaulic connections available, consult factory
  • Adjustable tension brake to prevent “free-wheeling” during operation

Retract

  • Reliable chain & sprocket drive on motor driven models.
  • Idler gears to reduce drum speed and increase torque.

Signature Features

  • Professional grade heavy duty steel construction.
  • Rolled edges & ribbed discs provide strength & safety.
  • Leading 2-year manufacturer's limited warranty.
  • Made in the U.S.A.

  • SWIVEL - In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
  • "A" FRAME - Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and idler gear 1:3 ratio by default. Motor options available in air, electric, and hydraulic.
