Peterson M826R-7 Lumen X LED Stop / Turn / Tail Light, Red, PL3

Name: Peterson M826R-7 Lumen X LED Stop / Turn / Tail Light, Red, PL3
Brand: Peterson
SKU: 0009311
Price: 14.8 USD
Availability: InStock

SKU 0009311

Brand Peterson

Availability:

86 in stock | Available on backorder

$0.00 - $0.00

$0.00

$14.80

$14.80 - $14.80

$14.80

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

Description

Lamp only — grommet and wiring plug are separate selections.

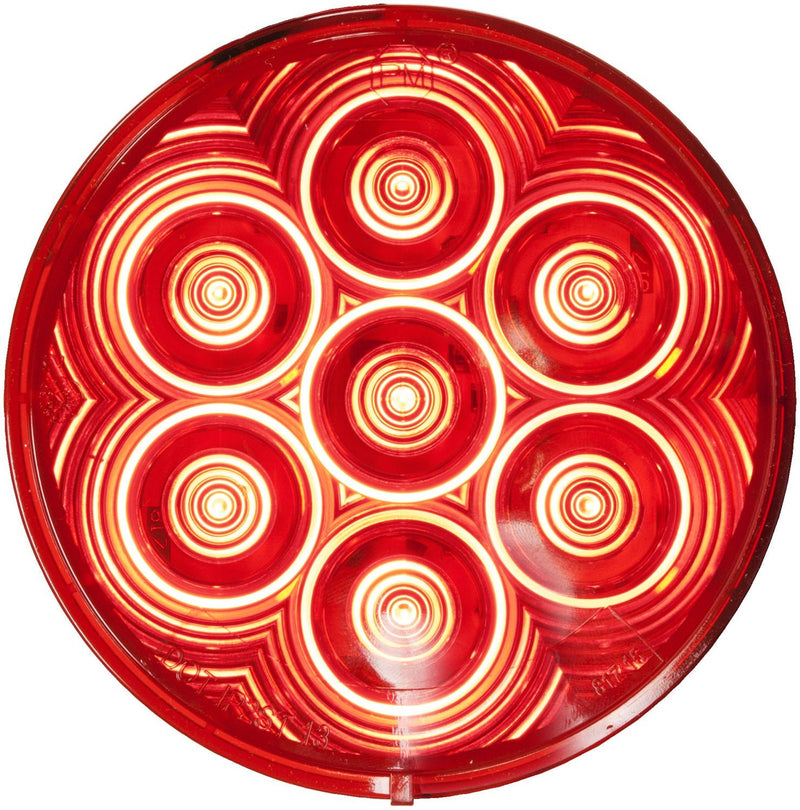

The Peterson M826R-7 Lumen X LED stop/turn/tail light combines three rear-lighting functions in a red, seven-diode lamp. It uses the nominal 4-inch round grommet-mount format with an actual lamp diameter of 4.25 inches.

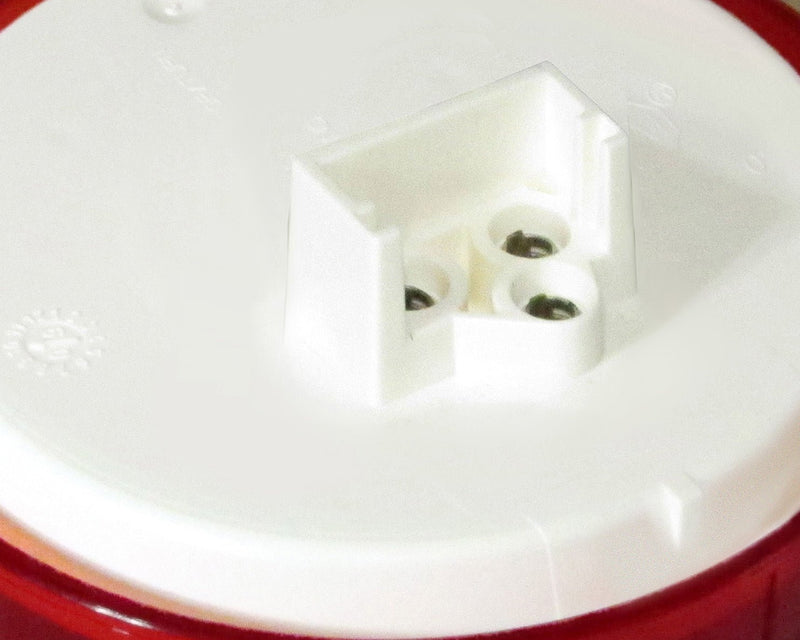

An integrated PL3 socket connects the lamp to a matching rear-lighting harness. Choose this model when replacing a compatible red stop/turn/tail lamp, not a white backup lamp or an AMP-connected assembly.

Three rear-lighting functions in one lamp

Feature	Benefit
Stop, turn and tail functions	Provides the specified rear signaling functions in one lamp assembly.
Integrated PL3 socket	Connects to a matching PL3 wiring plug.
Grommet-mount format	Supports replacement within a compatible round recessed mount.

Technical specifications

Specification	Detail
Part number	M826R-7
Light source	Lumen X LED; 7 diodes
Color	Red light and red lens
Nominal size / actual diameter	4-inch class / 4.25 inches
Depth	1.49 inches
Electrical supply	12 V nominal; 9–16 V operating range
Connection	PL3
Integral reflector	None

Complete the mounting and connection

Component	Compatible selection
Mounting grommet	Peterson 426-18 or B426-18; separate selection.
PL3 wiring plug	Peterson 431-491 or B431-491; separate selection.
Installation kit	M826R-7 is not the 826KR-7 kit; do not assume a grommet or plug is included.

Before ordering

Check	What to confirm
Electrical system	Use the specified 12 V supply; this -7 model is not a 24 V multi-volt lamp.
Lamp function	Match red stop/turn/tail operation and the required vehicle position.
Mounting fit	Check the grommet, panel opening and rear clearance against the actual lamp dimensions.
Harness and layout	Confirm the PL3 connector and circuit assignments, then check the complete lighting and reflector layout.

Need help selecting the correct replacement light? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your existing lamp number, connector photos and mounting dimensions.
