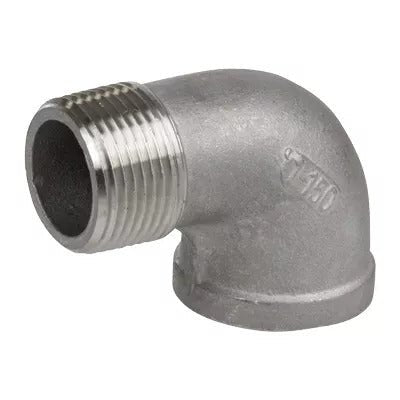

Threaded 90° Street Elbow, Male NPT x Female NPT, 316 Stainless Steel 150#, Smith-Cooper S3116SE - UnitedBuilt Equipment

Smith-Cooper S3116SE 316 Stainless Steel 90° Street Elbow, Male x Female NPT

SKU 0012220
Brand Smith-Cooper
Availability:
44 in stock | Available on backorder
$0.00 - $0.00
$0.00
$6.59
$6.59 - $178.00
$6.59

Product Images

Images are for representation only and may differ from the actual product.

Size 1/2"

Questions about this product?

The Smith-Cooper S3116SE 90° street elbow changes the direction of a threaded pipe connection while joining a female port to a male-threaded pipe or fitting. Its male NPT x female NPT ends provide a direct right-angle connection without adding a separate nipple between the elbow and the female port.

This Class 150 heavy-pattern elbow is made from cast 316 stainless steel. Choose the nominal pipe size that matches both mating connections, then use the corresponding manufacturer part number below to confirm your selection. This is a non-MSS heavy-pattern fitting; do not assume it has the same dimensions as an MSS-pattern elbow.

A right-angle connection with fewer pieces

The street-elbow arrangement is useful where a female port needs a change in direction before receiving a male-threaded component. Check the surrounding clearance and final connection orientation when replacing an existing elbow.

Feature Benefit
90° street-elbow configuration Changes pipe direction with one male and one female connection.
Male NPT end Connects directly to a matching female NPT port without an additional nipple.
Female NPT end Receives a matching male NPT pipe or fitting.
316 stainless steel casting Provides a stainless steel fitting option where the system calls for this material.

Technical specifications

Specification Detail
Brand and family Smith-Cooper / SCI S3116SE
Fitting type 90° street elbow
Connections Male NPT x female NPT, same nominal size
Material Cast 316 stainless steel; ASTM A351 grade CF8M
Thread standard ASME B1.20.1
Class and pattern Class 150; heavy pattern, non-MSS
Available nominal sizes 1/2", 1-1/2", 2", 2-1/2" and 3"

Select the correct size

Each selection is a single elbow in the chosen size, not an assortment. Match the size and full part number together; a different suffix identifies a different nominal pipe size.

Nominal size Manufacturer part number
1/2" S3116SE004
1-1/2" S3116SE014
2" S3116SE020
2-1/2" S3116SE024
3" S3116SE030

Before ordering

Check What to confirm
Mating threads Both mating components must match the selected nominal NPT size and the required male/female arrangement.
Fit and clearance Compare the replacement envelope and wrench access. Heavy-pattern dimensions and weights can vary; do not substitute MSS dimensions.
Service conditions Confirm fluid compatibility, working pressure and temperature for the complete assembly. Class 150 is not a universal 150 psi operating limit.
Installation and sealing Use the applicable stainless NPT assembly and thread-sealing instructions; check engagement and final orientation.
Special services Confirm any required potable-water, gas or other application approvals before ordering for those services.

Need help selecting the correct street elbow? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your connection size, existing part number and application.
