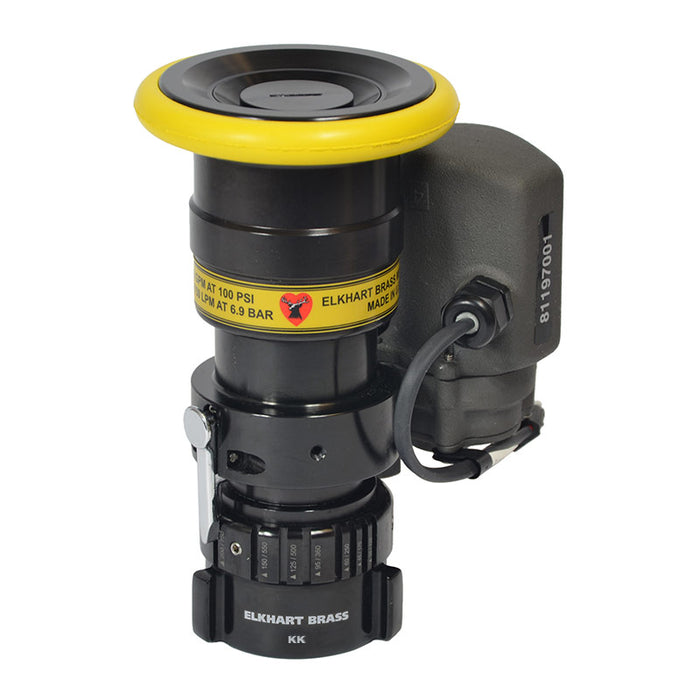

The Elkhart Brass 6000-200E is an electrically actuated selectable-flow master stream nozzle designed for the original Sidewinder EXM electric water monitor system. Featuring a 2-1/2" FNHT inlet and selectable flow rates from 15 to 200 GPM at 100 PSI, it provides versatile water delivery for water trucks, construction and mining equipment, dust-control systems, and other vehicle-mounted water cannon applications.
The nozzle provides eight manually selectable flow settings: 15, 30, 45, 60, 95, 125, 150, and 200 GPM, along with a flush setting. A quick-turn locking selector ring allows the required flow to be selected directly at the nozzle.
Electric actuation provides remote straight-stream-to-fog pattern control through the compatible Sidewinder EXM control system. Available patterns include straight stream, 30° narrow fog, and 90° wide fog. A manual override provides an additional means of adjusting the nozzle pattern when required.
The 6000-200E is a selectable-flow nozzle, not an automatic nozzle. The desired flow rate is mechanically selected at the nozzle rather than automatically changing as available water flow or pressure varies.
Compatibility Note: Elkhart part 06000201 is the original 6000-200E configuration used with the Sidewinder EXM platform. For systems requiring the newer Deutsch-connected 6000-200E(D) configuration, see Elkhart part 06000202.
Key Features
| Feature |
Details |
| Selectable Flow |
Eight selectable flow settings from 15 to 200 GPM |
| Wide Flow Range |
15, 30, 45, 60, 95, 125, 150, or 200 GPM |
| Rated Pressure |
Flow settings rated at 100 PSI |
| Electric Pattern Control |
Remote adjustment from straight stream through wide fog |
| Adjustable Fog-to-Stream |
Straight stream, 30° narrow fog, and 90° wide fog |
| Locking Flow Selector |
Quick-turn locking ring allows manual flow selection |
| Flush Setting |
Dedicated flush position for clearing debris from the nozzle |
| Sidewinder EXM |
Designed for use with the original Elkhart Brass Sidewinder EXM system |
| Manual Override |
Allows manual nozzle pattern adjustment when required |
| Master Stream Design |
Designed for vehicle-mounted water cannon and monitor applications |
| Aluminum Construction |
Lightweight, durable construction for mobile equipment |
Specifications
| Attribute |
Details |
| Manufacturer |
Elkhart Brass |
| Model |
6000-200E |
| Manufacturer Part Number |
06000201 |
| Product Type |
Electric Selectable-Flow Master Stream Nozzle |
| Flow Type |
Selectable / Constant Flow |
| Selectable Flow Rates |
15 / 30 / 45 / 60 / 95 / 125 / 150 / 200 GPM |
| Flush Setting |
Yes |
| Operating Pressure |
100 PSI |
| Inlet |
2-1/2" FNHT |
| Spray Pattern |
Straight Stream / 30° Narrow Fog / 90° Wide Fog |
| Pattern Control |
Electric |
| Flow Selection |
Manual Locking Selector Ring |
| Manual Override |
Yes |
| Control Platform |
Sidewinder EXM |
| Construction |
Lightweight Aluminum |
| Approximate Product Weight |
4.7 lb |
Sidewinder EXM Control Integration
The 6000-200E was developed for use with the Elkhart Brass Sidewinder EXM monitor platform. Its electrically actuated pattern mechanism allows the operator to control nozzle pattern remotely through the compatible EXM monitor controls.
The control system provides remote adjustment between straight stream and fog, allowing operators to change spray characteristics from the cab or other control location without manually repositioning the nozzle.
Flow rate is selected mechanically at the nozzle using the locking flow-selector ring and does not change electronically through the EXM controller.
For newer installations using the Deutsch-connected 6000-200E(D) nozzle configuration, use Elkhart 06000202.
Applications
| Application |
Use Case |
| Water Trucks |
Adjustable water cannon nozzle for roadway watering, dust suppression, and washdown |
| Sidewinder EXM Systems |
Replacement or service nozzle for compatible original Sidewinder EXM installations |
| Dust Control Trucks |
Multiple flow settings allow water output to be matched to operating conditions |
| Mining Equipment |
Remote pattern adjustment for mobile dust-control and water-delivery systems |
| Construction Water Trucks |
Straight-stream and fog patterns for haul roads and jobsites |
| Off-Road Water Equipment |
Electrically controlled nozzle for compatible vocational water systems |
| Fire Apparatus |
Selectable-flow master stream nozzle for compatible Sidewinder EXM monitor installations |
