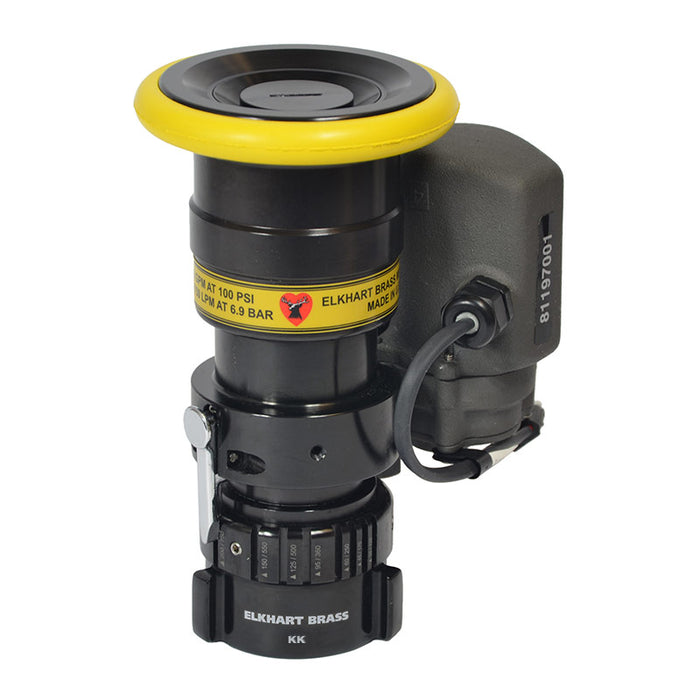

The Elkhart Brass 6000-200E(D) is an electrically actuated, selectable-flow master stream nozzle designed for use with the BrushHawk 8495 electric water monitor. Featuring a 1-1/2" FNHT inlet, Deutsch electrical connector, and selectable flow rates from 15 to 200 GPM at 100 PSI, it provides flexible water delivery for water trucks, mining and construction equipment, dust-control systems, and other mobile water applications.
A quick-turn locking flow selector allows the operator to select 15, 30, 45, 95, 125, 150, or 200 GPM at 100 PSI to match the required water output. The nozzle is selectable-flow rather than automatic—the desired flow rate is mechanically selected at the nozzle.
When connected to the BrushHawk control system, the electrically actuated nozzle provides remote straight-stream-to-fog pattern adjustment from the BrushHawk joystick. This allows the operator to change spray pattern without leaving the cab or operating position.
The 6000-200E(D) combines lightweight aluminum construction, wide flow capability, electric pattern control, manual override, and compatibility with foam concentrate for demanding vehicle-mounted water delivery applications.
Key Features
| Feature |
Details |
| Selectable Flow |
Selectable water flow from 15 to 200 GPM |
| Flow Settings |
15, 30, 45, 95, 125, 150, or 200 GPM at 100 PSI |
| BrushHawk 8495 Compatible |
Designed for use with the Elkhart Brass BrushHawk electric monitor |
| Deutsch Connector |
Electrical connection for the compatible BrushHawk control system |
| Electric Pattern Control |
Remote straight-stream-to-fog adjustment through the BrushHawk joystick |
| Adjustable Fog-to-Stream |
Straight stream through full fog spray patterns |
| Locking Flow Selector |
Quick-turn locking selector ring for setting water flow at the nozzle |
| Manual Override |
Allows manual nozzle pattern adjustment when required |
| Foam Compatible |
Suitable for use with foam concentrate |
| Master Stream Design |
Designed for vehicle-mounted water cannon and monitor applications |
| Lightweight Construction |
Durable aluminum construction for mobile equipment |
Specifications
| Attribute |
Details |
| Manufacturer |
Elkhart Brass |
| Model |
6000-200E(D) |
| Manufacturer Part Number |
06000212 |
| Product Type |
Electric Selectable-Flow Master Stream Nozzle |
| Compatible Monitor |
BrushHawk 8495 |
| Flow Type |
Selectable |
| Selectable Flow Rates |
15 / 30 / 45 / 95 / 125 / 150 / 200 GPM |
| Rated Operating Pressure |
100 PSI |
| Inlet |
1-1/2" FNHT |
| Pattern Control |
Electric |
| Spray Pattern |
Adjustable Straight Stream to Fog |
| Electrical Connection |
Deutsch Connector |
| Flow Selection |
Quick-Turn Locking Selector Ring |
| Manual Override |
Yes |
| Foam Concentrate Compatible |
Yes |
| Construction |
Lightweight Aluminum |
| Product Weight |
4.29 lb |
BrushHawk Control Integration
The 6000-200E(D) is designed to integrate with the Elkhart Brass BrushHawk 8495 monitor and its compatible control system. The Deutsch electrical connection allows the nozzle's pattern actuator to interface with the BrushHawk system.
Using the compatible BrushHawk joystick, the operator can electrically adjust the nozzle from straight stream through fog using the nozzle-pattern rocker control while also controlling monitor position from the same operating location.
Flow rate is selected mechanically using the locking selector ring on the nozzle and is not electronically or automatically varied by the BrushHawk control system.
BrushHawk monitor, joystick, CAN harnesses, water valve, and other system components are sold separately unless specifically included with the selected configuration.
Applications
| Application |
Use Case |
| Water Trucks |
Remote-controlled cannon nozzle for dust suppression, roadway watering, and washdown |
| BrushHawk 8495 Systems |
Selectable-flow electric nozzle for compatible BrushHawk monitor installations |
| Dust Control Trucks |
Multiple flow settings for varying dust-suppression requirements |
| Mining Equipment |
Remote pattern control for severe-duty water delivery applications |
| Construction Water Trucks |
Adjustable water delivery for haul roads, jobsites, and earthmoving operations |
| Off-Road Water Equipment |
Electrically controlled nozzle for compatible vocational water systems |
| Foam Applications |
Compatible with foam concentrate where required |
