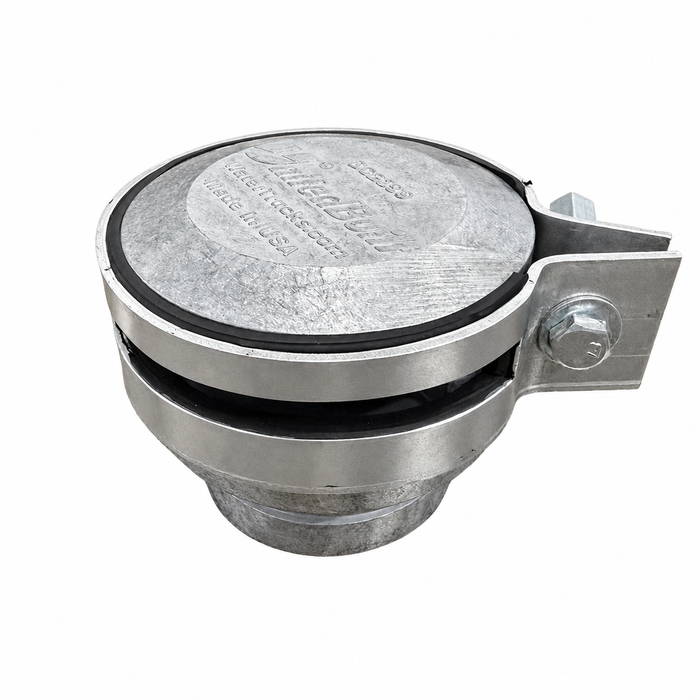

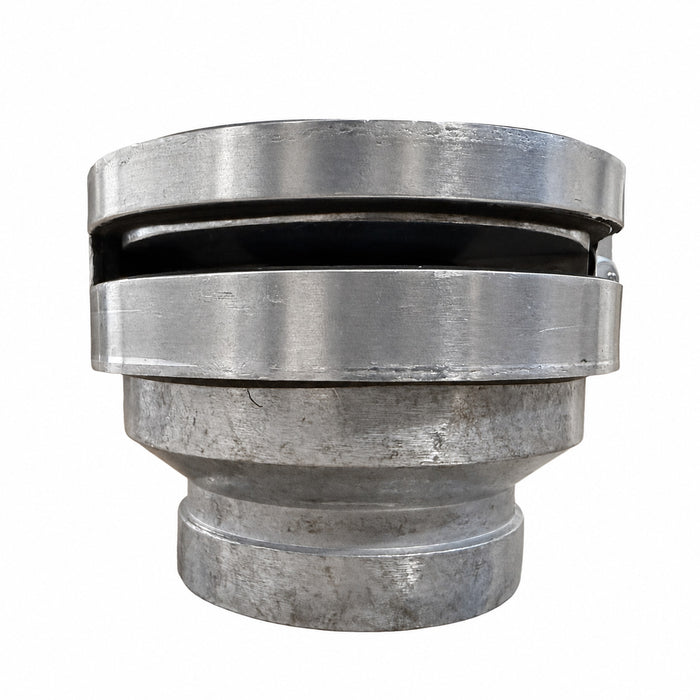

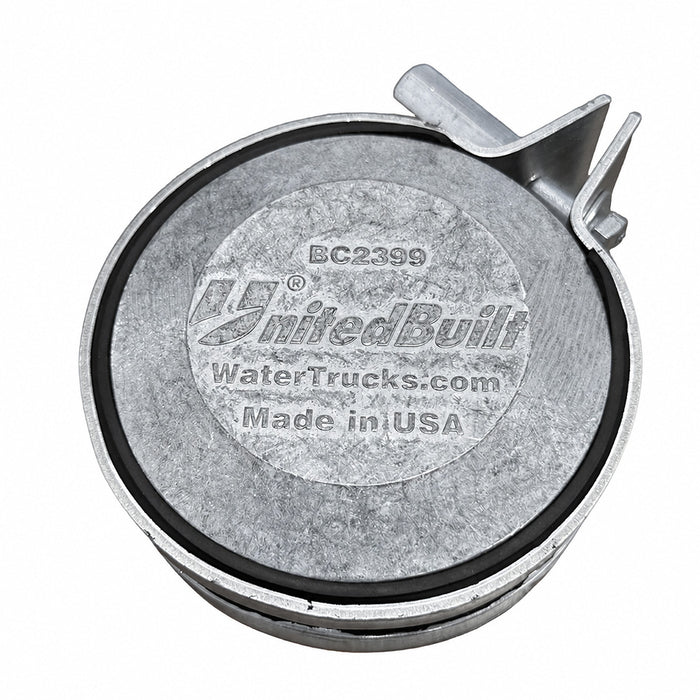

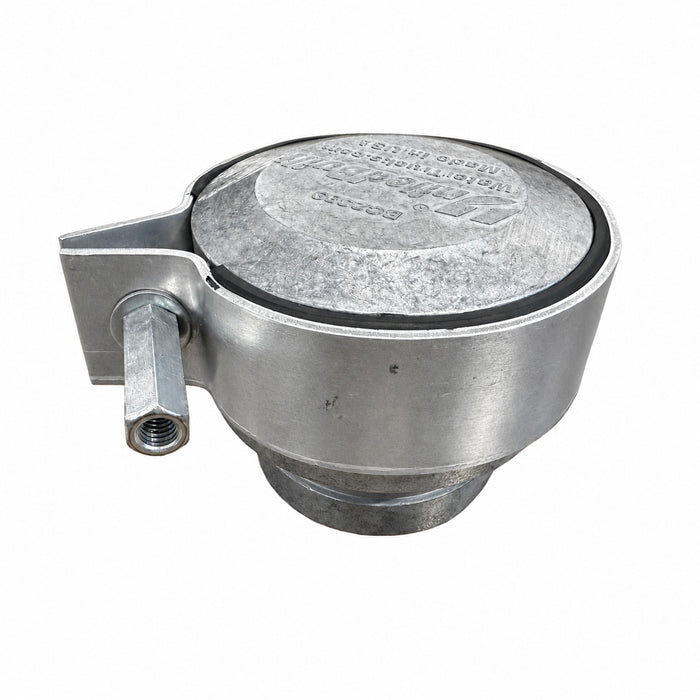

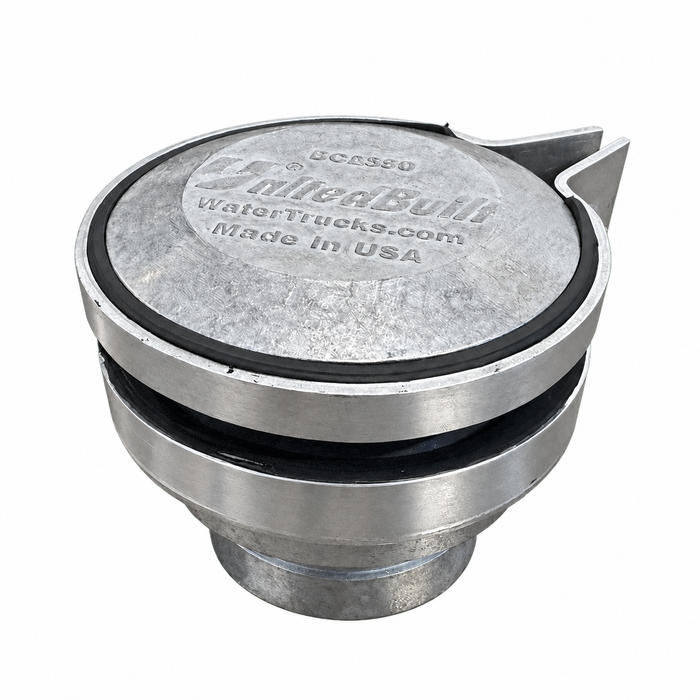

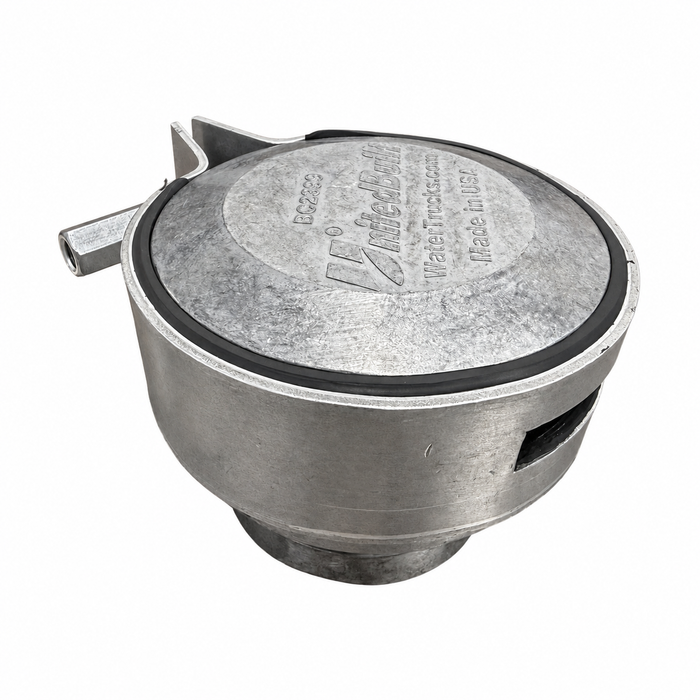

The UnitedBuilt BC2399 Adjustable Fan Spray Head is our original adjustable water truck spray nozzle, redesigned for improved durability, consistency, and water flow. Designed specifically for water truck spray systems, the BC2399 combines a heavy-duty die-cast aluminum body with an adjustable band that allows operators to change the spray pattern from a narrower, more concentrated pattern to a wider fan spray.
The new and improved BC2399 is die cast in the USA from A380 aluminum alloy, producing a heavier-duty, more consistent spray head you can see and feel. The redesigned casting retains the proven adjustable-band operation of the original UnitedBuilt design while substantially improving the construction of the spray head for demanding water truck and dust-control applications.
Inside, UnitedBuilt redesigned the water passage with a 2.7" internal flow cavity and a more gradual 90-degree transition. Instead of directing incoming water abruptly toward the roof of the spray head, the revised internal geometry provides a smoother transition toward the adjustable outlet. The new flow path is designed to reduce unnecessary internal water deflection and promote better flow through the spray head.

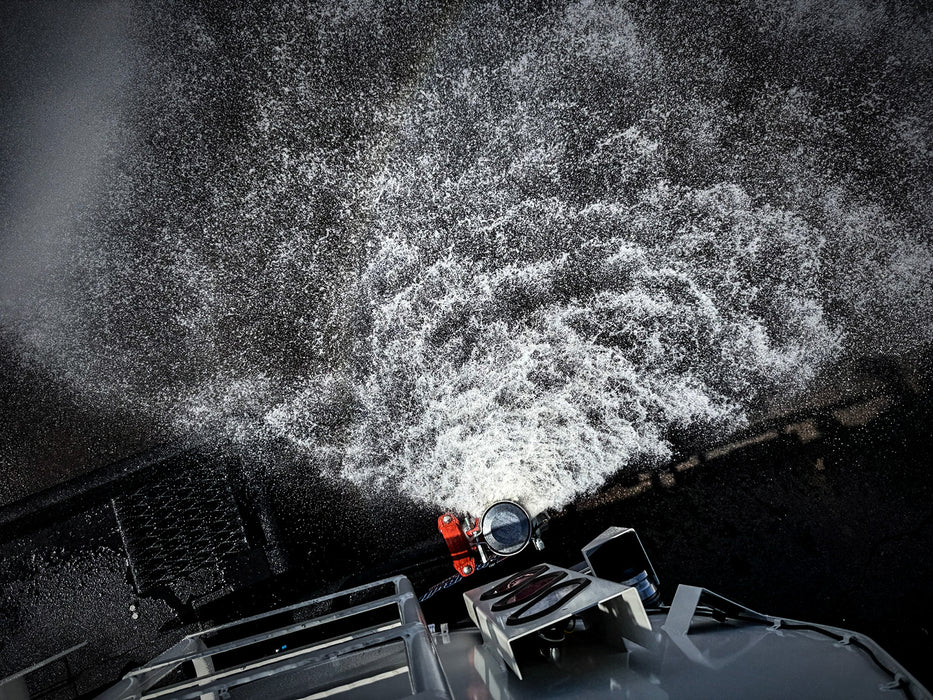

The adjustable band gives operators control over the discharge pattern to suit changing jobsite conditions. Adjust the nozzle from a narrower spray pattern toward a wider fan pattern depending on the coverage and spray characteristics required for the application.

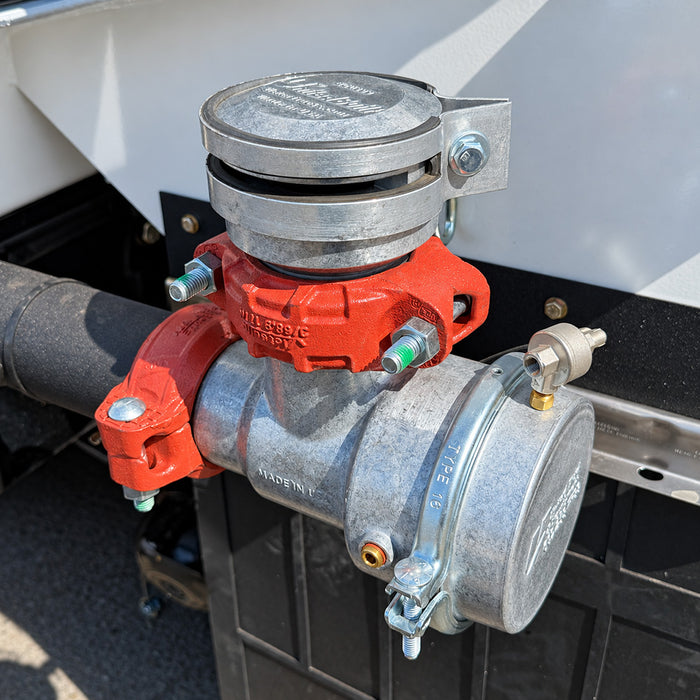

Originally designed as the spray head for the UnitedBuilt AV1100 air-operated spray valve, the BC2399 uses a standard 3" grooved connection and can also be used with many compatible 3" grooved water truck spray valves and plumbing systems. The grooved connection allows quick installation and removal for service or replacement.
For water trucks operating in construction, mining, roadwork, dust suppression, and other demanding environments, the redesigned BC2399 delivers the versatility of UnitedBuilt's original adjustable spray head in a stronger, more refined design.
UnitedBuilt Original. Redesigned and die cast in the USA.
Key Features
| UnitedBuilt Original |
Original UnitedBuilt BC2399 adjustable fan spray head design |
| New & Improved Design |
Redesigned for improved durability, consistency, and water flow |
| Heavy-Duty Construction |
Substantially improved die-cast aluminum body designed for demanding water truck service |
| A380 Aluminum |
Die cast from raw A380 aluminum alloy |
| Die Cast in USA |
New BC2399 body is die cast in the United States |
| Improved Internal Flow Path |
2.7" internal cavity with a gradual 90° transition designed to promote smoother water flow |
| Adjustable Fan Pattern |
Adjustable band changes the discharge pattern from narrower to wider coverage |
| 3" Grooved Connection |
Common water truck connection for quick installation and service |
| AV1100 Compatibility |
Designed specifically for use with the UnitedBuilt AV1100 spray valve |
| Broad Compatibility |
Compatible with many water truck spray valves using a 3" grooved connection |
Specifications
| Manufacturer |
UnitedBuilt |
| Manufacturer # |
BC2399 |
| UnitedBuilt SKU |
0003484 |
| Product Type |
Adjustable Fan Spray Head / Spray Nozzle |
| Body Material |
A380 Die-Cast Aluminum |
| Connection |
3" Groove |
| Nozzle Type |
Adjustable Fan Spray |
| Pattern Adjustment |
Adjustable Band |
| Internal Flow Cavity |
2.7" |
| Primary Valve |
UnitedBuilt AV1100 Spray Valve |
| Application |
Water Truck Spray Systems |
| Country of Die Casting |
USA |
Applications
| Water Trucks |
Adjustable spray coverage for front and rear water truck spray systems |
| Dust Control |
Adjustable water distribution for construction, mining, roadwork, and jobsite dust suppression |
| UnitedBuilt AV1100 |
Designed as the adjustable spray head for the UnitedBuilt AV1100 spray valve |
| 3" Grooved Spray Systems |
Replacement or new-install spray head for compatible 3" grooved water truck valves |
| Construction Water Trucks |
Adjustable fan pattern for changing coverage requirements and operating conditions |
