4000 Gallon U-Kit UnitedBuilt 6V-15 Vision Tank - Ready by 5/23
Tank Specifications
Product Type
Water Tank Kit
Tank Model
6V15
Tank Length
15'
Capacity
4,000 Gallons
Tank Series
Vision Tank (Modified Trapezoid)
Tank Profile
6V
Baffles
(2) 3/16” Curved, Fitted & Welded All Sides 100%
Heads
(2) 3/16” Curved, Fitted & Welded All Sides 100%
Belly Plate
Full-Length Reinforcement Preventing Premature Cracking & Deterioration Premium Quality 3/16"
Exterior Finish
Sandblasted and Primed
Interior Finish
Sandblasted and Epoxy Lined
Water Pump
UnitedBuilt M3ZRMS Cast Iron 4x3 Ceramic Mechanical Seal (Ships Packed)
Front Spray
(2) AV1100 with BC2399 Adjustable Fan Spray Pattern Nozzles (Ships Packed)
Side Spray
(2) AV1100 with BC2179 Side Nozzles on 90 Degree Elbows (Ships Packed)
Rear Spray
(2) AV1100 with BC2399 Adjustable Fan Spray Pattern Nozzles (Ships Packed)
Plumbing
Schedule 40 black pipe with Victaulic groove couplings and fittings, not hose plumbing (Ships Packed)
Control Console
Cab Mounted Console to Independently Air Operate Each Spray Valve (Ships Packed)

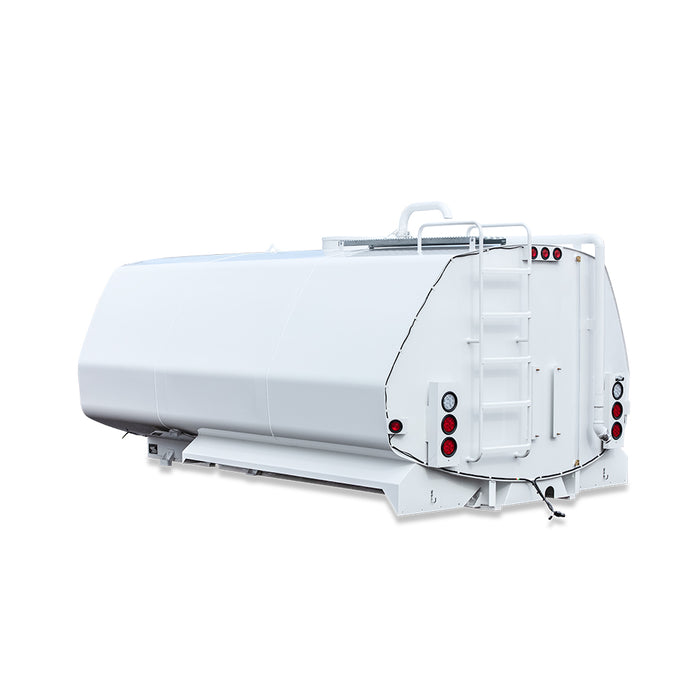

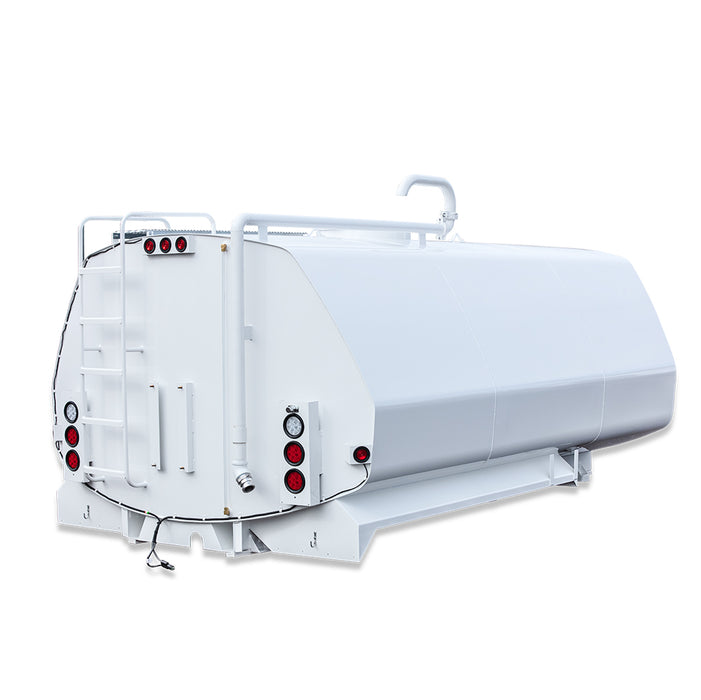

Product Images
Images are for representation only and may differ from the actual product.
