Power Take Off (PTO), Powershift Hydraulic (Hot Shift), Electric 12V Over Hydraulic, 10-Bolt, SAE Type 1 1/4" Round Shaft, Input Gear: 63 - Allison, Internal PTO Ratio 96%, Assembly Arrangement Left Forward, Eaton Bezares PT3252PME633SE, 3252 Series

Power Take Off (PTO), Powershift Hydraulic (Hot Shift), Electric 12V Over Hydraulic, 10-Bolt, SAE Type 1 1/4" Round Shaft, Input Gear: 63 - Allison, Internal PTO Ratio 96%, Assembly Arrangement Left Forward, Eaton Bezares PT3252PME633SE, 3252 Series

SKU 0011484
Brand EATON
Availability:
37 in stock | Available on backorder
Save 20% Save 20%
$3,115.07
$3,115.07 - $3,115.07
$3,115.07
$2,490.00
$2,490.00 - $2,490.00
$2,490.00

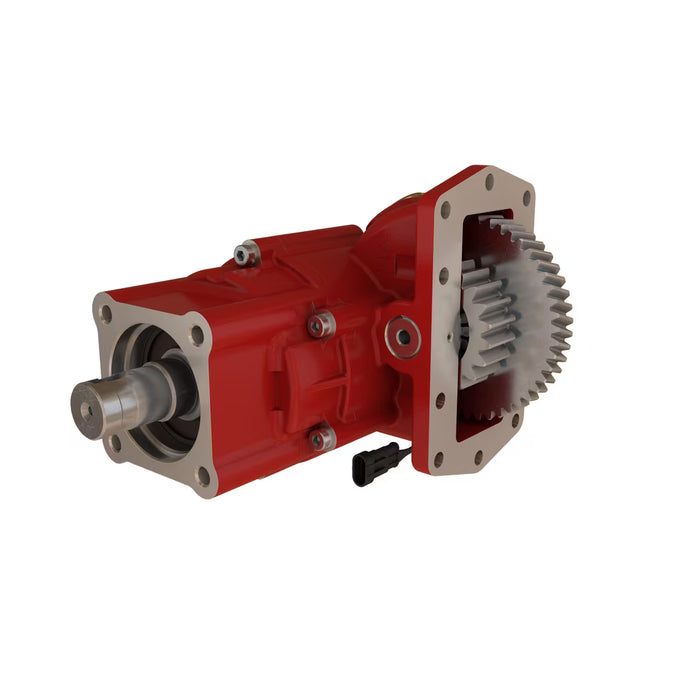

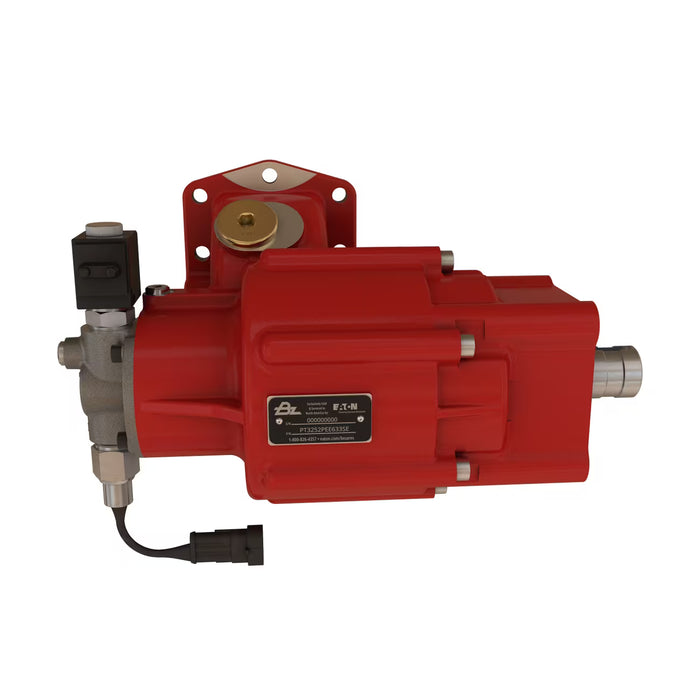

Product Images

Images are for representation only and may differ from the actual product.

PT3252PME633SE-Eaton Bezares 3252 Power Take Off , 3252 Series Series PTO , Input Gear: 63 - Allison , Internal Ratio: 0.96 , Shifter Type: E - Electric 12V. Over hydraulic

Please refer to Eaton Bezares PTO Application Catalog for Engine Speed % based on your transmission.

  • Internally lubricated for ease of installation, improved bearing life and cooler operation
  • Clutch pack material is designed to provide smooth engagement and long life
  • Higher torque rating than competitors within the same PTO segment

General specifications

Product Name
Eaton Bezares 3252 Series PTO
Catalog Number
PT3252PME633SE
UPC
840379309928
Certifications
Not Applicable
Product Type
PTO



Product specifications

Bolt count
10 Bolt
Series
Allison
Versions (available options)
G - Greasable Idler Shaft
Intermittent torque - max
320 Ft-Lb
Intermittent power - max
61 HP
Continuous torque - max
230 Ft-Lb
Continuous power - max
44 HP
Output type
SE - SAE Type 1 1/4" round shaft
Assembly arrangement
3 - Left, forward
Shifter type
E - Electric 12V. Over hydraulic
Input gear
63 - Allison
Internal PTO ratio
96%
Transmission model
B300
HD 4560P
MD 3060P
3000 RDS
4000 TRV
HD 4060P
MD 3060P W-TOP OPENING
MD 3560P
HD-4070P
3000 TRV
3500 RDS
4000 MH
MD 3560P W-TOP OPENING
MD 3070PT
3000 MH
3200 TRV
4000 EVS
4500 RDS
4700 OFS
3000 EVS
3500 EVS
B400
4000 RDS
4500 EVS
4800 EVS
4700 EVS
4700 RDS
B500
MD 3066P W-TOP OPENING
MD-3066P
Transmission manufacturer
Allison
Clark
