Seal Kit, AV5293 & 3" Cla-Val, with Spring - UnitedBuilt Equipment

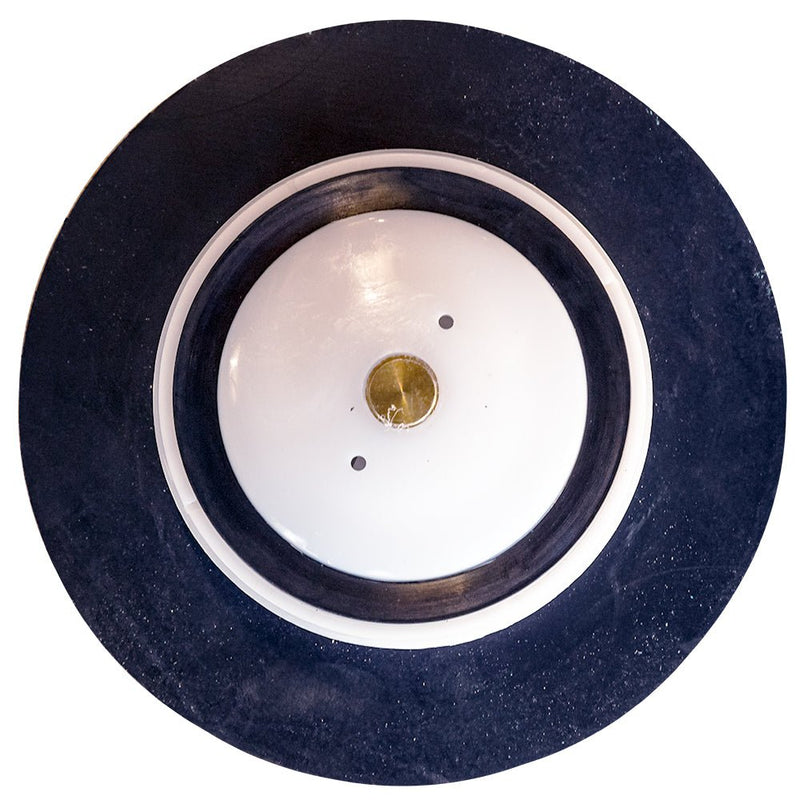

UnitedBuilt U8255705K-S Diaphragm Assembly with Spring, for 3" Cla-Val 81665C & AV5293

SKU K002745
Brand UnitedBuilt
Availability:
22 in stock | Available on backorder
$78.00 - $78.00
$78.00
$78.00
$78.00 - $78.00
$78.00

Product Images

Images are for representation only and may differ from the actual product.

Title: Diaphragm Spring, AV5293 & 3" Cla-Val 81665C (VALINL0300C1106J) + Diaphragm Assembly, No Spring, 3" Cla-Val 81665C & 3" UnitedBuilt AV5293

The UnitedBuilt U8255705K-S Diaphragm Assembly with Spring is a complete replacement internal diaphragm assembly for 3" Cla-Val 81665C and 3" UnitedBuilt AV5293 water truck control valves.

SPRING INCLUDED

This version includes both the U8255705K diaphragm assembly and the UC1106J diaphragm spring, providing the primary sealing and spring components required for servicing compatible air-operated valves.

Designed for water truck spray and discharge systems, this kit provides a practical service solution for restoring valve operation without replacing the complete valve.

Key Features

Feature Details
Complete Service Assembly Includes diaphragm assembly and diaphragm spring
Spring Included Supplied with UnitedBuilt UC1106J diaphragm spring
Dual Compatibility Fits 3" Cla-Val 81665C and UnitedBuilt AV5293 valves
Water Truck Service Suitable for spray and water-control valve repair
Replaceable Internal Assembly Services the valve without complete valve replacement

Specifications

Attribute Details
Brand UnitedBuilt
Manufacturer Part # U8255705K-S
Diaphragm Assembly U8255705K
Diaphragm Spring UC1106J
Product Type Valve Seal Kit / Diaphragm Assembly
Valve Size 3"
Compatible Cla-Val Valve 81665C
Compatible UnitedBuilt Valve AV5293
Spring Included
Listed Weight 1.28 lb

Applications

Application Use Case
Water Truck Spray Valves Repair of compatible air-operated water-control valves
Cla-Val 81665C Service Complete diaphragm and spring replacement
UnitedBuilt AV5293 Service Internal diaphragm assembly replacement
Dust-Control Trucks Maintenance of spray and water-distribution valve systems
Water Truck Repair Restores serviceable valve internals without complete valve replacement
