Power Take Off (PTO), Powershift Hydraulic (Hot Shift), Electric 12V Over Hydraulic, 10-Bolt, SAE “B” 2/4 bolt 13T, Input Gear: 63 - Allison, Assembly Arrangement Left Forward, Eaton Bezares PT3252PCE633SA, 3252 Series

Power Take Off (PTO), Powershift Hydraulic (Hot Shift), Electric 12V Over Hydraulic, 10-Bolt, SAE “B” 2/4 bolt 13T, Input Gear: 63 - Allison, Assembly Arrangement Left Forward, Eaton Bezares PT3252PCE633SA, 3252 Series

SKU 0011892
Brand EATON
Availability:
0 in stock. Available on backorder
Save 27% Save 27%
$3,395.45
$3,395.45 - $3,395.45
$3,395.45
$2,490.00
$2,490.00 - $2,490.00
$2,490.00

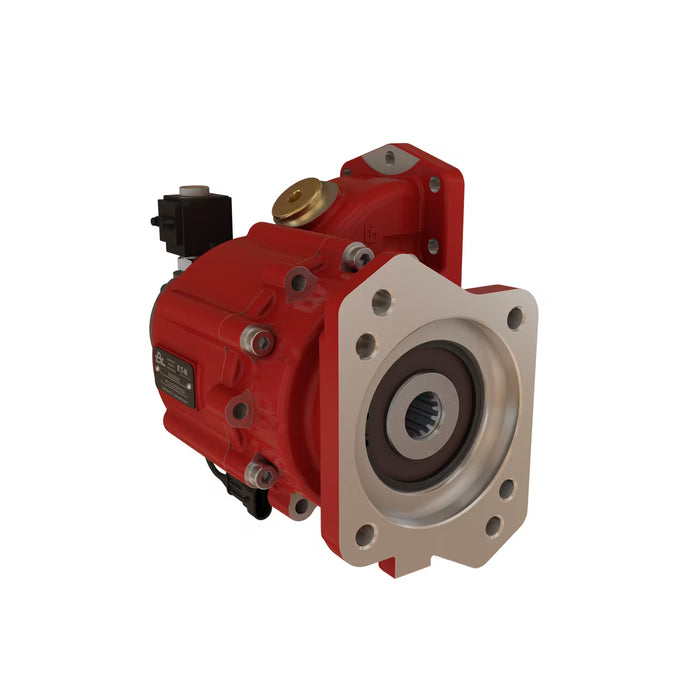

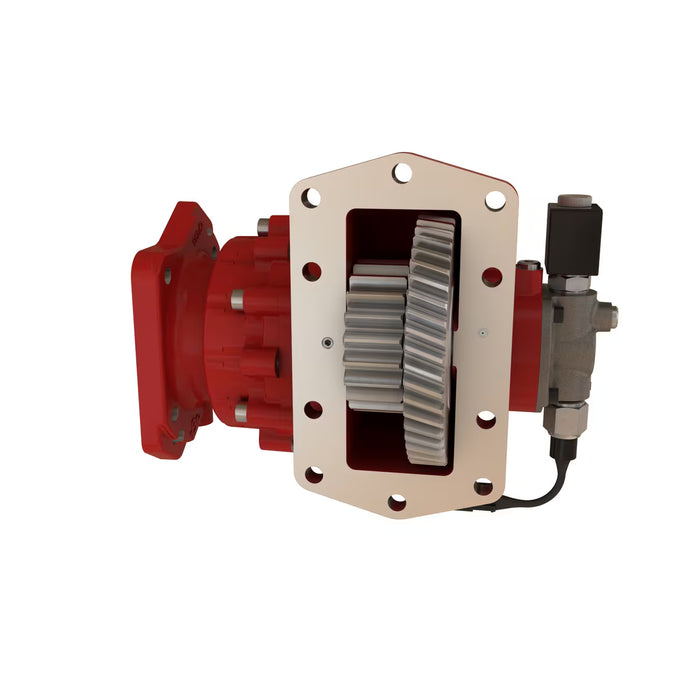

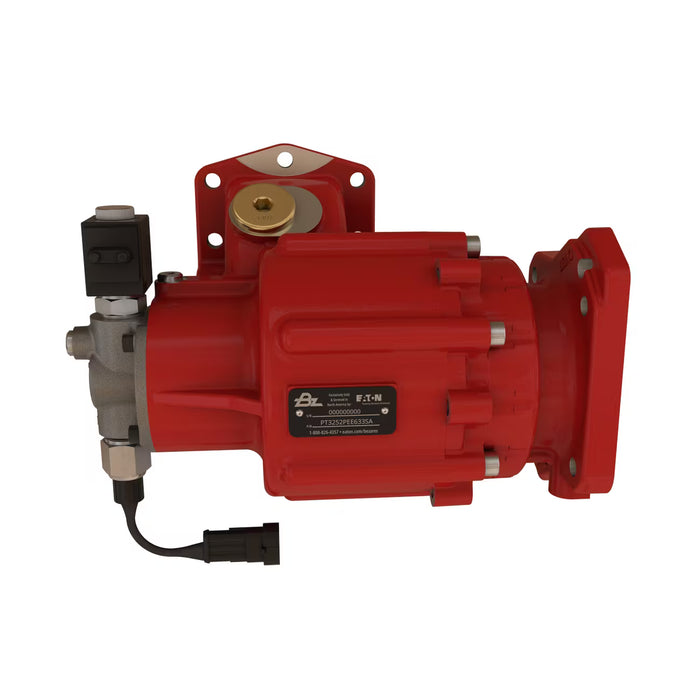

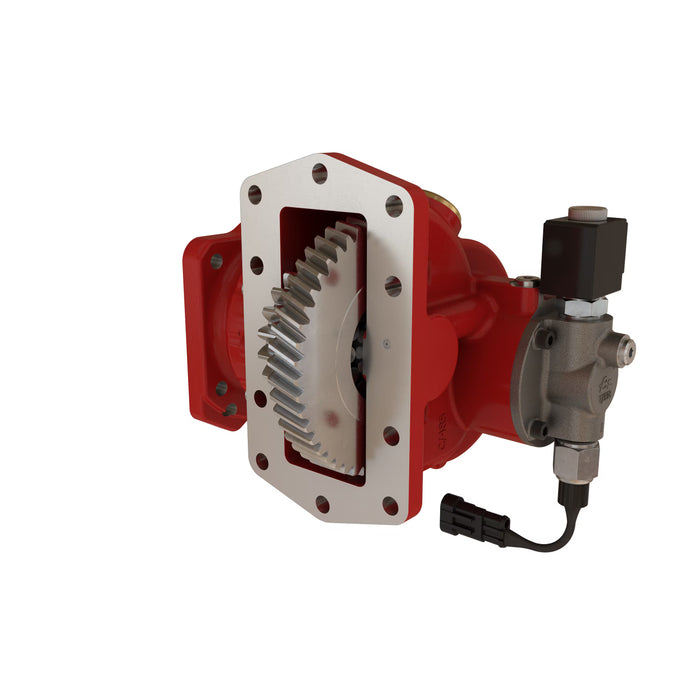

Product Images

Images are for representation only and may differ from the actual product.

PT3252PCE633SA - LOW PROFILE MD PTO ALLISON 10

Please refer to Eaton Bezares PTO Application Catalog for Engine Speed % based on your transmission.

  • Internally lubricated for ease of installation, improved bearing life and cooler operation
  • Clutch pack material is designed to provide smooth engagement and long life
  • Higher torque rating than competitors within the same PTO segment

General specifications

Product Name
Eaton Bezares 3252 Series PTO
Catalog Number
PT3252PCE633SA
UPC
840379304862
Certifications
Not Applicable
Product Type
PTO

Product specifications

Bolt count
10 Bolt
Series
Allison
Versions (available options)
G - Greasable Idler Shaft
Intermittent torque - max
400 Ft-Lb
Intermittent power - max
76 HP
Continuous torque - max
300 Ft-Lb
Continuous power - max
57 HP
Output type
RA - SAE "B" 2/4 Bolt 13T. Rotatable
Assembly arrangement
3 - Left, forward
Shifter type
E - Electric 12V. Over hydraulic
Input gear
63 - Allison
Internal PTO ratio
59%
Transmission model
4000 RDS
4000 TRV
4500 RDS
HD 4560P
3000 EVS
MD-3066P
MD 3060P W-TOP OPENING
3500 RDS
MD 3560P W-TOP OPENING
3000 TRV
4000 EVS
4700 RDS
HD-4070P
3000 MH
3000 RDS
3200 TRV
B300
B500
HD 4060P
MD 3070PT
4500 EVS
MD 3560P
4000 MH
4700 EVS
MD 3060P
3500 EVS
B400
4700 OFS
4800 EVS
MD 3066P W-TOP OPENING
Transmission manufacturer
Allison
Clark
