The Elkhart Brass Sidewinder EXM2 7100HDX2 is a heavy-duty electric water monitor designed for demanding mobile and industrial applications including water trucks, mining, construction, dust control, and wildland firefighting equipment. Its heavy-duty, high-torque motors are designed for continuous-use applications where durability and reliable remote positioning are critical.
Built on Elkhart Brass's EXM2 CANbus J1939 control platform, the 7100HDX2 can be operated using compatible Elkhart wired or wireless controls or integrated into compatible OEM and third-party J1939 CAN control systems. The published EXM2 CAN communication protocol provides control of monitor movement, motor speed, nozzle pattern, water valve functions, presets, oscillation, stow functions, and auxiliary outputs, allowing the monitor to be incorporated into sophisticated vehicle and equipment control systems.
The EXM2 platform also provides absolute position sensing, programmable travel limits and keep-out zones, programmable travel speeds, STOW, DEPLOY and OSCILLATION functions, along with integrated water valve control. Built-in Wi-Fi simplifies system configuration and programming during installation and setup.
With 350° horizontal travel and 135° vertical travel, the Sidewinder EXM2 provides broad coverage while allowing the operator to direct the water stream remotely from a protected operating position. Its rugged construction, sealed motors and control components, and hard-anodized Elk-O-Lite® aluminum waterway make it well suited for severe-duty vehicle installations.
The 7100HDX2 is compatible with 12V or 24V DC electrical systems, making it suitable for a wide range of vocational trucks and off-road equipment.

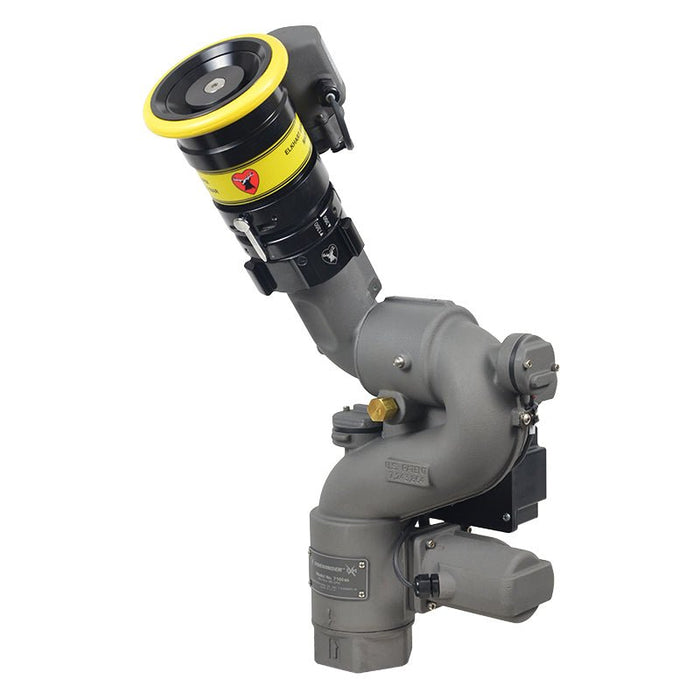

Important: Product images may show the monitor equipped with a nozzle for illustration. Nozzle is sold separately.
Key Features
| Feature |
Details |
| Heavy-Duty Motors |
High-torque motors designed for demanding continuous-use applications |
| CANbus J1939 Control |
EXM2 J1939 architecture supports vehicle-level CAN integration and external control |
| OEM / Third-Party Integration |
Published CAN communication protocol allows integration with compatible third-party J1939 controllers |
| Wired & Wireless Controls |
Compatible with available Elkhart EXM2 wired and wireless control components |
| Programmable Functions |
Supports programmable STOW, DEPLOY and OSCILLATION functions |
| Travel Limits & Keep-Out Zones |
Programmable movement limits help prevent interference with vehicle equipment |
| Variable Motor Speed |
Horizontal and vertical movement speeds can be programmed and controlled through the EXM2 platform |
| Position Feedback |
Absolute position sensors provide precise monitor position information |
| Integrated Valve Control |
EXM2 system supports remote water valve open and close control |
| Electric Nozzle Control |
CAN commands support compatible electric nozzle fog and straight-stream adjustment |
| Dual Voltage |
Compatible with 12V and 24V DC electrical systems |
| Wide Horizontal Travel |
350° total horizontal movement |
| Wide Vertical Travel |
-45° to +90° vertical movement |
| Rugged Construction |
Designed for severe-duty mobile equipment, mining, construction and firefighting applications |
| Durable Finish |
Teflon-impregnated, hard-anodized Elk-O-Lite® aluminum waterway |
Specifications
| Attribute |
Details |
| Manufacturer |
Elkhart Brass |
| Model |
Sidewinder EXM2 7100HDX2 |
| Manufacturer Part Number |
02007101HD |
| Product Type |
Electric Remote-Controlled Water Monitor |
| Motor Configuration |
Heavy-Duty, High-Torque |
| Maximum Flow |
700 GPM |
| Maximum Pressure |
600 PSI |
| Inlet |
2.5" FNPT |
| Discharge |
2.5" FNHT |
| Horizontal Travel |
175° Left to 175° Right (350° Total) |
| Vertical Travel |
-45° to +90° (135° Total) |
| Voltage |
12V or 24V DC |
| Control Platform |
Elkhart Brass EXM2 |
| CAN Communication |
SAE J1939 CANbus |
| Control Options |
Wired, Wireless, or Compatible J1939 CAN Integration |
| Position Feedback |
Absolute Position Sensors |
| Programmable Functions |
STOW, DEPLOY, OSCILLATION, Travel Limits, Keep-Out Zones, Presets, and Travel Speeds |
| Water Valve Control |
Supported Through EXM2 System |
| Nozzle Control |
Supports Compatible Electric Nozzles |
| Material / Finish |
Teflon-Impregnated, Hard-Anodized Elk-O-Lite® Aluminum |
| Nozzle |
Sold Separately |
EXM2 CANbus Control & Integration
The Sidewinder EXM2 uses an SAE J1939 CANbus control architecture and can be integrated with compatible OEM and third-party vehicle control systems. Elkhart Brass provides CAN communication documentation for integrators developing external control solutions.
Supported CAN-controlled functions can include monitor left, right, up, and down movement, horizontal and vertical motor speed control, compatible electric nozzle pattern control, water valve operation, stow, oscillation, presets, and auxiliary functions.
Third-party integration requires appropriate J1939 programming, wiring, system configuration, and CAN addressing. Controllers, harnesses, valves, nozzles, and other EXM2 control components are sold separately unless specifically included in the product configuration.
Applications
| Application |
Use Case |
| Water Trucks |
Remote-controlled water cannon for dust suppression, roadway watering, and equipment washdown |
| OEM Water Truck Systems |
J1939 integration into centralized vehicle and body control systems |
| Mining Equipment |
Severe-duty water delivery with integration into machine control systems |
| Construction Water Trucks |
Remote spray control for jobsites, haul roads, and earthmoving operations |
| Dust Control Trucks |
Directional water delivery for dust suppression applications |
| Off-Road Equipment |
CAN-controlled water delivery on purpose-built vocational machinery |
| Fire Apparatus |
Remote monitor applications requiring programmable electric control |
| Wildland Firefighting |
Vehicle-mounted monitor systems for demanding off-road environments |
