UnitedBuilt Choice Bulkhead Fitting, 1/4" FNPT x 1/2" MNPT — W05498

SKU 0009327
Brand UnitedBuilt Choice
Availability:
10 in stock | Available on backorder
$0.00 - $0.00
$0.00
$13.50
$13.50 - $13.50
$13.50

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

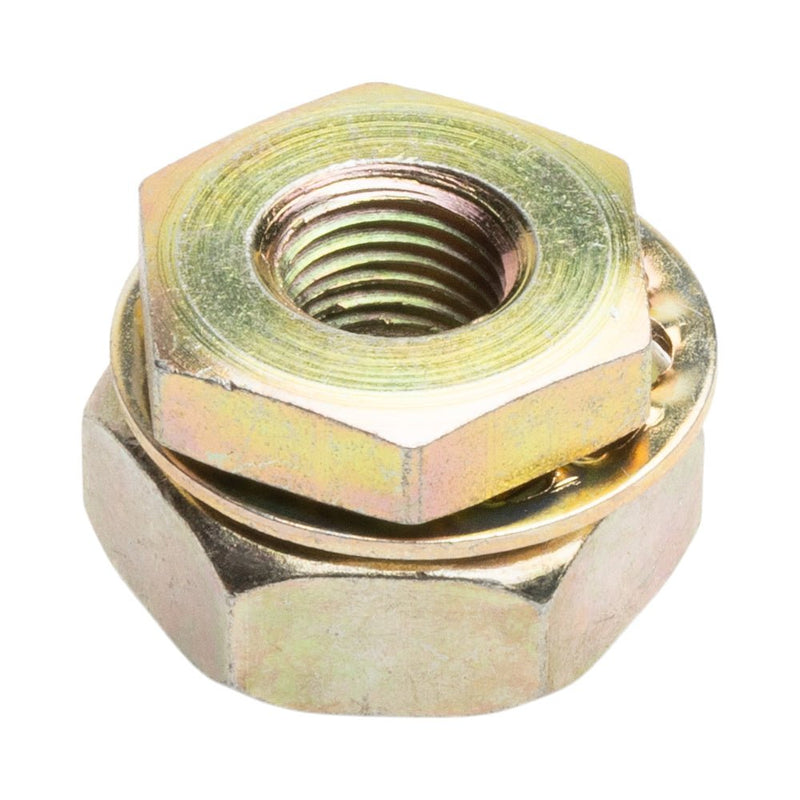

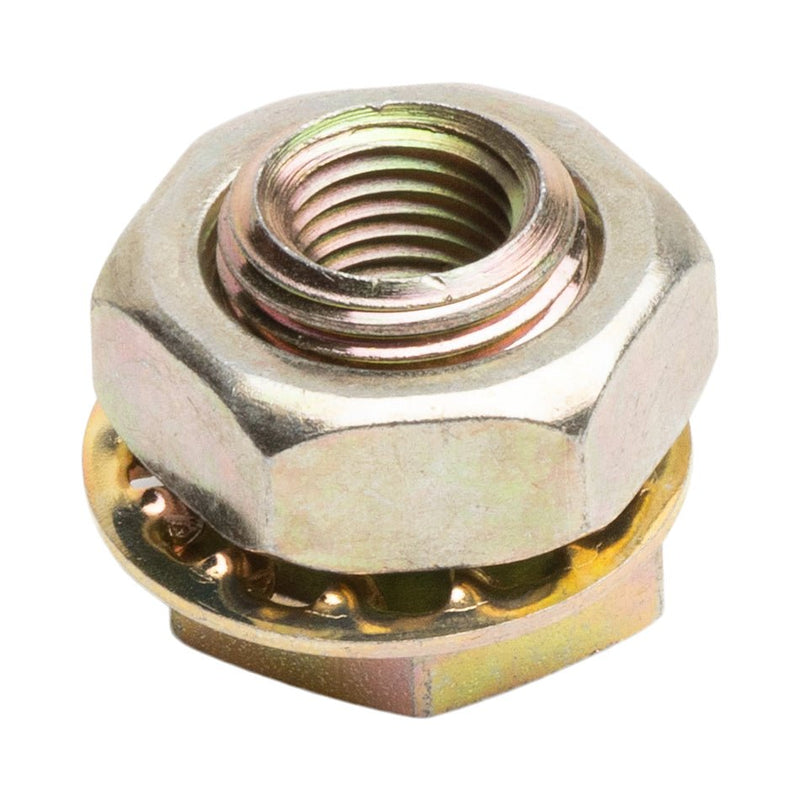

The UnitedBuilt Choice W05498 bulkhead fitting combines a 1/4-inch female NPT connection with a 1/2-inch male NPT connection. Select it for a bulkhead connection where these two pipe-thread sizes match the components in your system.

The two nominal pipe sizes refer to the fluid connections, not the required panel opening or mounting dimensions. Check the existing fitting and mounting arrangement before ordering a replacement. The W05498 reference helps identify this catalog item without establishing interchangeability with every similarly numbered fitting.

Match the pipe connections and the mounting location

The male and female ends let you join compatible components with different nominal pipe-thread sizes at the bulkhead location. Confirm the mounting details as well as the port sizes so the fitting suits both the connection and the panel.

Feature Benefit
1/4-inch female NPT end Accepts a compatible 1/4-inch male threaded component.
1/2-inch male NPT end Connects to a compatible 1/2-inch female threaded component.
Bulkhead configuration Provides a fitting option for a panel or bulkhead connection when mounting dimensions match.

Technical specifications

Specification Details
Brand UnitedBuilt Choice
Reference number W05498
Fitting type Bulkhead fitting
Female connection 1/4-inch NPT
Male connection 1/2-inch NPT

Before ordering

Check Selection guidance
Pipe threads Confirm 1/4-inch female NPT and 1/2-inch male NPT are the required connection sizes; do not substitute BSP.
Mounting fit Verify panel thickness, opening, mounting-thread dimensions, and clearance against your actual fitting.
Mounting hardware Confirm the retaining hardware required for your installation and what is supplied before ordering.
Material and service Confirm material compatibility and pressure/temperature requirements for the system medium before selecting this fitting.
Installation Isolate and depressurize the circuit. Use a thread-sealing method compatible with the medium and equipment instructions.

Need help selecting the correct fitting? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your connection sizes, mounting dimensions, and application.
