Air Switch Valve, 3-Way 2-Position NC, Toggle Lever, Bistable, 1/8" NPTF Ports, M16x1 Mount Stem, Series 3, Camozzi 338-990TF - UnitedBuilt Equipment

Camozzi 338-990TF 3-Way NC Bistable Air Switch Valve, 1/8" NPTF, 145 PSI

SKU 0006032
Brand Camozzi
Availability:
50 in stock | Available on backorder
$0.00 - $0.00
$0.00
$34.50
$34.50 - $34.50
$34.50

Product Images

Images are for representation only and may differ from the actual product.

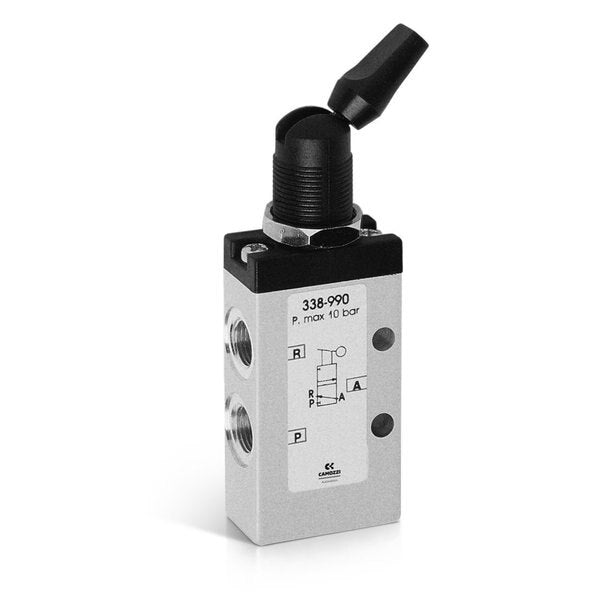

The Camozzi 338-990TF is a compact Series 3, 3-way/2-position normally-closed (3/2 NC) pneumatic switch valve with a bistable, detented manual actuator. The maintained-position switch provides positive manual control of supply, outlet, and exhaust functions in pneumatic circuits, making it well suited for water truck cab controls and other industrial air systems.

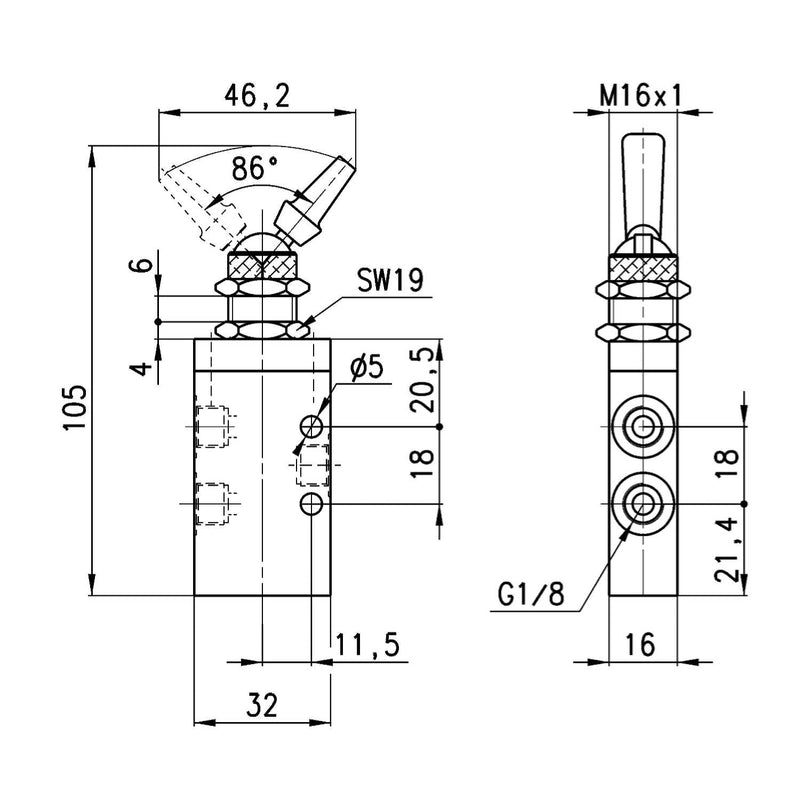

The TF suffix identifies the 1/8" NPTF port version. The valve is rated for operation up to 145 PSI (10 bar) and provides 700 Nl/min (24.7 SCFM) nominal flow with a Cv of 0.73. Camozzi's dimensional drawing also identifies an M16x1 panel-mount stem. Series 3 construction uses an aluminum body, stainless-steel spool, and NBR seals for reliable pneumatic service.

Key Features

Feature Details
3-Way, 2-Position Normally Closed 3/2 NC directional control for supply, outlet, and exhaust functions
Bistable / Detented Switch Maintains the selected manual position until switched again
1/8" NPTF Ports TF-suffix North American pipe-thread version
145 PSI Maximum Pressure Rated operating pressure up to 10 bar
High Nominal Flow 700 Nl/min (24.7 SCFM) nominal flow
Cv 0.73 Compact valve with useful flow capacity for pneumatic control circuits
M16x1 Mounting Stem Panel-mount stem dimension shown in Camozzi technical drawing

Specifications

Attribute Details
Brand Camozzi
Manufacturer Part Number 338-990TF
Series Series 3
Valve Function 3-Way / 2-Position Normally Closed (3/2 NC)
Actuation Manual switch, bistable / detented
Port Size 1/8" NPTF
Mounting Stem M16x1
Operating Pressure 0 to 145 PSI (0 to 10 bar); Series 3 also supports vacuum service down to -0.9 bar
Nominal Pressure 87 PSI (6 bar)
Nominal Flow 700 Nl/min (24.7 SCFM)
Cv 0.73
Nominal Diameter 5 mm
Actuating Force 18 N (4.04 lbf)
Body Material Aluminum
Spool Material Stainless steel
Seal Material NBR (Buna-N)
Fluid Filtered compressed air
Operating Temperature 32°F to 175°F; dry air required for operation down to -4°F
Lubrication Not required; if used, ISO VG32 compatible oil is recommended
Listed Weight 0.29 lb

Applications

Application Use Case
Water Truck Cab Air Controls Maintained manual control of compatible pneumatic functions from a control panel
Air-Operated Spray Valve Controls 3-way normally-closed control for compatible pneumatic spray-valve circuits
PTO & Auxiliary Air Controls Manual pneumatic switching where a bistable 3/2 NC valve is required
Industrial Pneumatic Panels Compact panel-mounted directional control for machinery and equipment
Replacement Service Direct replacement where Camozzi 338-990TF specifications and plumbing match the existing circuit
