Compression Fitting, 90 Degree, 5/8" Tube x 1/2" NPT, Brass Bar Stock (TANKFIT) - UnitedBuilt Equipment

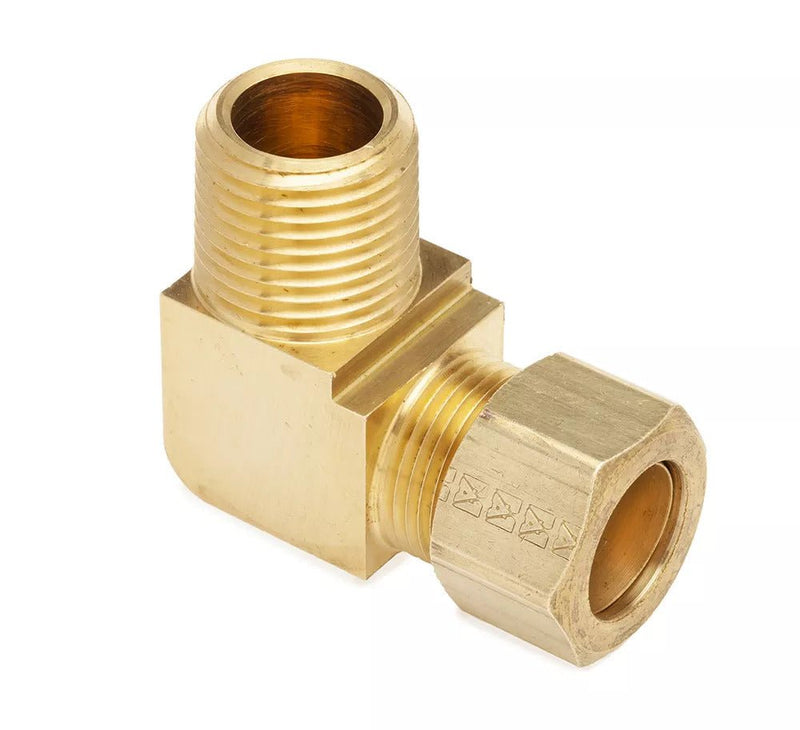

Mid-America Brass Compression Elbow, 5/8" Tube OD x 1/2" Male NPT — 269X10

SKU 0001194
Brand Mid-America
Availability:
542 in stock | Available on backorder
$0.00 - $0.00
$0.00
$14.00
$14.00 - $14.00
$14.00

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

The Mid-America 269X10 brass compression elbow connects 5/8-inch outside-diameter tubing to a compatible female port through its 1/2-inch male NPT end at a right angle. Also listed as TANKFIT, this brass bar-stock fitting provides the tube-to-pipe transition used when a straight connection will not suit the layout.

Select it by both connection sizes: 5/8 inch is the tubing outside diameter, while 1/2 inch is the nominal pipe-thread size. Match the tube material and compression components to the installation rather than choosing by appearance alone.

A right-angle tube-to-pipe connection

Feature Benefit
90-degree elbow Turns the tube connection at the threaded port without adding a separate straight adapter and elbow.
Compression tube end Connects matching tubing without flaring.
Male pipe-thread end Threads into a compatible female NPT connection.

Technical specifications

Specification Details
Brand Mid-America
Manufacturer part number 269X10
Merchant reference TANKFIT
Configuration 90-degree compression x male pipe elbow
Tube size 5/8-inch OD
Pipe connection 1/2-inch male NPT
Material Brass bar stock

Before ordering

Check Selection guidance
Tubing Confirm 5/8-inch outside diameter and the correct tube material; do not use steel tubing.
Plastic tubing Use the correctly sized support insert and compatible compression components.
Service Not recommended for gaseous media. Confirm suitability for the liquid, operating pressure, temperature, and vibration.
Contents and installation Confirm the nut, sleeve, insert, and tubing required for your installation before ordering. Do not assume a complete sight-gauge assembly is included.
Port and clearance Check the female port thread and elbow orientation; isolate and depressurize the system before service.

Need help selecting the correct component? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your tube size and material, port thread, and application.
