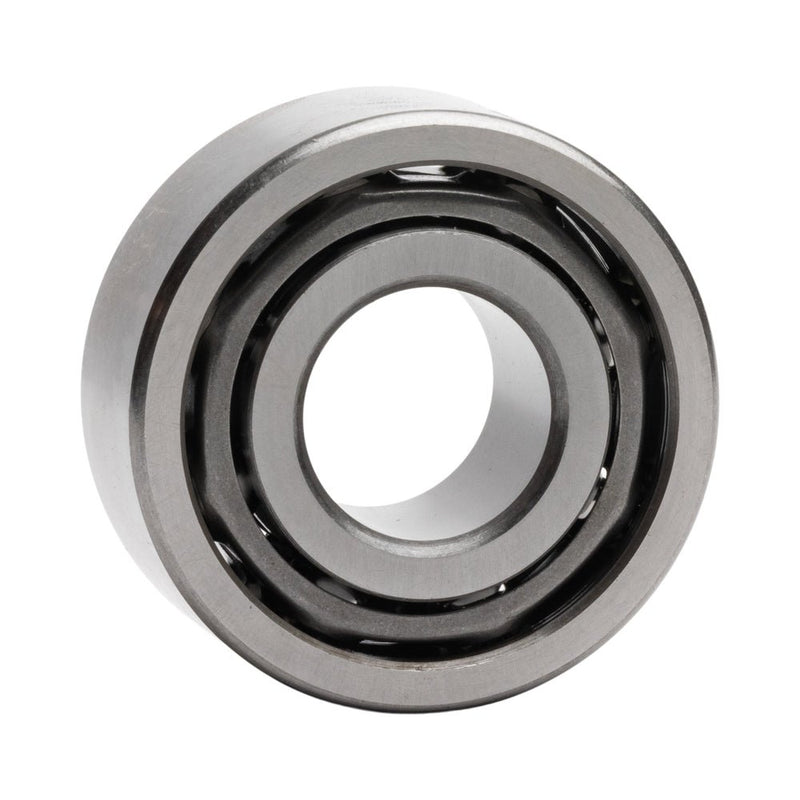

Outboard Ball Bearing, UnitedBuilt S13271MS, Double Row, 5306-C3

SKU 0003158
Brand UnitedBuilt
Availability:
16 in stock | Available on backorder
$0.00 - $0.00
$0.00
$50.00
$50.00 - $50.00
$50.00

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

The UnitedBuilt S13271MS outboard ball bearing is the double-row 5306-C3 bearing used at item 18 in the selected M3ZRM and M3ZRMS shaft assemblies. It is the outboard component, not the single-row inboard bearing.

Select S13271MS when servicing that bearing position. This product is the bearing, not a complete shaft assembly or bearing set. Confirm the bearing identification and the pump's shaft arrangement before choosing additional components for the repair.

Select by position and designation

Using the outboard position together with the 5306-C3 designation helps keep this component separate from the inboard S13270MS bearing. Similar pump model names do not make the two bearings interchangeable. Compare the removed bearing and check the adjoining components before ordering a replacement or planning a more extensive rebuild.

Technical specifications

Specification Detail
Part number S13271MS
Bearing designation 5306-C3
Construction Double-row ball bearing
Position Outboard, item 18

Application and component selection

Selection Application
Rope-seal shaft kits B80698MS (CW) and B80696MS (CCW)
Mechanical-seal shaft kits B80699MS (CW) and B80697MS (CCW)
Different bearing S13270MS is the single-row inboard component

Before ordering

Check What to confirm
Bearing identity Match S13271MS, the 5306-C3 designation and outboard position.
Related parts Review the shaft, housing, retaining components and bearing cap required for the repair.
Service requirements Follow the applicable installation and lubrication instructions; do not assume ratings from the bearing number alone.

Need help selecting the correct replacement part? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pump model, existing part number or photos.
