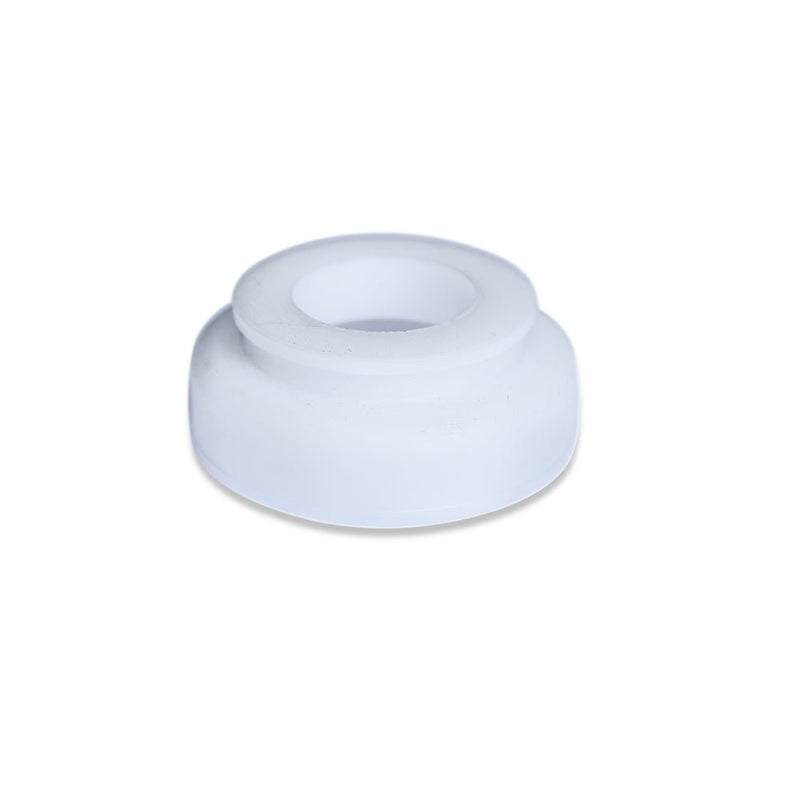

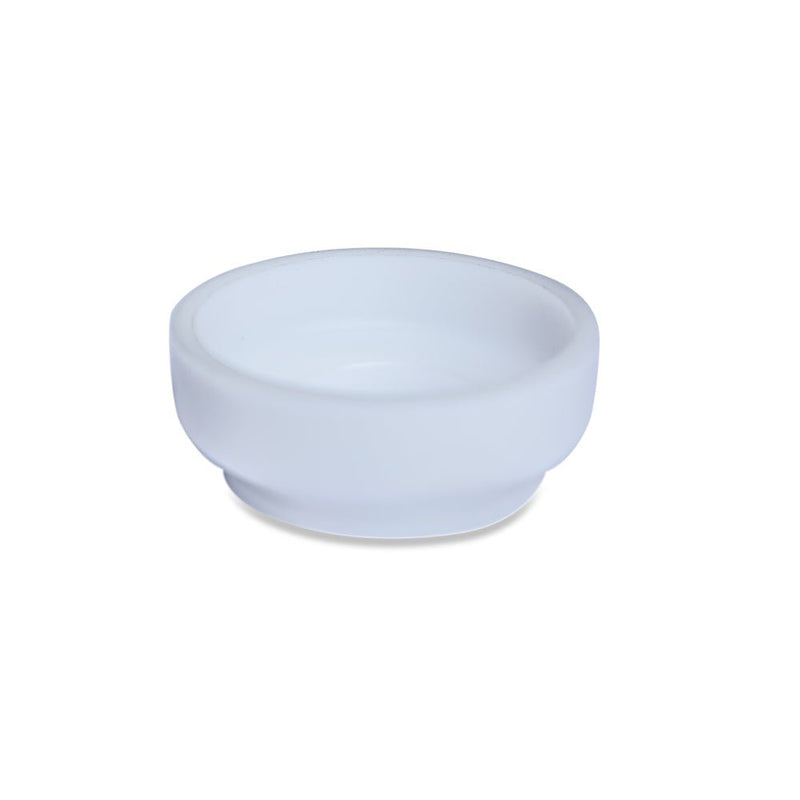

Inner Grease Cap, UnitedBuilt S19033MS for M3ZRM(S)

SKU 0009397
Brand UnitedBuilt
Availability:
238 in stock | Available on backorder
$0.00 - $0.00
$0.00
$20.00
$20.00 - $20.00
$20.00

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

The UnitedBuilt S19033MS inner grease cap is a bearing-area service component for the M3ZRM and M3ZRMS pumps below. It helps keep grease at the bearings and dirt and debris out of the bearing area.

Choose the inner cap position

S19033MS serves the inner grease-cap position in both rope-seal and mechanical-seal repair arrangements. It is not the S19914MS outer bearing cap, and the two names should not be used interchangeably when ordering. Identifying the cap by its location and part number helps avoid receiving the wrong bearing-frame component.

Technical specifications

Specification Details
Manufacturer UnitedBuilt
Part number S19033MS
Component Inner grease cap
Service position Item 35
Seal arrangements Rope packing and mechanical seal

Pump and component selection

Application Selection
M3ZRM rope-seal pumps B66899MS clockwise; B66895MS counterclockwise.
M3ZRMS mechanical-seal pumps B68417MS clockwise; B68416MS counterclockwise.
Different cap S19914MS is the separate outer bearing cap at item 37.

Before ordering

Check What to confirm
Cap position Confirm the inner cap is required, not the outer bearing cap.
Pump model Match the complete pump number and existing cap or assembly drawing.
Repair scope Check whether bearings, the water slinger or other reseal parts are also needed; this listing is the cap component.

Need help selecting the correct grease cap? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pump model, existing cap number or photos of its installed location.
