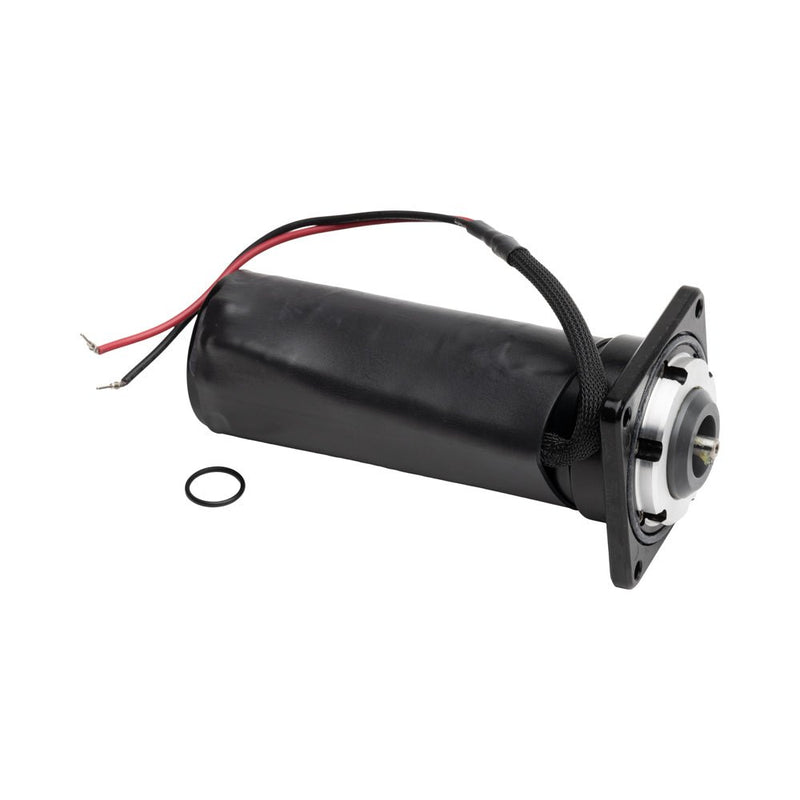

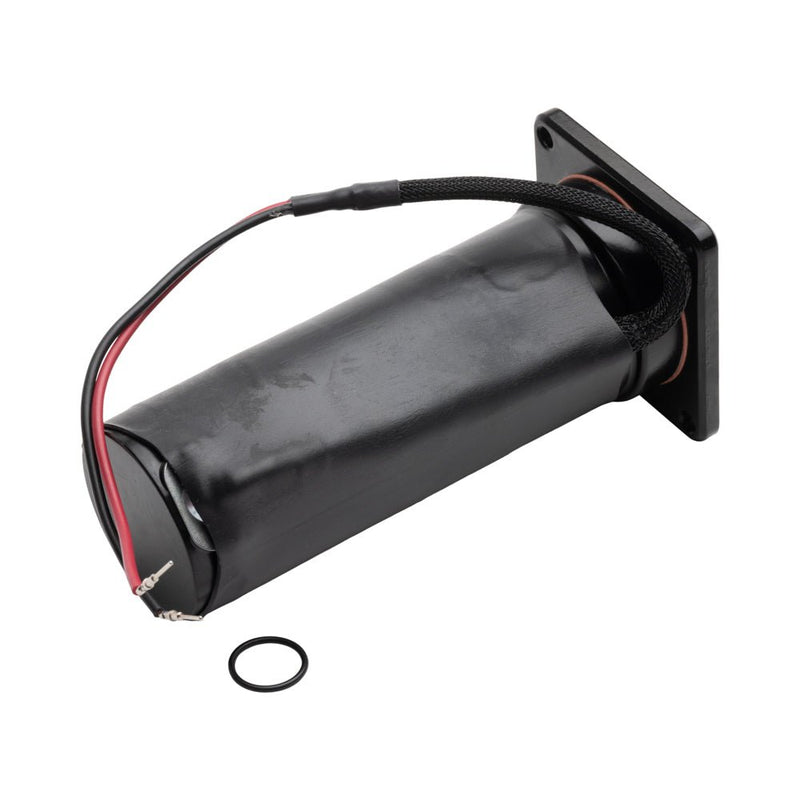

Elkhart 461140RP Nitro HD Replacement Motor Assembly

SKU 0010090
Brand Elkhart Brass
Availability:
3 in stock | Available on backorder
Save 19% Save 19%
$1,327.00
$1,327.00 - $1,327.00
$1,327.00
$1,075.00
$1,075.00 - $1,075.00
$1,075.00

Product Images

Images are for representation only and may differ from the actual product.

The Elkhart Brass 461140RP is the replacement motor assembly listed for the Nitro HD 8100HD monitor. Elkhart's August 12, 2026 parts drawing identifies service components contained in this assembly.

This is a replacement assembly, not the individual 46128000 motor-gear shown in the current monitor parts list. Confirm the complete 461140RP number and monitor revision before service.

Key Features

Feature Details
Exact replacement assembly Elkhart 461140RP
Equipment family Nitro HD 8100HD
Service role Monitor drive motor replacement assembly
Current drawing distinction Individual motor-gear is listed separately as 46128000

Product Specifications

Specification Value
Manufacturer Elkhart Brass
Part number 461140RP
Product type Replacement motor assembly
Monitor model 8100HD Nitro HD
Store SKU 0010090

Identity and Compatibility

Item Guidance
461140RP Orderable replacement motor assembly named by the current Elkhart parts drawing
46114000 Legacy number shown in the store record; confirm supersession for the installed unit
46128000 Individual motor-gear in the current 8100HD parts list; do not treat it as the complete replacement assembly
Monitor revision Confirm serial number and current Elkhart service guidance before installation

Installation and Safety Checks

Check Guidance
Power Disconnect and lock out system power before service
Part match Verify 461140RP and the monitor serial/revision
Sealing Protect wiring and seals during disassembly
Fasteners Follow current Elkhart procedures and specified threadlocker/torque
Travel Keep clear of pinch points and confirm unobstructed movement
Function test Cycle horizontal and vertical travel after installation
