End Yoke, 1310 Series, 1 - 1/2" Shaft x 3/8" Key, For Western 349M Pump, Spicer 2 - 4 - 1233 - UnitedBuilt Equipment

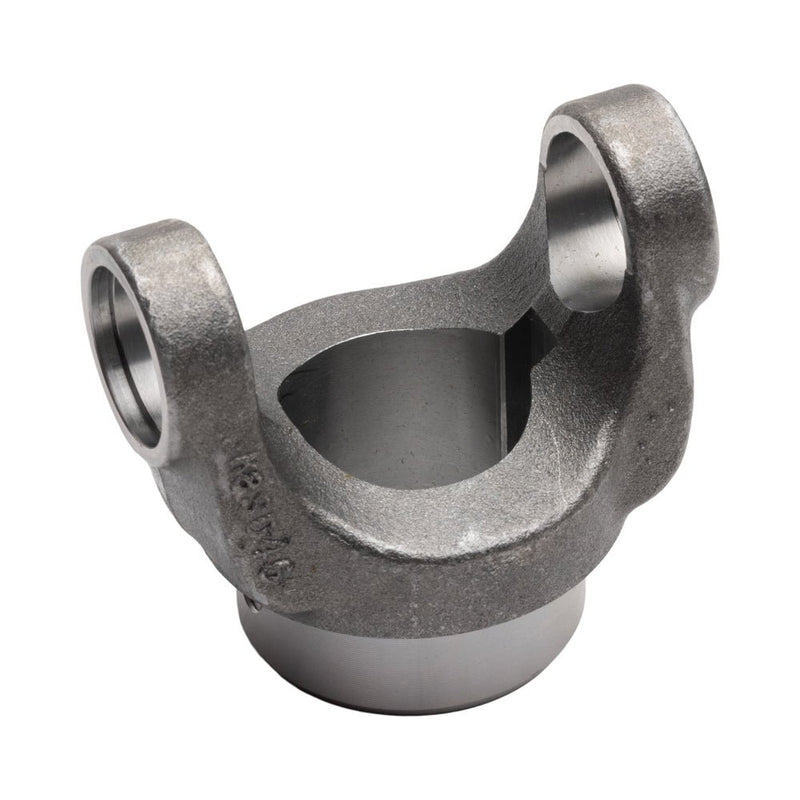

Spicer 2-4-1233 End Yoke, 1310 Series, 1-1/2-inch Bore

SKU 0007169
Brand Spicer
Availability:
3 in stock | Available on backorder
$0.00 - $0.00
$0.00
$132.00
$132.00 - $132.00
$132.00

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

The Spicer 2-4-1233 end yoke connects a keyed shaft to a 1310-series driveline. It has a 1-1/2-inch straight round bore and 3/8-inch keyway. Select it by the shaft and joint dimensions rather than equipment name alone.

This is an end-yoke component, not a complete driveshaft. Check the existing shaft, joint retention and available clearance before replacing a worn or damaged yoke.

Match the shaft and joint

Feature Benefit
Straight keyed bore Provides the shaft connection for a matching keyed application.
1310-series configuration Allows selection against the existing joint series.
Compact hub dimensions Helps check clearance and installed position before ordering.

Technical specifications

Specification Details
Manufacturer part Spicer 2-4-1233
Series / style 1310 / SR
Bore / keyway width 1.500 in / 0.375 in
Hub diameter 2.125 in
Joint centerline to hub end 2.562 in
Set-screw hole diameter 0.375 in

Before ordering

Check What to confirm
Shaft fit Measure bore, keyway and shaft engagement; a series match alone is not enough.
Joint and retention Match the existing joint and retention arrangement; confirm key and set-screw requirements separately.
Equipment application Confirm the pump or driven-equipment shaft configuration before selecting this yoke.
Installation Follow the equipment service procedure for assembly, fastening and guarding. Do not work on a rotating driveline.

Need help selecting the correct end yoke? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your equipment model, shaft measurements and existing part number or photos.
