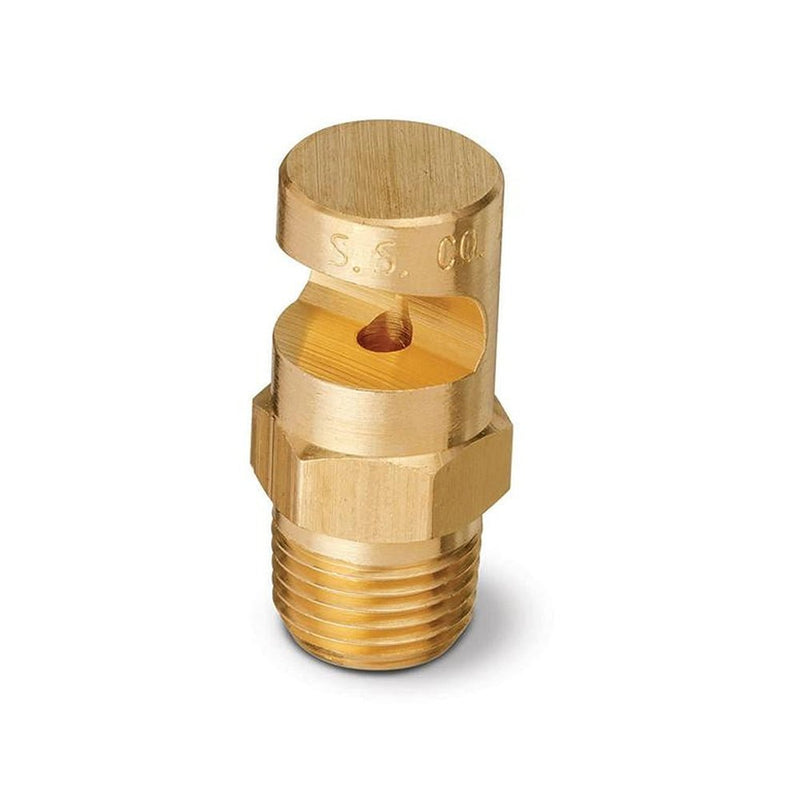

FloodJet® Nozzle, Brass, Flat Fan, 3/4" MNPT Inlet, 3/4K-210 - UnitedBuilt Equipment

FloodJet Flat-Fan Nozzle, Brass, 3/4-Inch Male NPT, 3/4K-210

SKU 0011271
Brand VeeJet
Availability:
30 in stock | Available on backorder
$0.00 - $0.00
$0.00
$72.00
$72.00 - $72.00
$72.00

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

The Spraying Systems Co. FloodJet® 3/4K-210 is a brass, wide-angle flat-fan nozzle with a 3/4-inch male NPT inlet. Liquid strikes its deflector and spreads into a broad spray for applications requiring wide coverage. Choose it for a layout that allows horizontal nozzle mounting and a supply capable of the required flow at the nozzle.

Wide coverage with a protected orifice

The deflected spray distributes liquid across the fan, while the protected orifice is designed to reduce exposure to damage and minimize clogging. Capacity code 210 delivers 21 gpm at 10 psi; it does not mean 210 gpm. Flow and spray angle change with pressure, so select the operating point rather than treating the nozzle as a fixed-flow outlet.

Feature Benefit
Wide-angle flat fan Spreads liquid across a broad area from a horizontally mounted nozzle.
Protected orifice Helps protect the spray opening and reduce clogging.

Technical specifications

Specification Details
Manufacturer part number 3/4K-210
Model and capacity FloodJet K; capacity size 210
Material Brass
Inlet 3/4-inch male NPT
Rated output 21 gpm at 10 psi
Operating pressure range 3–60 psi
Flow range 11.5–51 gpm across the operating pressure range
Spray angle 128° at 7 psi; 139° at 20 psi; 145° at 60 psi
Length / body hex 2.56 inches / 1-1/2 inches

Before ordering

Check What to confirm
Connection Use a matching 3/4-inch female NPT connection; do not substitute BSPT threads.
Mounting Allow horizontal mounting and clearance for the spray fan.
Supply and coverage Match available nozzle pressure, required flow and coverage to the selected operating point.
Purchase scope This is the nozzle, not a complete spray system. Select piping and controls separately.

Need help selecting the correct spray nozzle? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your application, available nozzle pressure and desired coverage.
