Parker Brass Tube Insert, 5/8" Tube OD x 0.062" Wall — 63PT-10-62

SKU 0007632
Brand Parker
Availability:
213 in stock | Available on backorder
$0.00 - $0.00
$0.00
$3.60
$3.60 - $3.60
$3.60

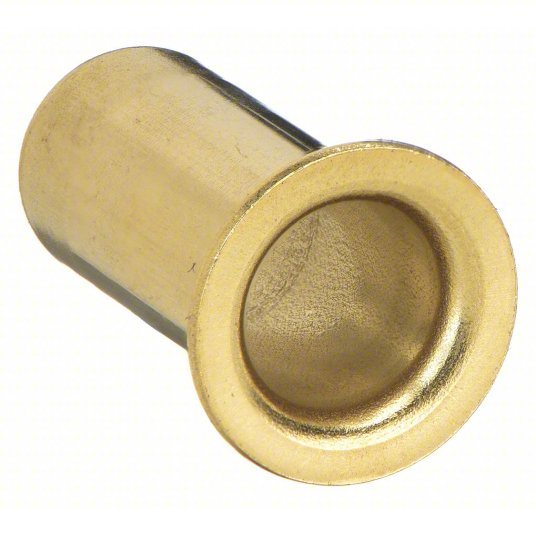

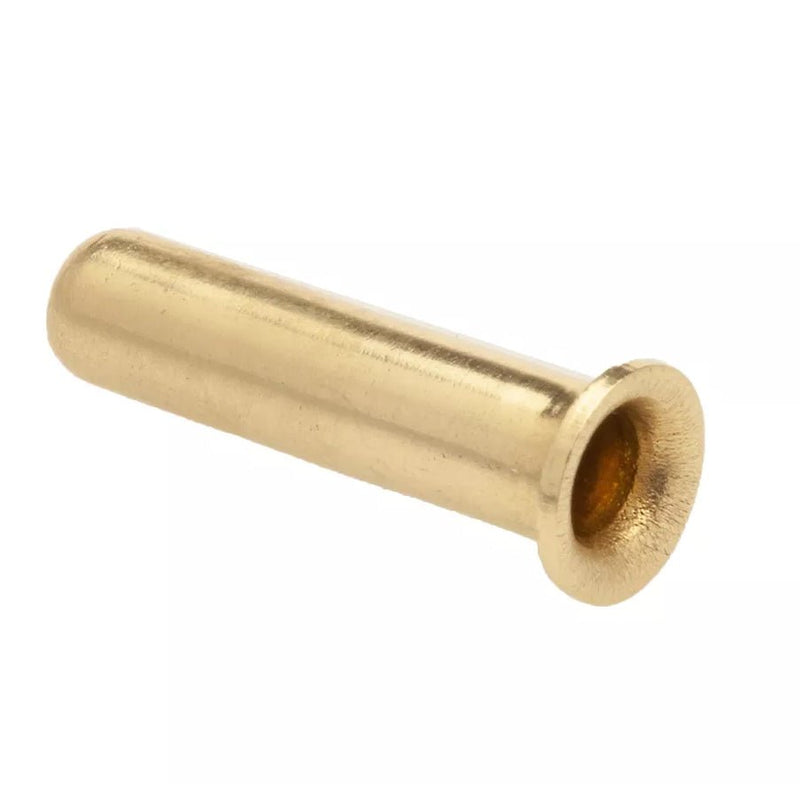

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

The Parker 63PT-10-62 brass tube insert supports industrial thermoplastic tubing at a compatible compression connection. It is sized for 5/8-inch tube outside diameter and a 0.062-inch wall, so both measurements matter when selecting a replacement.

This is a tube-support insert, not a complete compression fitting or sight-gauge assembly. Pair it with the correct fitting body, nut, and sleeve for the tube material and service. A matching outside diameter alone does not establish fit when tubing wall thickness differs.

Support for a correctly matched tube connection

Feature Benefit
Internal tube support Supports the tubing within the compression connection.
Wall-specific sizing Matches 5/8-inch OD tubing with a 0.062-inch wall.
Separate insert Allows selection of the support component without treating it as a complete fitting.

Technical specifications

Specification Details
Brand Parker
Manufacturer part number 63PT-10-62
Component Tube-support insert
Material Brass
Compatible tube OD 5/8 inch
Compatible tube wall 0.062 inch
Nominal length 0.72 inch (approximately 23/32 inch)
Insert outside diameter 0.483 inch

Before ordering

Check Selection guidance
Tubing dimensions Verify tube OD and wall thickness; 5/8 inch describes the tubing, not the insert outside diameter.
Compression components Use the matching body, nut, and sleeve specified for the tubing. Confirm the sleeve required for thermoplastic tubing.
Replacement selection Match Parker 63PT-10-62 and dimensions rather than relying on an alternate number alone.
Service conditions Confirm fluid, pressure, and temperature suitability for the complete tube-and-fitting assembly; an insert alone does not establish an assembly rating.
Installation Isolate and depressurize the system before service. Tubing and other compression components must be selected separately.

Need help selecting the correct component? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your tube outside diameter, wall thickness, and existing fitting number.
