Peterson M163R LED Clearance / Side Marker Light, Red, 2.5-Inch

SKU 0009309
Brand Peterson
Availability:
43 in stock | Available on backorder
$0.00 - $0.00
$0.00
$7.97
$7.97 - $7.97
$7.97

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

Lamp only — mounting grommet and wiring plug are separate selections.

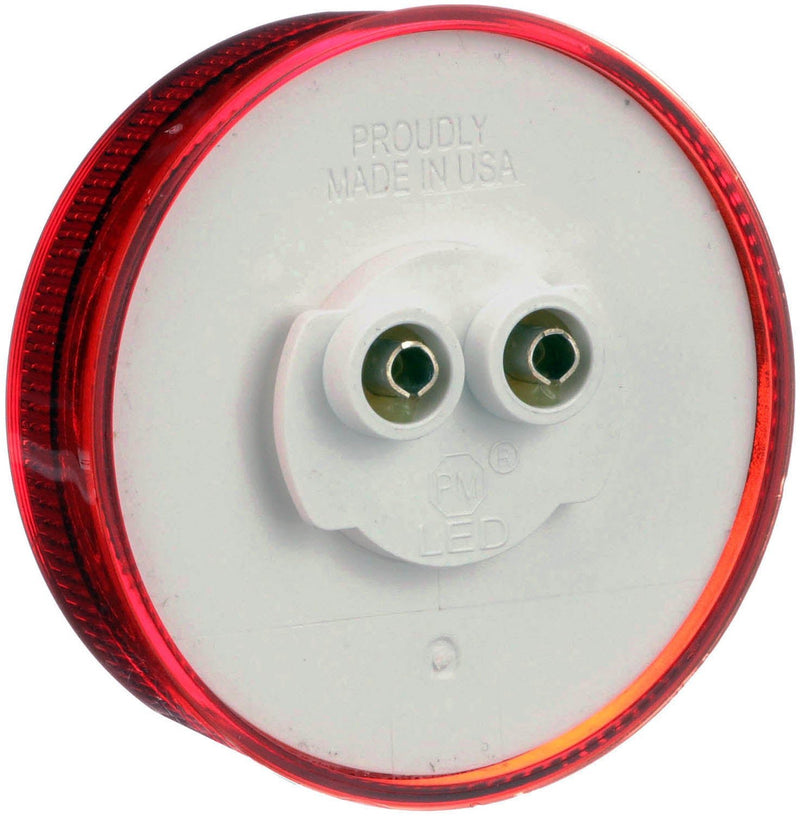

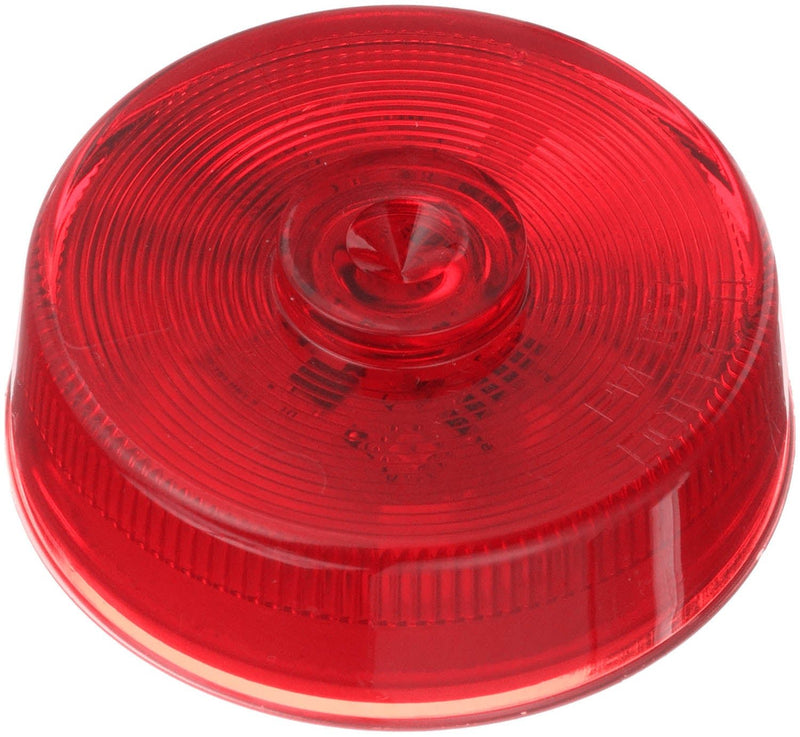

The Peterson M163R is a five-diode, 2.5-inch round LED light for red clearance and side-marker applications. Its integrated PL10 receptacle connects to a matching two-prong lighting plug, while the grommet-mount body fits a compatible recessed installation.

Use this PC-rated lamp where the lighting layout calls for combined clearance and side-marker service. That dual function depends on correct mounting: select the 143-18 grommet for the PC-rated installation rather than assuming any 2.5-inch grommet is equivalent.

One lamp for the required marker functions

Feature Benefit
PC-rated design Can serve both clearance and side-marker functions when correctly mounted.
PL10 receptacle Connects to the matching two-prong plug without a permanently attached lamp lead.
Grommet mounting Allows replacement of the lamp within a compatible recessed mounting arrangement.

Technical specifications

Specification Detail
Part number M163R
Light / lens color Red
Light source LED; 5 diodes

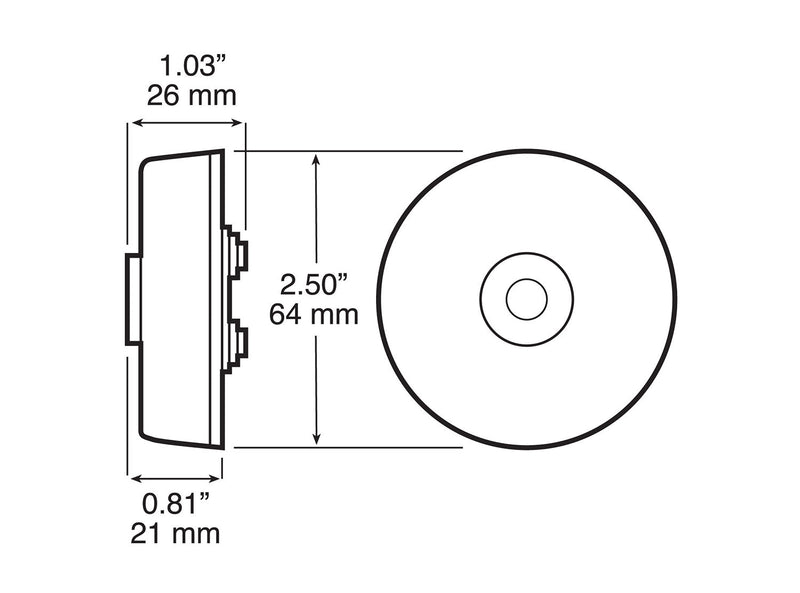

Lamp diameter 2.5 inches
Electrical supply 12 V nominal; 9–16 V operating range
Connection PL10
Integral reflector None

Select the installation components

Component Compatible selection
PC-rated mounting grommet Peterson 143-18 or bulk-pack B143-18; separate selection.
Wiring plug Peterson 162-49 or bulk-pack B162-49; separate selection.
Lamp configuration M163R is the grommet-mount lamp, not a flange-mount assembly or installation kit.

Before ordering

Check What to confirm
Voltage Use a 12 V system within the stated range; this is not the -MV version for 24 V systems.
Mounting and visibility Confirm the mounting position and viewing requirements for the intended clearance/side-marker function.
Existing parts Check the grommet condition, connector and available mounting space.
Lighting layout Confirm that red is the required color at the intended vehicle position; assess separate reflector requirements.

Need help selecting the correct replacement light? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your existing part number, mounting location and connector photos.
