Peterson M290C LED License Light, Top Mount, 12V, Stripped Leads

SKU 0011309
Brand Peterson
Availability:
44 in stock | Available on backorder
$0.00 - $0.00
$0.00
$9.50
$9.50 - $9.50
$9.50

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

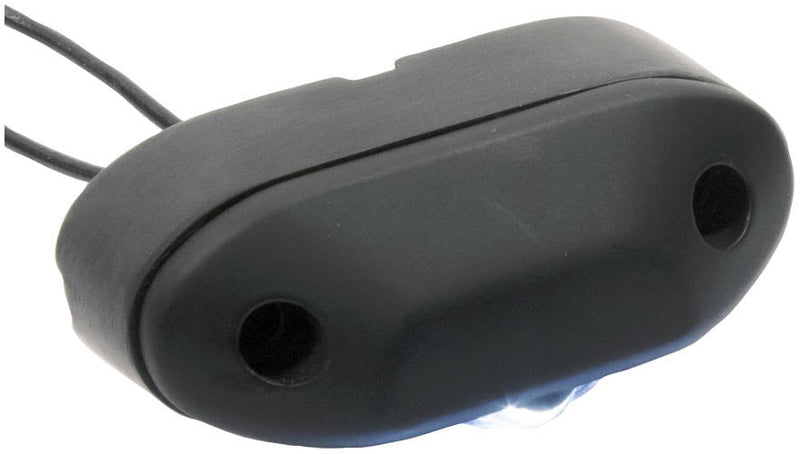

The Peterson M290C LED license light is a single-diode, top-mount lamp for 12 V license-plate lighting. It has stripped wire leads for a wired connection and a 0.95-inch spacer for the top-mount arrangement.

The compact lamp surface-mounts on 2-inch centers above the plate. Select this version when the installation calls for a top-mounted license light rather than a side-mount lamp, a plug-terminated model or a complete license-plate bracket assembly.

A dedicated top-mount license light

Feature Benefit
Single LED light source Provides license-plate illumination from a compact lamp.
Top-mount spacer Positions the lamp for its intended above-plate installation.
Stripped leads Allow connection to the installation wiring without requiring a particular molded plug.

Technical specifications

Specification Detail
Part number M290C
Application Top-mount license light
Light source Single-diode LED
Electrical supply 12 V

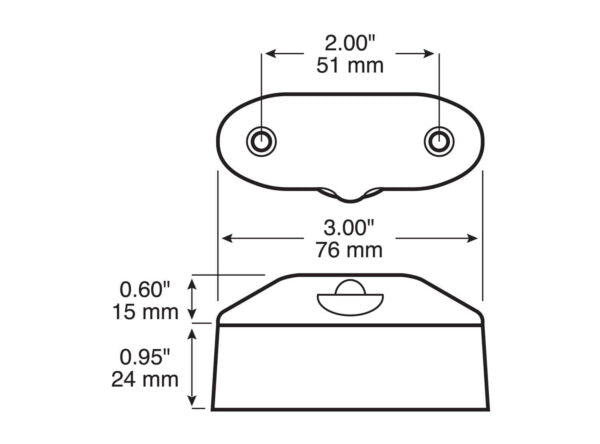

Overall length 3 inches
Mounting centers 2 inches
Top-mount spacer 0.95 inch
Termination Stripped wire leads

Choose the correct mounting arrangement

Component Selection guidance
Offered lamp M290C top-mount lamp with its 0.95-inch spacer configuration.
Replacement top spacer Peterson 290-09; select separately if an additional replacement spacer is needed.
Side-mount installation Requires the appropriate side-mount configuration, not this top-mount model.
Plate bracket assembly A full license-plate mounting bracket is not included with M290C.

Before ordering

Check What to confirm
Voltage Match a 12 V circuit; M290C is not the separate -MV multi-voltage version.
Plate position A single lamp is DOT-compliant only when correctly installed with the spacer; confirm the lamp position and illumination of the plate.
Mounting pattern Check the 2-inch hole centers and available room above the plate.
Wiring Plan a suitable connection for stripped leads; this model does not have an AMP, PL10 or bullet plug.

Need help selecting the correct replacement light? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your existing part number, mounting-hole spacing and installation photos.
