Peterson 820R-22 Oval LED Stop/Tail/Turn Light, Red, AMP, 12V

Name: Peterson 820R-22 Oval LED Stop/Tail/Turn Light, Red, AMP, 12V
Brand: Peterson
SKU: 0012211
Price: 24.5 USD
Availability: InStock

SKU 0012211

Brand Peterson

Availability:

59 in stock | Available on backorder

$0.00 - $0.00

$0.00

$24.50

$24.50 - $24.50

$24.50

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

Description

Light only — mounting grommet and wiring plug are sold separately.

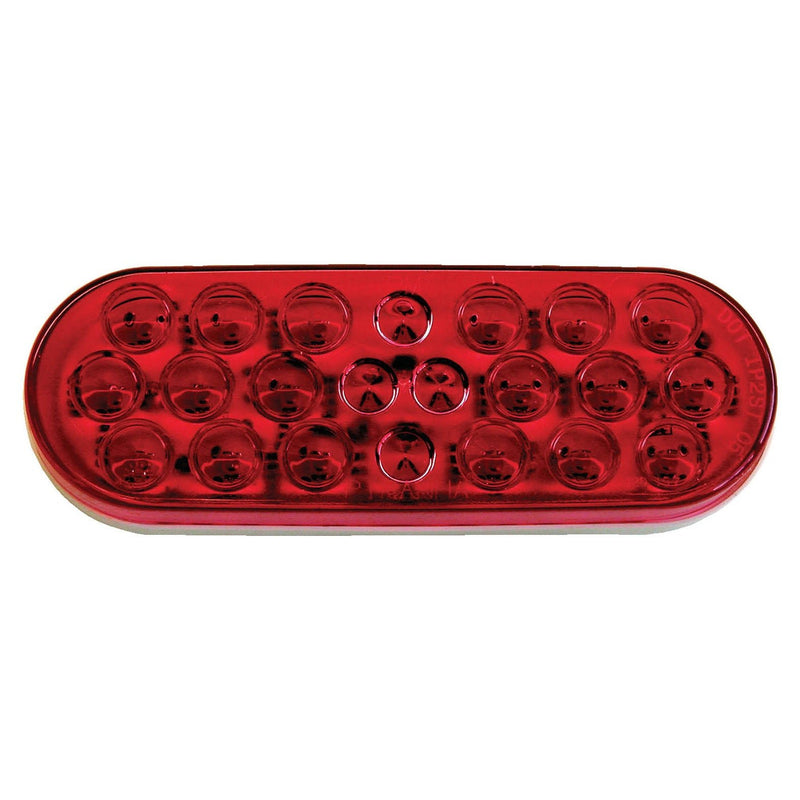

The Peterson 820R-22 Lumen X oval LED stop/tail/turn light combines red rear signaling functions in a grommet-mount housing. Its 22-diode lens pattern suits replacements where an AMP connection and the original multi-diode appearance are required.

This is the 12-volt 820R-22, not a flange-mount lamp or a complete installation kit. Match the existing connector and mounting arrangement before ordering; an oval lens alone does not establish compatibility.

Rear signaling with flexible orientation

Feature	Benefit
Three rear-light functions	Combines stop, tail and turn signaling in the same red lamp.

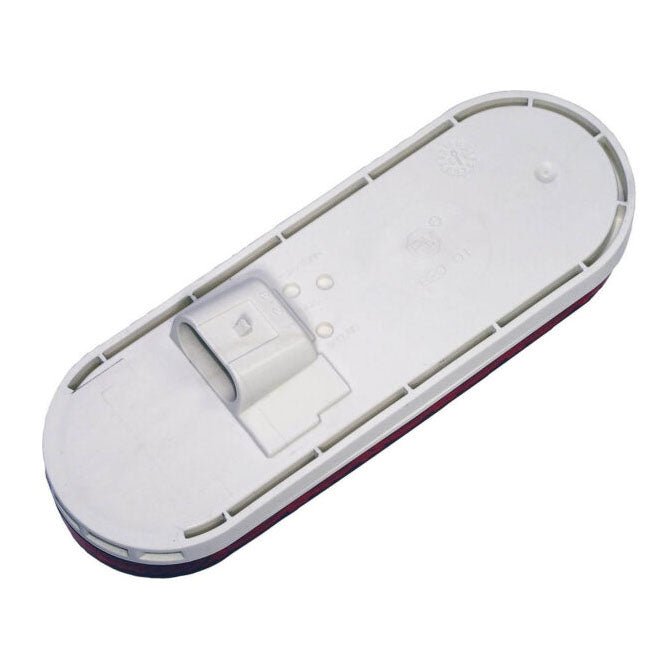

AMP receptacle	Integral 30-degree receptacle provides a silicone-sealed connection point for the matching plug.
Flexible orientation	Meets DOT requirements in horizontal, vertical or other 360-degree orientations when correctly installed.

Technical specifications

Specification	Detail
Manufacturer part number	820R-22
Light source	22 LEDs; red light and red lens
Electrical supply	12 V nominal; 9–16 V operating range
Mounting and connection	Grommet mount; AMP receptacle

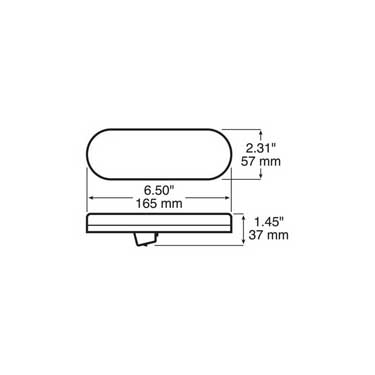

Shape and size	6.5-inch oval
Package configuration	Light-only configuration; not the V420KR grommet kit

Select the installation components

Component	Selection
Mounting grommet	Peterson 421-18, purchased separately
AMP wiring plug	Peterson 817-49, purchased separately
Existing harness	Confirm connector style and stop/tail/turn circuit assignment before connection

Before ordering

Check	What to confirm
Voltage	Use a 12-volt system within the 9–16 V range; do not connect directly to 24 V.
Mounting	Compare your existing lamp and grommet, opening and rear connector clearance.
Lighting function	Choose this red stop/tail/turn model, not a white reverse light or amber turn lamp.
Installation	Position the lamp for the required visibility and verify every signal function after installation.

California Proposition 65 warning: Cancer and/or Reproductive Harm — www.P65Warnings.ca.gov.

Need help selecting the correct rear signal light? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your existing part number, electrical supply and mounting photos.
