Trailer Socket, 4-Pole Round, Flange Mount, Cole Hersee 1232

Name: Trailer Socket, 4-Pole Round, Flange Mount, Cole Hersee 1232
Brand: Littelfuse
SKU: 0005851
Price: 31.72 USD
Availability: InStock

SKU 0005851

Brand Littelfuse

Availability:

4 in stock | Available on backorder

$0.00 - $0.00

$0.00

$31.72

$31.72 - $31.72

$31.72

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

Description

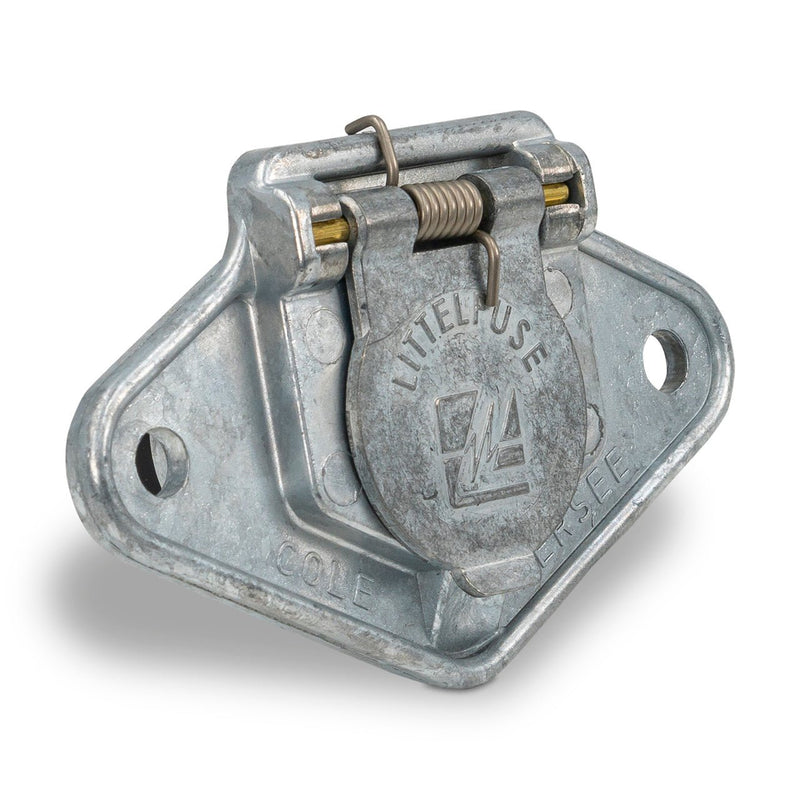

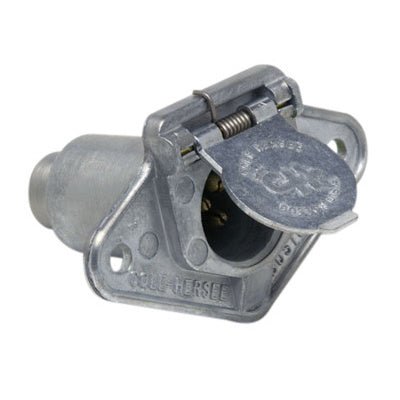

The Cole Hersee 1232 trailer socket is a four-pole round, flange-mounted connector for vehicle electrical connections. Its protective door helps keep debris away from the terminals when the mating plug is removed.

The socket provides four separate circuits in a zinc die-cast housing. Select it by the round connector pattern and circuit assignments, not simply by the number of conductors: a four-pole round socket is a different connection format from a flat trailer connector.

A protected round connection

Feature	Benefit
Protective socket door	Helps shield unused terminals from dirt and debris.
Flanged body	Provides a mounting interface for the vehicle panel or bracket.
Four individual poles	Allows four circuit functions to be assigned and checked separately.

Technical specifications

Specification	Details
Manufacturer part number	1232
Connector form	Four-pole round socket
Mounting	Flange
Housing	Zinc die cast
System voltage	12 to 24 VDC
Current rating	20 A per circuit at 30 degrees C
Wire size	12 AWG
Supplied component	Socket assembly; mating plug is a separate selection

Before ordering

Check	What to confirm
Connector match	Confirm the mating plug dimensions and round-pin arrangement; pole count alone does not establish compatibility.
Circuit assignments	Verify each circuit, including the grounding arrangement, before connecting the plug.
Wire and load	Match conductor size and each circuit load to the socket rating and application requirements.
Mounting clearance	Check flange attachment, rear wiring space and room for the socket door to open.
Installation	Disconnect power before installation and test the completed connection before service.

Need help selecting the correct trailer connector? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your existing connector number, circuit requirements and mounting details.
