Franklin 305462019 CW Grooved Volute Case for XS439

SKU 0007281
Brand Franklin
Availability:
2 in stock | Available on backorder
Save 25% Save 25%
$921.00
$921.00 - $921.00
$921.00
$695.00
$695.00 - $695.00
$695.00

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

Replacement CW grooved volute case — not a complete pump.

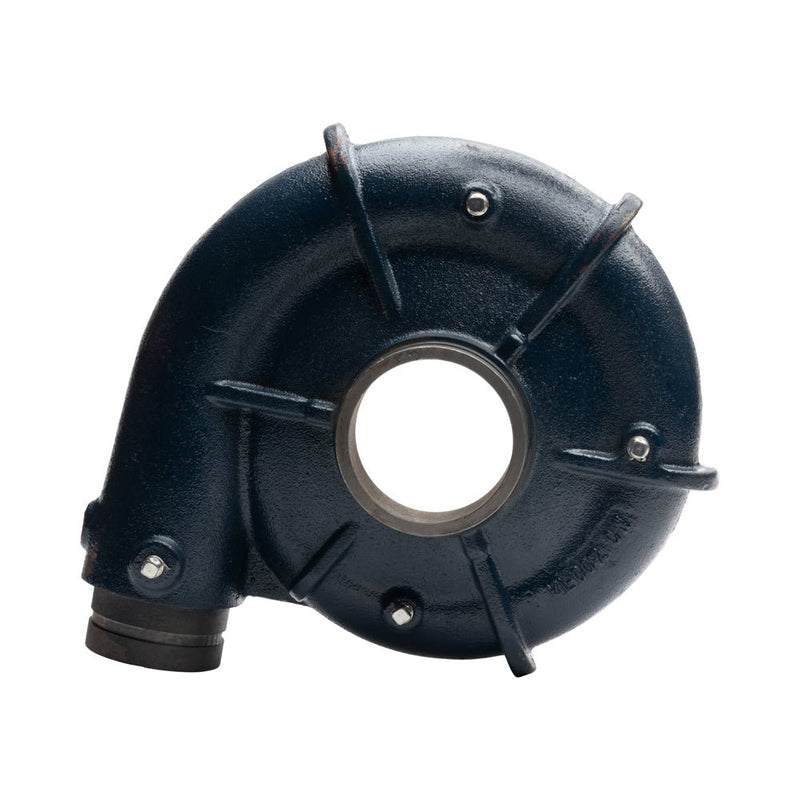

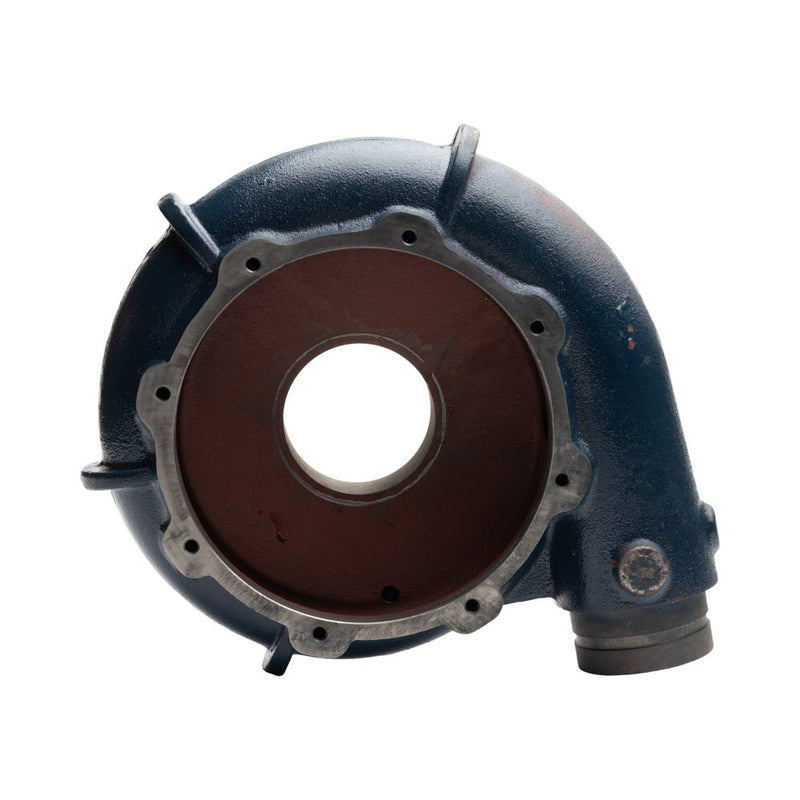

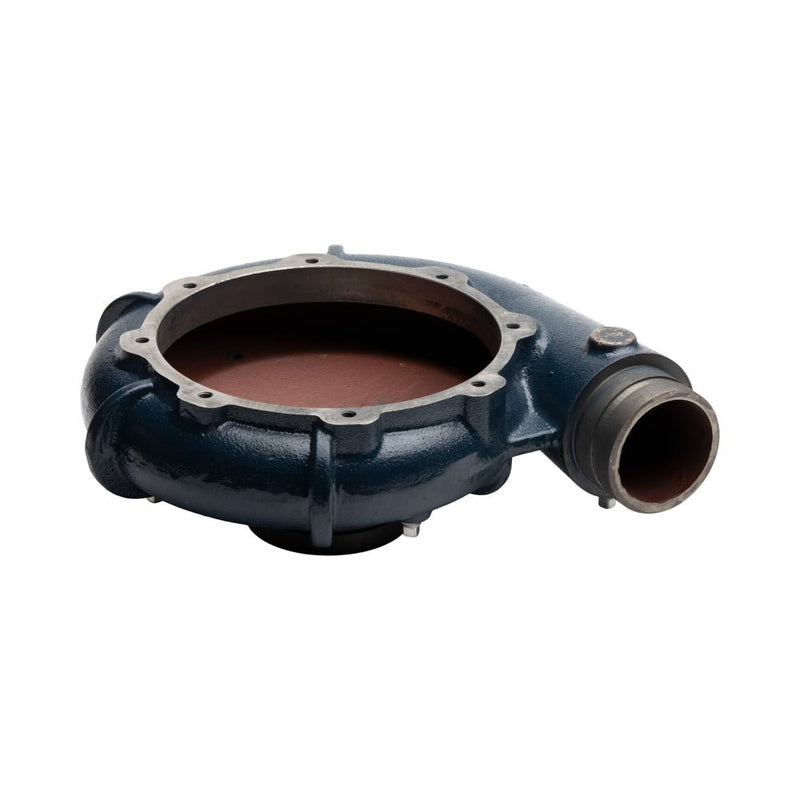

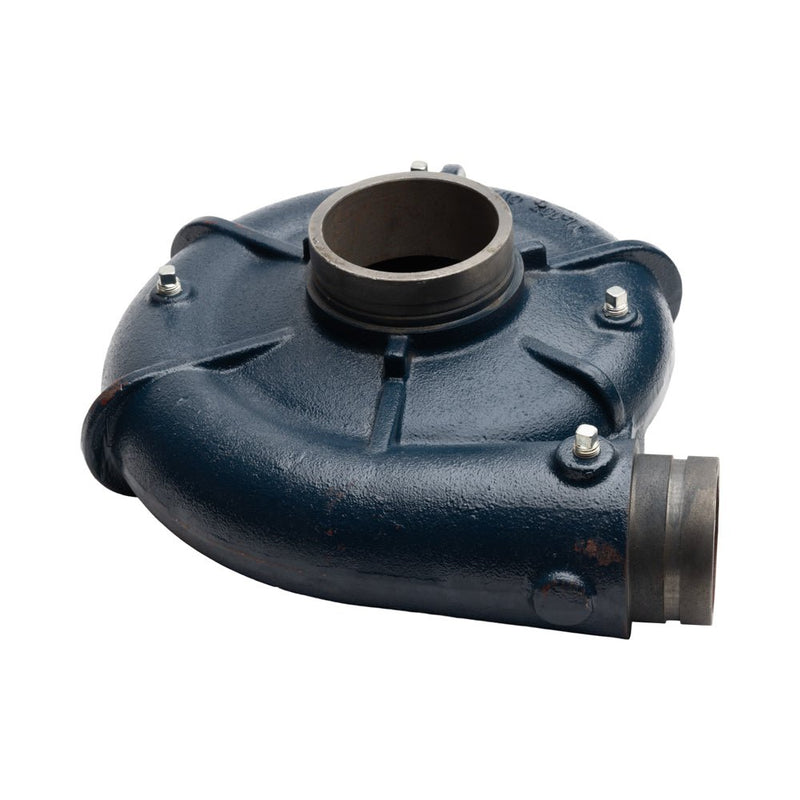

The Franklin XS439 CW grooved volute case, part 305462019, is a service component for XS3x4-9 water truck pumps. It has clockwise (CW) rotation and grooved connections, with a 4-inch suction and 3-inch discharge.

Use this case when servicing the matching grooved pump configuration. The volute and impeller must match the pump rotation; a clockwise case is not a substitute for the counterclockwise version. Confirm rotation from the shaft end and compare the connection style before ordering.

Match the grooved case and rotation

Feature Benefit
Grooved suction and discharge Matches a grooved piping arrangement rather than an NPT-threaded connection.
Rotation-specific case Choose the case that matches the installed impeller and pump rotation.

Technical specifications

Specification Detail
Manufacturer Franklin Electric
Manufacturer part number 305462019
Pump family XS439 / XS3x4-9
Component CW grooved volute case
Rotation Clockwise (CW) viewed from shaft end
Suction / discharge 4-inch suction / 3-inch discharge
Connection style Grooved
Material Cast iron, ASTM-48 Class 30

Before ordering

Check What to confirm
Pump identity Match the pump model and existing part number; do not select by appearance alone.
Rotation Confirm clockwise (CW) when viewed from the shaft end.
Connections Verify grooved connections, 4-inch suction and 3-inch discharge.
Related service items Check the case gasket and fastening hardware needed for the repair; this is not a complete rebuild kit.

Need help confirming the correct CW grooved volute case? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pump model, existing part number or photos.
