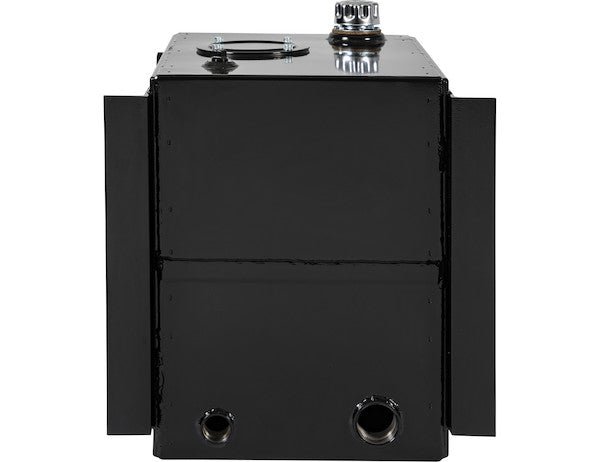

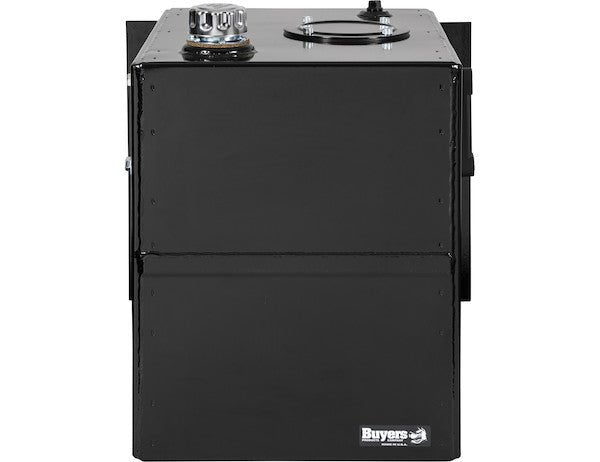

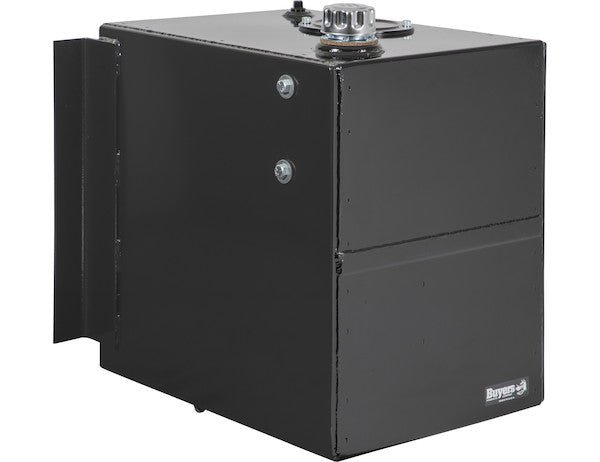

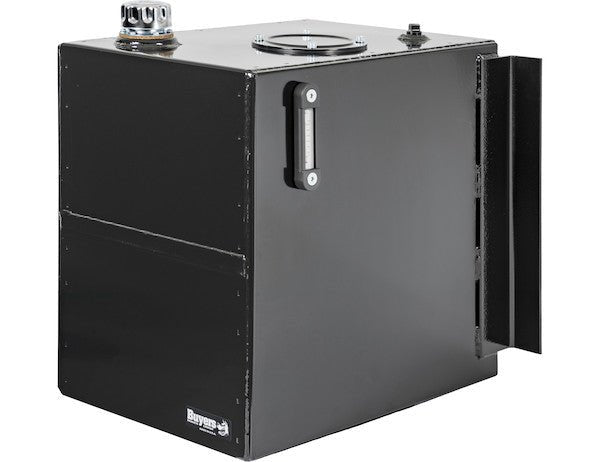

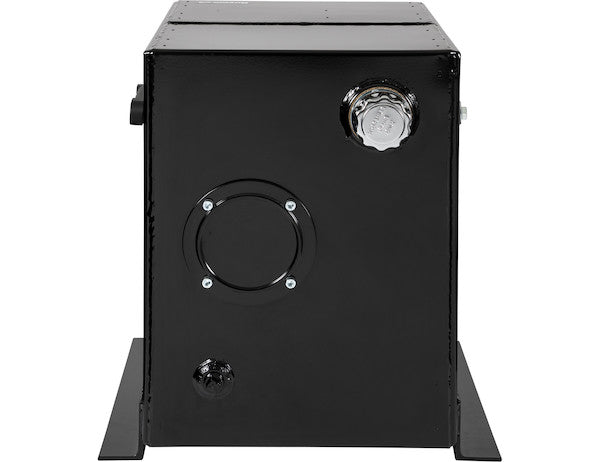

Hydraulic Tank 37 Gallon, Steel, Side Mount, Buyers SMR37SQ
Product Images
Images are for representation only and may differ from the actual product.
Product Images
Images are for representation only and may differ from the actual product.
Buyers 37 Gallon Side Mount Steel Reservoir
The 37 Gallon Steel Reservoir from Buyers Products has welded, integral brackets for mounting to the truck frame. It's ideal for dump applications with a durable 12 Ga HRPO steel build and a corrosion resistant black powder-coated finish. High quality robotic welds ensure consistent and rugged structural strength.
The reservoir has several features for optimal fluid operation. It's internally baffled between suction and discharge to help with cooling, and includes a magnetic drain plug with sump to help prevent metallic particle contamination. This will increase the lifespan of your fluids and your system as a whole.
The reservoir also accepts a tank-mounted HFA5S series return filter on top, saving you space that would be taken by an external filter.
The reservoir comes with a 2 in. NPT suction port, a 1-1/4 in. NPT return, and a 3/4 in. NPT load-sensing pump drain port.
A quarter-turn chrome filler breather with a wire basket strainer and sight fluid level gauge are also included.
Capacity | 37 Gal |
Color | Black |
Depth | 22 Inches |
Finish | Powder Coat |
Height | 23 Inches |
Integral Brackets (Y/N) | Yes |
Integral Level Gauge (Y/N) | Yes |
Material | Carbon Steel |
Material Gauge | 12 |
Mount Position | Side Mount |
Oil Level Gauge (Y/N) | Yes |
Reservoir Shape | Cube |
Temperature Gauge (Y/N) | No |
Width | 23 Inches |
Usable Capacity | 37 Gal |
Number Of Suction Ports | 1 |
Suction Port Size | 2 NPT |
Magnetic Drain Plug (Y/N) | Yes |
Return Line Filter Included (Y/N) | No |
Return Line Filter Rating | HFA5S µm |
Additional Port Size | 1-1/4 NPT | 1/2 NPT | 3/4 NPT |
Product Code | 638 |
Sell Pack Type | Unit |
Shipping Weight | 103 Lbs |
UPC | 724920038003 |
