Bolt, Square Head, 3/8"-16 x 2-1/2", (2 Required for Packing Gland), UnitedBuilt M3ZRM S23762MS - UnitedBuilt Equipment

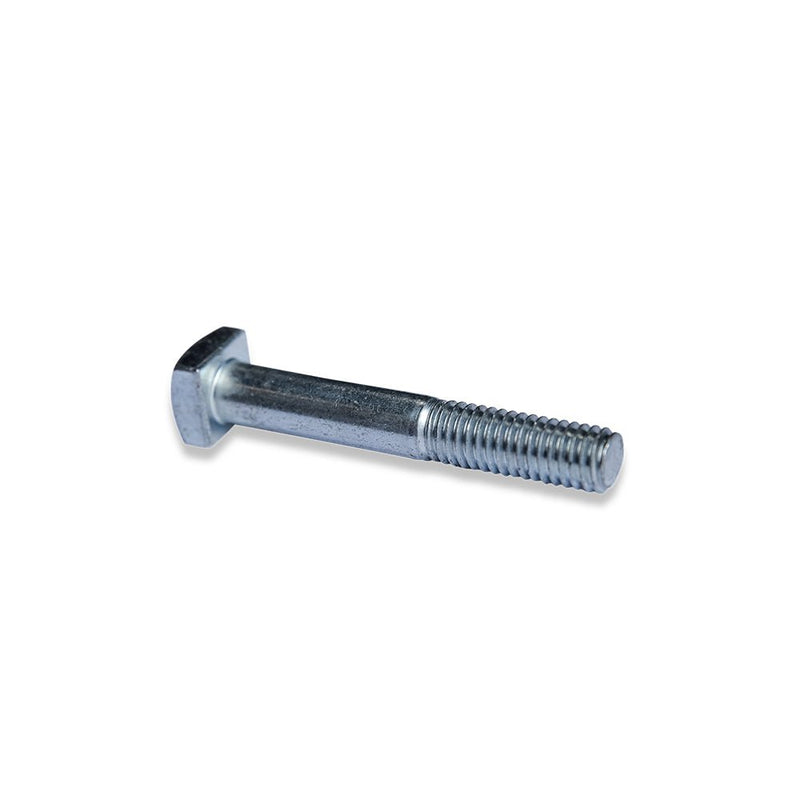

Packing Gland Square-Head Bolt, UnitedBuilt S23762MS, 3/8-16 x 2-1/2 in.

SKU 0000970
Brand UnitedBuilt
Availability:
794 in stock | Available on backorder
$0.00 - $0.00
$0.00
$6.68
$6.68 - $6.68
$6.68

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

The UnitedBuilt S23762MS packing-gland bolt is a square-head, 3/8-16 x 2-1/2 in. fastener for the M3ZRM rope-packing arrangement. It is used at the packing gland rather than at the volute-case fastening positions.

The pump assembly requires two of these bolts. That is the installation quantity, not a two-bolt package claim. Order the quantity needed for your repair and select any replacement nuts, gland or packing separately.

Match the gland fastener

The square head and 2-1/2 in. length distinguish this bolt from shorter case fasteners. Use the exact S23762MS part number and gland location when matching the existing hardware. A bolt with the same thread size but a different head or length is not automatically the correct substitute.

Technical specifications

Specification Detail
Part number S23762MS
Head style Square head
Thread 3/8-16
Length 2-1/2 in.
Service quantity Two bolts per packing-gland assembly

Application and component selection

Selection Application
Pump construction UnitedBuilt M3ZRM, rope packing
Repair position Item 800B: packing-gland bolt
Related nut S23343MS, 3/8-16 brass hex nut, selected separately

Before ordering

Check What to confirm
Head and length Match the square-head 2-1/2 in. bolt, not a volute-case capscrew.
Order quantity Confirm the number of individual bolts needed for the repair.
Installation Follow the applicable gland adjustment and assembly instructions; do not assume a tightening torque from thread size.

Need help selecting the correct replacement part? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pump model, existing part number or photos.
