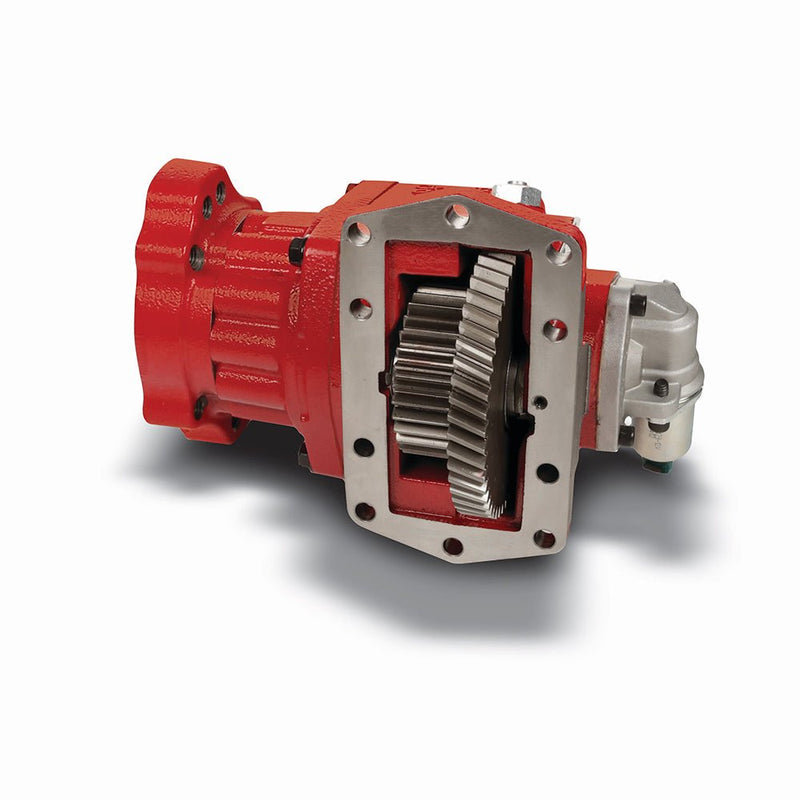

The Chelsea 281GMFJP-B5XD 281 Series Power Take-Off is a hydraulic PowerShift, or hot shift, PTO built for automatic transmission applications with a standard 10-bolt PTO opening. It is designed to provide dependable auxiliary power for hydraulic systems and driveline-driven equipment on heavy-duty trucks.
This PTO features a 35/37 gear ratio, pressure lubrication, and a round standard output shaft measuring 1-1/4" with a 5/16" key. The hydraulic shift design allows PTO engagement for compatible automatic transmission applications where a hot shift PTO is required.
The Chelsea 281 Series is commonly used in demanding vocational truck applications. For water truck builds and repairs, this PTO can be used as part of the power system that drives compatible hydraulic equipment, pump drives, spray system controls, and other auxiliary equipment when the transmission, ratio, shaft output, rotation, and installation requirements match.
Always confirm transmission compatibility, PTO aperture, mounting arrangement, gear ratio, output shaft style, rotation, clearance, and hydraulic system requirements before installation.
Key Features
| Feature |
Details |
| Chelsea 281 Series PTO |
Heavy-duty Power Take-Off for vocational truck applications |
| Hydraulic PowerShift |
Hot shift design for compatible automatic transmissions |
| 10-Bolt Mount |
Fits compatible transmissions with a standard 10-bolt PTO opening |
| 35/37 Gear Ratio |
Supports matched auxiliary equipment speed requirements |
| Round Standard Shaft |
1-1/4" keyed shaft with 5/16" keyway |
| Pressure Lubrication |
Designed for pressure-lube PTO applications |
| Continuous-Duty Design |
Built for demanding work truck operating conditions |
| Water Truck Power Applications |
Suitable for compatible water truck driveshaft applications |
Specifications
| Attribute |
Details |
| Brand |
Chelsea / Parker Chelsea |
| Part Number |
281GMFJP-B5XD |
| Series |
281 Series |
| Product Type |
Power Take-Off (PTO) |
| Shift Type |
Hydraulic PowerShift / Hot Shift |
| Mounting Type |
10-Bolt |
| Gear Ratio |
35/37 |
| Output Type |
Driveline / round shaft output |
| Output Shaft |
Round standard shaft |
| Shaft Size |
1-1/4" |
| Keyway |
5/16" key |
| Input Option |
Allison automatic transmission applications |
| Lube Option |
Pressure lube |
| Arrangement |
5 arrangement |
| Continuous Operation |
Yes |
| Continuous Torque |
318 ft-lb for this configuration |
| Continuous HP |
30 HP at 500 RPM / 61 HP at 1000 RPM |
| Intermittent HP |
30 HP at 500 RPM / 61 HP at 1000 RPM |
| Compatible Equipment |
Confirm by transmission, application page, and installation requirements |
Applications
| Application |
Use Case |
| Water Truck Hydraulic Systems |
Provides auxiliary power for compatible hydraulic circuits |
| Water Truck Pump Drive Systems |
Supports PTO-driven equipment when shaft output and ratio match |
| Dust Control Trucks |
Powers auxiliary equipment on compatible work truck builds |
| Construction Water Trucks |
Suitable for heavy-duty auxiliary drive applications |
| Vocational Trucks |
Used for hydraulic and driveline-powered equipment |
| Allison Transmission Applications |
Designed for compatible automatic transmissions with 10-bolt PTO openings |
| Truck Equipment Upfits |
Supports PTO-driven accessories and hydraulic system installations |
| PTO Replacement & Repair |
Replacement option when part number and configuration match |
