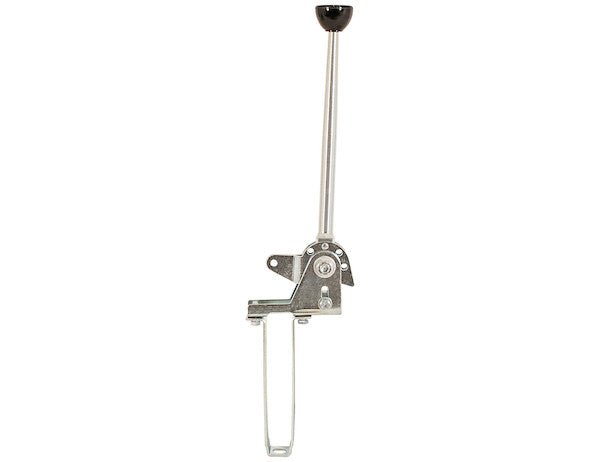

Buyers Products HDCL352 is a heavy-duty manual cable control lever for 5200 Series cables with 1/4-28 threaded ends and 3 inches of travel. It is designed for PTO and hoist control applications and mounts through the vehicle floor. Use it when a compatible cable-operated control is needed in place of a solid-rod arrangement.
The forged handle can be placed in four positions to suit the installation. An adjustable lever stop limits movement to the required travel, helping prevent stress at the cable output end. The zinc-plated steel construction provides corrosion resistance, and the polymer knob gives the operator a hand grip.
| Feature | Benefit |
|---|---|
| Four-position forged handle | Allows the handle position to suit the mounting arrangement. |
| Adjustable lever stop | Limits travel to help prevent stress at the cable output end. |
| Floor-mount design | Provides a mounting arrangement for compatible vehicle control installations. |
| Zinc-plated steel construction | Resists corrosion on the steel control components. |
| Specification | Detail |
|---|---|
| Manufacturer part number | HDCL352 |
| Control series | HDCL Series |
| Compatible cable series | 5200 Series |
| Cable thread / travel | 1/4-28 / 3 in. |
| Number of levers | 1 |
| Detent | None |
| Construction | Carbon steel with zinc plating; polymer knob |
| Air PTO / backlight | No / no |
| Check | Requirement |
|---|---|
| Cable selection | Use a compatible 5200 Series cable with 1/4-28 threads and 3-inch travel; select the cable separately. |
| Floor location | Check the mounting area, below-floor cable route and handle clearance. |
| Travel adjustment | Set the lever stop to the travel required by the driven equipment. |
| Control behavior | This model has no detent; confirm that a non-detented manual lever suits the application. |
Need help matching a cable control lever? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your equipment model, cable part number and required travel.
| Weight | 4.0 lb |
|---|
