Outer Bearing Cap, Cast Iron, UnitedBuilt S19914MS for M3ZRM(S)

SKU 0000968
Brand UnitedBuilt
Availability:
7 in stock | Available on backorder
$0.00 - $0.00
$0.00
$109.50
$109.50 - $109.50
$109.50

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

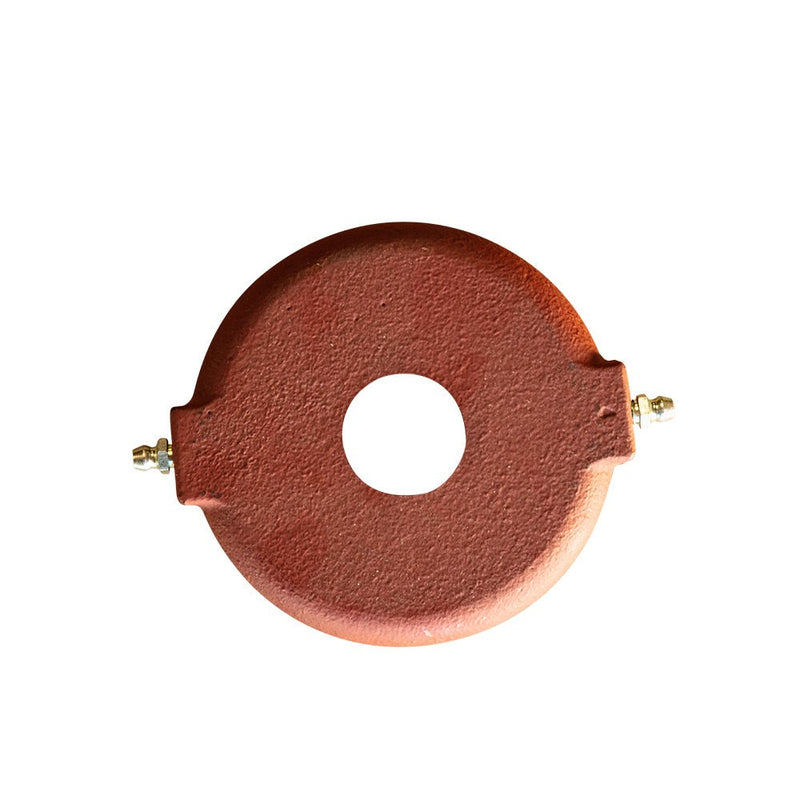

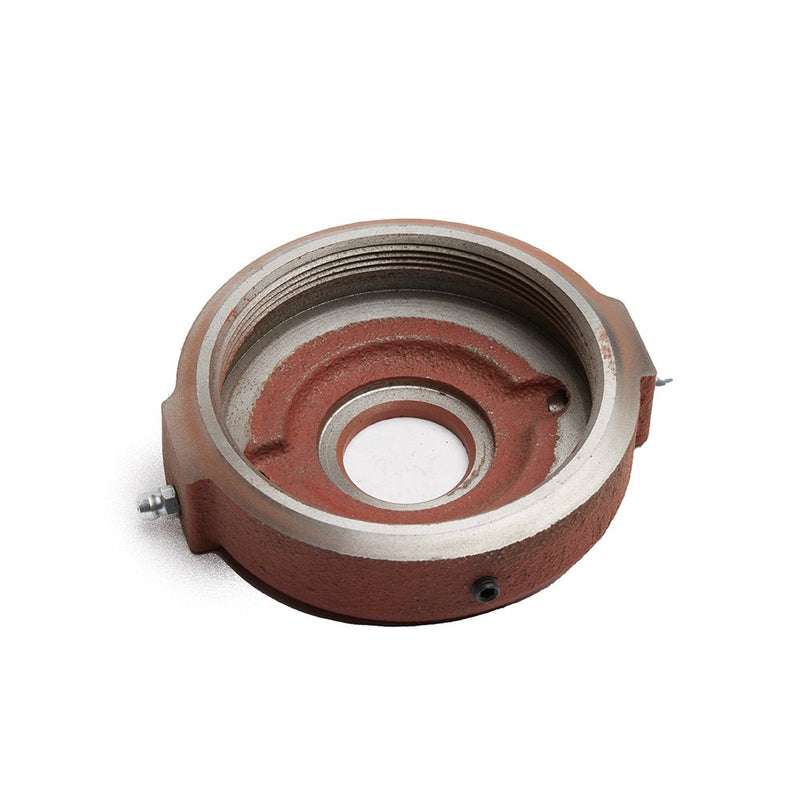

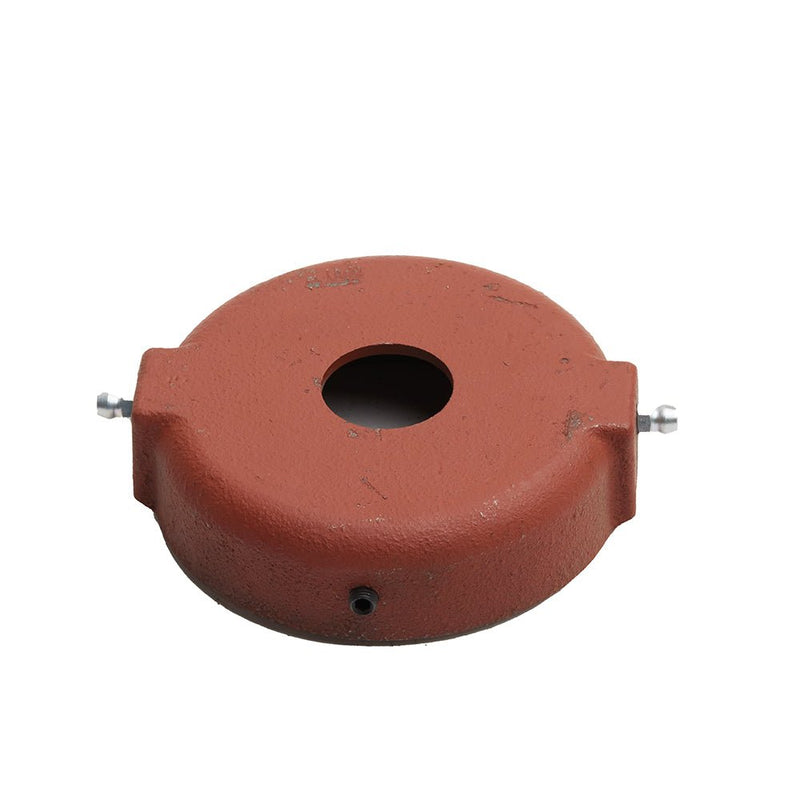

The UnitedBuilt S19914MS outer bearing cap is a cast iron service component for M3ZRM and M3ZRMS pump bearing frames. It helps retain bearing grease and keep dirt and debris out of the bearing area.

Identify the outer cap before ordering

S19914MS serves the outer bearing-cap position in both clockwise and counterclockwise arrangements, with either rope packing or a mechanical seal. The inner grease cap is a different part, S19033MS. Confirming which end of the bearing assembly needs service avoids confusing two caps that perform related roles.

Technical specifications

Specification Details
Manufacturer UnitedBuilt
Part number S19914MS
Component Outer bearing cap
Material Cast iron
Service position Item 37

Pump and component selection

Application Selection
M3ZRM rope-seal pumps B66899MS clockwise; B66895MS counterclockwise.
M3ZRMS mechanical-seal pumps B68417MS clockwise; B68416MS counterclockwise.
Different bearing-area part S19033MS is the inner grease cap at item 35.

Before ordering

Check What to confirm
Cap location Match the outer-cap position and S19914MS part number.
Pump identity Confirm the complete pump model and existing bearing-frame arrangement.
Related parts Check the bearings and attaching hardware separately; this is a cap, not a bearing set or assembled frame.

Need help selecting the correct bearing cap? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pump model, cap part number or photos of the bearing frame.
