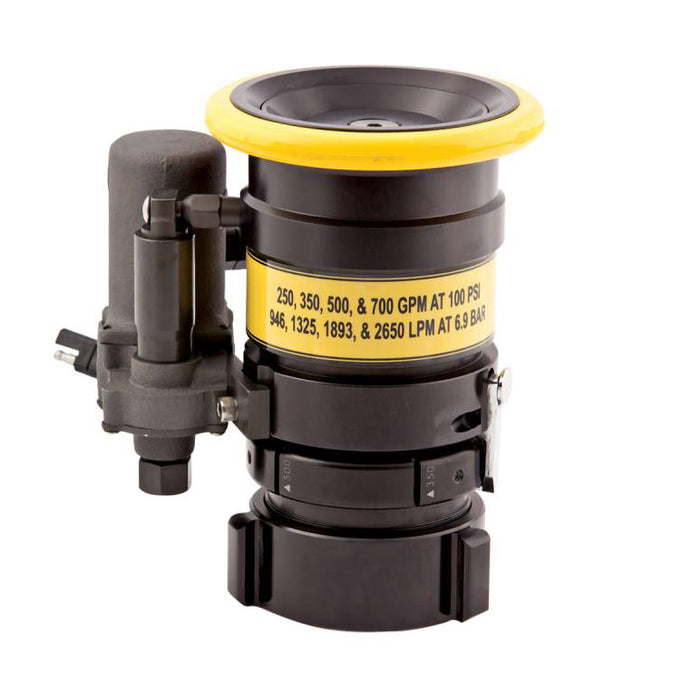

Elkhart Brass 6000-700E(D) 250-700 GPM Electric Fog-to-Stream Cannon Nozzle - 06000702

Elkhart Brass 6000-700E(D) 250-700 GPM Electric Fog-to-Stream Cannon Nozzle - 06000702

SKU 0012845
Brand Elkhart Brass
Availability:
0 in stock. Available on backorder
Save 19% Save 19%
$3,789.00
$3,789.00 - $3,789.00
$3,789.00
$3,069.00
$3,069.00 - $3,069.00
$3,069.00

Product Images

Images are for representation only and may differ from the actual product.

The Elkhart Brass 6000-700E(D) Electric Master Stream Nozzle is a selectable-flow cannon nozzle designed for high-output monitor applications, including water trucks, dust-control equipment, and Elkhart Sidewinder EXM2 systems. It provides four selectable flow settings—250, 350, 500, and 700 GPM at 100 PSI—allowing operators to match nozzle output to available pump capacity and operating conditions.

An electric actuator provides remote adjustment from straight stream through narrow fog to wide fog, while the locking flow-selector ring makes it easy to select the required discharge rate. The nozzle also includes a manual override so stream pattern can still be adjusted if electrical control is unavailable.

Built from durable lightweight aluminum for demanding mobile and industrial service, the 6000-700E(D) uses a 2-1/2" female inlet and is specifically designed for strong performance with the Elkhart Brass Sidewinder EXM2 monitor. Elkhart part number 06000702 is the 6000-700E(D) configuration used for compatible electric monitor and water-cannon systems.

Key Features

Feature Details
Selectable Flow 250, 350, 500, or 700 GPM at 100 PSI
Electric Fog-to-Stream Control Remote pattern adjustment from straight stream through narrow and wide fog
Locking Flow Selector Quick-turn selector ring helps match nozzle flow to system capacity
2-1/2" Female Inlet Fits compatible master-stream monitors and water-cannon outlets
Manual Override Allows pattern adjustment if electrical control is unavailable
Lightweight Aluminum Construction Durable design for demanding mobile and industrial service
Sidewinder EXM2 Optimized Designed for strong performance with Elkhart Brass EXM2 monitor systems

Specifications

Attribute Details
Brand Elkhart Brass
Model 6000-700E(D)
Manufacturer Part Number 06000702
Product Type Electric Selectable-Flow Master Stream / Water Cannon Nozzle
Selectable Flow Rates 250 / 350 / 500 / 700 GPM
Rated Operating Pressure 100 PSI
Stream Pattern Straight Stream to Wide Fog
Narrow Fog Pattern Approximately 30°
Wide Fog Pattern Approximately 90°
Pattern Control Electric with manual override
Inlet Size 2-1/2"
Inlet Gender Female
Construction Lightweight aluminum
Recommended Monitor Family Elkhart Brass Sidewinder EXM2

Applications

Application Use Case
Water Truck Water Cannons Selectable high-flow discharge for dust suppression, road watering, and long-range water delivery
Sidewinder EXM2 Systems High-output nozzle designed to pair with Elkhart Brass EXM2 monitors
Construction Water Trucks Remote fog-to-stream control for changing jobsite operating conditions
Mining Water Trucks High-capacity monitor nozzle for broad dust-control coverage and long-range stream applications
Industrial Water Systems Selectable master-stream output for compatible remote-controlled monitor systems
