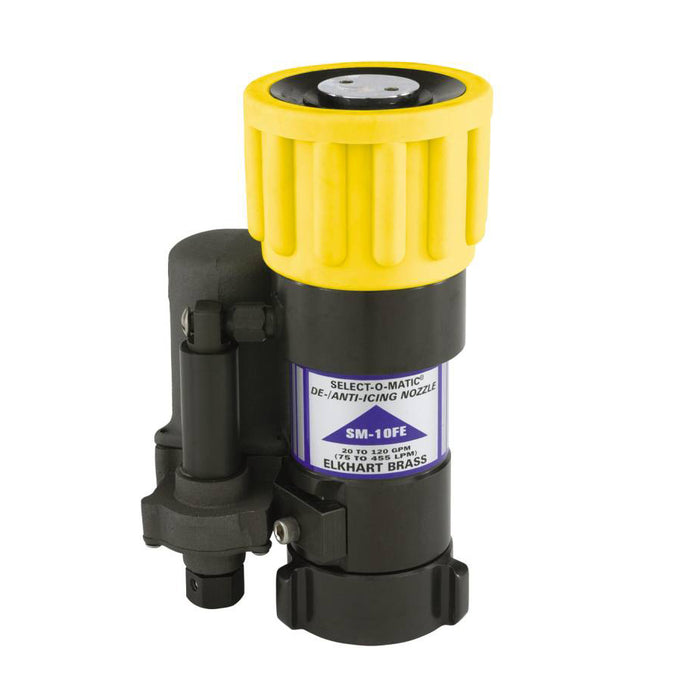

Elkhart SM-10FE(D) 20-120 GPM 2-1/2" FNHT 12V Electric Nozzle - 03817601

Elkhart SM-10FE(D) 20-120 GPM 2-1/2" FNHT 12V Electric Nozzle - 03817601

SKU 0012844
Brand Elkhart Brass
Availability:
0 in stock. Available on backorder
Save 19% Save 19%
$3,754.00
$3,754.00 - $3,754.00
$3,754.00
$3,030.00
$3,030.00 - $3,030.00
$3,030.00

Product Images

Images are for representation only and may differ from the actual product.

The Elkhart Brass SM-10FE(D) electric master stream nozzle, part number 03817601, is configured for water-truck and remote-monitor applications requiring controlled flow and adjustable stream pattern. This 12V nozzle delivers an automatic 20-120 GPM flow range at 100 PSI and uses electric fog-to-stream adjustment for convenient remote operation from the vehicle control station.

This configuration features a 2-1/2" FNHT inlet and Deutsch electrical connection. The SM-10FE(D) design uses hard-coated aluminum construction for reduced weight and corrosion resistance, with manual override capability for continued nozzle adjustment when electrical operation is unavailable.

With remotely adjustable straight-stream-to-fog performance, the SM-10FE(D) is well suited for water cannons used on construction water trucks, dust-control equipment, industrial water systems, and other applications where the operator needs dependable directional water control from a remote station.

Key Features

Feature Details
Automatic Flow 20-120 GPM operating range at 100 PSI
Electric Fog-to-Stream Control Remote electric adjustment from straight stream through fog patterns
12V Operation Designed for 12V DC vehicle electrical systems
Deutsch Connection Deutsch electrical connector for durable vehicle wiring
2-1/2" FNHT Inlet Female National Hose Thread connection for compatible monitor systems
Hard-Coated Aluminum Lightweight, corrosion-resistant construction for demanding field service
Manual Override Allows nozzle-pattern adjustment if electric operation is unavailable

Specifications

Attribute Details
Manufacturer Elkhart Brass
Manufacturer Part Number 03817601
Model SM-10FE(D)
Product Type Electric Master Stream / Water Cannon Nozzle
Flow Range 20-120 GPM
Rated Pressure 100 PSI
Inlet 2-1/2" FNHT
Voltage 12V DC
Electrical Connection Deutsch
Pattern Control Electric adjustable fog-to-stream
Construction Hard-coated aluminum
Override Manual override

Applications

Application Use Case
Water Truck Cannons Remote nozzle control for directional water discharge
Construction Water Trucks Road watering and dust-suppression applications
Mining Water Trucks Remote water-cannon operation for haul-road dust control
Industrial Water Systems Adjustable master-stream discharge where remote pattern control is required
Dust Control Equipment Variable water delivery with adjustable stream and fog patterns
