Bearing Assembly 1 - 1/2" 1185, Coxreels 8166 - UnitedBuilt Equipment

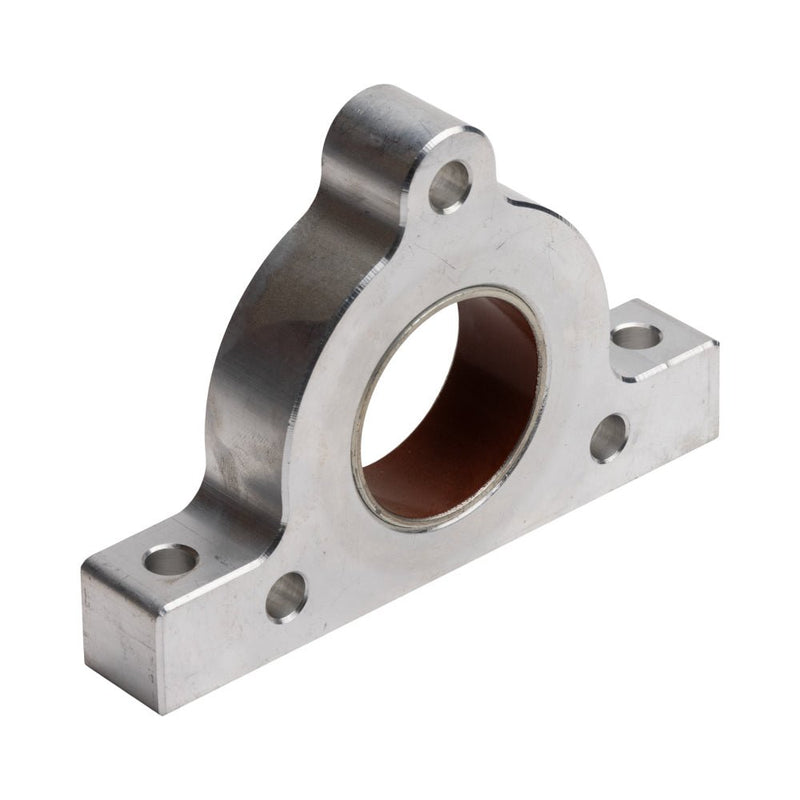

Coxreels 8166 Bearing Assembly for 1185 Hose Reels

SKU 0006818
Brand Coxreels
Availability:
8 in stock | Available on backorder
$0.00 - $0.00
$0.00
$72.00
$72.00 - $72.00
$72.00

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

The Coxreels 8166 bearing assembly supports the axle on compatible 1-1/2-inch 1185 Series hose reels. Choose it by the bearing position and swivel arrangement, as well as the reel model.

On the 1185 configuration with a 8970 in-line swivel, 8166 serves the end opposite the swivel; the swivel end uses bearing assembly 8954. The optional 90-degree swivel arrangement uses 8166 at both ends. Check the existing arrangement before replacing either bearing.

Restore the correct axle support

Feature Benefit
Replacement bearing assembly Services the axle-support component without replacing the complete reel.
Exact 8166 selection Matches the specified bearing position on compatible 1185 assemblies.

Technical specifications

Specification Detail
Manufacturer part number 8166
Component Bearing assembly
Reel application Compatible 1-1/2-inch 1185 Series configurations

Select by swivel arrangement

1185 arrangement Bearing selection
8970 in-line swivel One 8166 on the opposite end; 8954 at the swivel end.
Optional 90-degree swivel Two 8166 assemblies used per reel, one at each end.
Earlier reel revisions Match the original assembly and revision-specific parts list before ordering.

Before ordering

Check Requirement
Existing assembly Confirm the bearing number, mounting arrangement and swivel configuration.
Adjacent parts Inspect the axle, retaining rings and washers separately; they are different service parts.
Installation Release line pressure before repair. Follow the exact reel procedure for bearing alignment, retaining-ring seating and axle clearance.

Need help selecting the correct bearing assembly? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your reel model, swivel type and photos of the bearing being replaced.
