Mounting kit included; the eight frame-mounting bolts and nuts are not included.

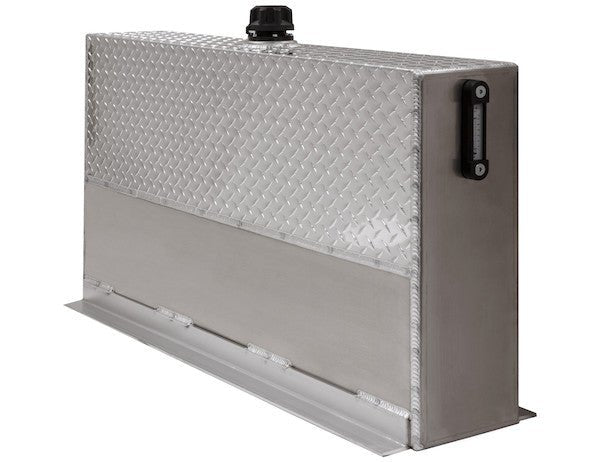

The Buyers Products UR35A 35-gallon upright aluminum hydraulic reservoir provides hydraulic oil storage in a narrow, behind-cab layout. Its aluminum construction helps reduce weight and dissipate heat, with a diamond-tread finish on the upper half of the tank.
Fully baffled construction supports oil circulation and cooling. A chrome filler breather and a combined oil-level/temperature sight gauge are included for filling and checking the reservoir. This upright configuration is used in truck and trailer hydraulic systems, including dump and walking-floor applications, when its capacity, connections and mounting arrangement meet the system requirements.
Upright storage with oil level and temperature checks
The shallow tank body helps fit hydraulic storage behind the cab. Include the mounting base and service access when checking available space: the body depth is 7.95 inches, while the base extends to 12 inches.
| Feature |
Benefit |
| Upright aluminum tank |
Combines a behind-cab layout with aluminum heat dissipation and lower weight. |
| Internal baffling |
Helps oil circulate and cool within the reservoir. |
| Level/temperature sight gauge |
Allows oil level and temperature checks at the tank. |
| Chrome filler breather cap |
Provides the reservoir fill and breather point. |
| Included spring-mount hardware |
Supplies the tank-side brackets, springs and fasteners needed for the specified mounting arrangement. |
Technical specifications
| Specification |
Detail |
| Manufacturer part number |
UR35A |
| Capacity / usable capacity |
35 gal / 35 gal |

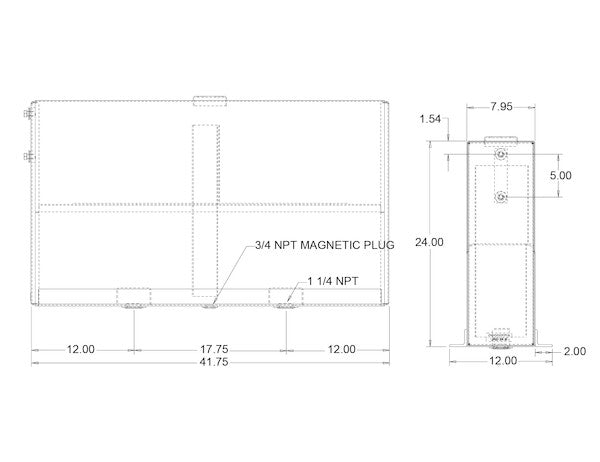

| Tank dimensions |
24 in. H × 41.75 in. W × 7.95 in. D |
| Mounting base depth |
12 in. |
| Material and finish |
Natural aluminum; diamond tread on upper half |
| Mount position |
Upright, behind cab |
| Suction port |
1-1/4 in. NPT |
| Additional connections |
1-1/4 in. NPT and 3/4 in. NPT |
| Drain plug |
3/4 in. NPT magnetic plug |
| Valve included |
No |

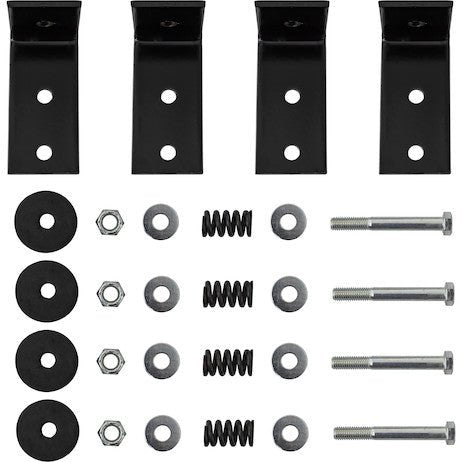

Included equipment and mounting hardware
The mounting angles attach to the truck frame using fasteners selected for the installation. The supplied long bolts, washers, rubber discs, compression springs and locknuts connect the tank to those angles. The frame fasteners are a separate requirement.
| Component |
Quantity or inclusion |
| Reservoir assembly |
One tank with baffling, filler breather, oil-level/temperature sight gauge and magnetic drain plug. |
| Mounting angles |
Four brackets, each 3 × 5 × 2.5 in. long and 1/4 in. thick. |
| Tank-mounting bolts |
Four 1/2-13 × 4 in. Grade 5 hex-head bolts. |
| Flat washers |
Eight 1/2 in. flat washers. |
| Rubber discs and compression springs |
Four rubber discs and four compression springs. |
| Tank-mounting locknuts |
Four 1/2-13 locknuts. |
| Frame fasteners |
Eight 1/2-13 bolts and matching nuts are required but not included. |
Before ordering
| Check |
Requirement |
| Oil capacity and plumbing |
Confirm 35 gal usable capacity and the 1-1/4 in. NPT connections suit your system. |
| Cab and frame clearance |
Check the 41.75 in. tank width, 24 in. height, 12 in. mounting-base depth and clearance for the filler cap, hoses and gauge. |
| Frame attachment |
Confirm the mounting location and obtain the eight required 1/2-13 frame bolts and nuts. |
| Spring-mount setup |
Follow the installation instructions, including the 1.375 in. installed spring/washer spacing shown in Figure 2. |
| Valve requirement |
Select any required valve separately; the reservoir does not include one. |
Need help confirming an upright reservoir installation? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your hydraulic application, available cab-to-body space and frame measurements.
