Split Packing Gland Set, UnitedBuilt B82468MS, Cast Iron, 1-1/8 in. Shaft

SKU 0009946
Brand UnitedBuilt
Availability:
20 in stock | Available on backorder
$0.00 - $0.00
$0.00
$60.00
$60.00 - $60.00
$60.00

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

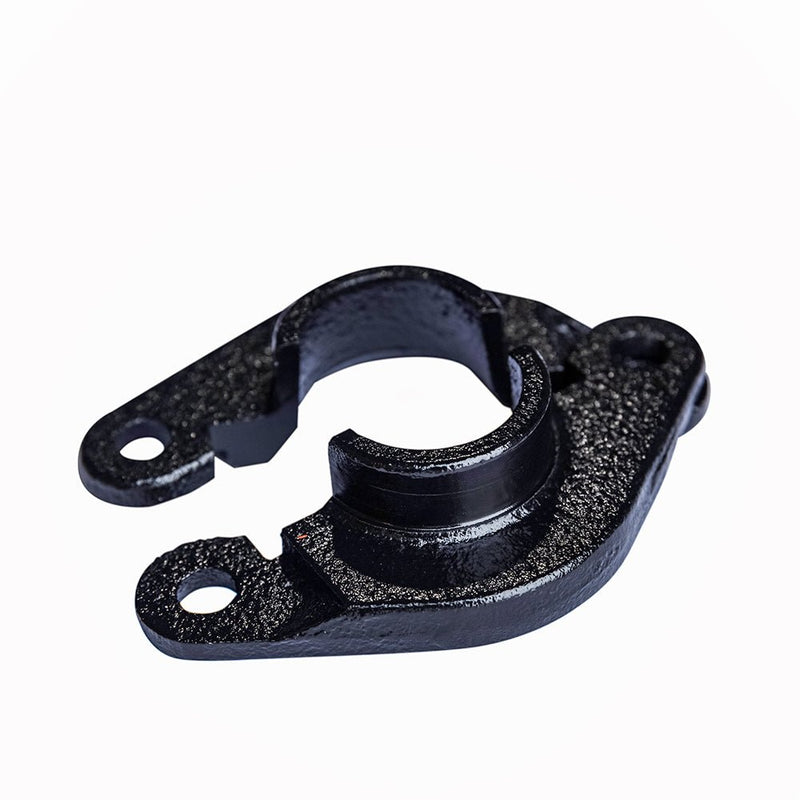

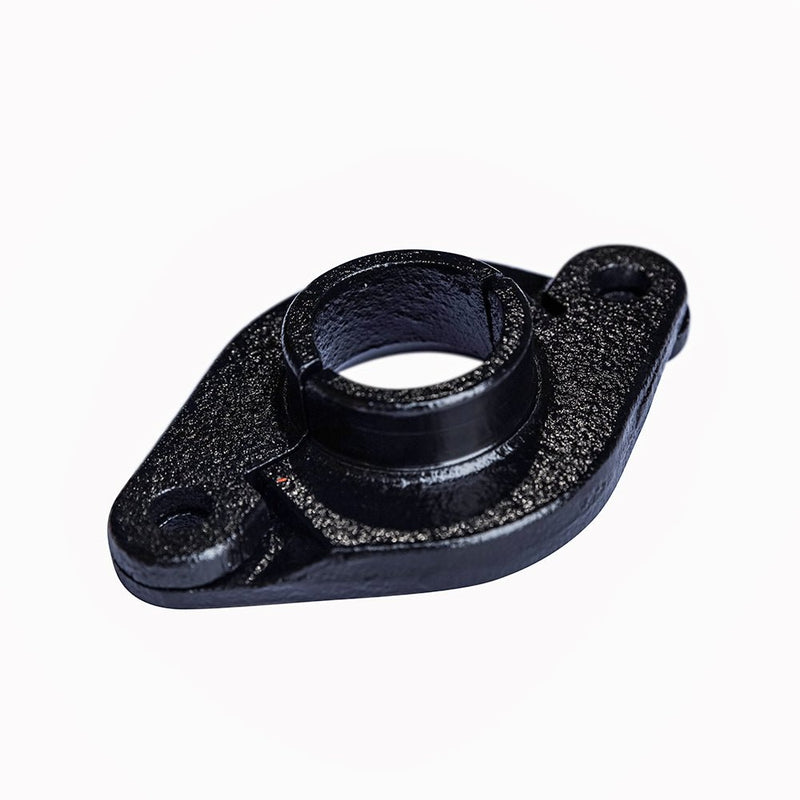

The UnitedBuilt B82468MS split packing gland set is a cast-iron replacement gland for the M3ZRM 1-1/8 in. shaft application. It works with the rope-packing arrangement and is separate from the packing rings themselves.

Order B82468MS when the gland requires replacement. This is the split gland set, not a complete rope-seal kit. Packing, gland bolts and nuts, and other sealing components must be selected separately as needed for the repair.

Keep the gland and packing separate

The split gland is part of the mechanical arrangement that acts on the rope packing. Replacing it does not renew worn packing or a damaged shaft sleeve. Review the condition of those adjoining components before ordering so the repair includes the parts actually required, without confusing a gland set with a complete reseal package.

Technical specifications

Specification Detail
Part number B82468MS
Component Split packing gland set
Material Cast iron
Shaft application 1-1/8 in.
Repair position Item 17: packing gland

Application and component selection

Selection Application
Pump construction UnitedBuilt M3ZRM, rope packing
Separate packing set S14022MS, six-piece rope packing
Separate gland hardware S23762MS bolts and S23343MS nuts

Before ordering

Check What to confirm
Pump configuration Match the rope-packing construction and exact gland part number.
Size reference The 1-1/8 in. value is the shaft application, not a confirmed gland-bore measurement.
Assembly and adjustment Follow the pump service instructions and confirm the separate packing and hardware needed.

Need help selecting the correct replacement part? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pump model, existing part number or photos.
