Power Take Off (PTO), Powershift Hydraulic (Hot Shift), Electric 12V Over Hydraulic, 10-Bolt, SAE Type 1 1/4" Round Shaft, Input Gear: 63 - Allison, Internal PTO Ratio 122%, Assembly Arrangement Left Forward, Eaton Bezares PT3252POE633SE, 3252 Series

Power Take Off (PTO), Powershift Hydraulic (Hot Shift), Electric 12V Over Hydraulic, 10-Bolt, SAE Type 1 1/4" Round Shaft, Input Gear: 63 - Allison, Internal PTO Ratio 122%, Assembly Arrangement Left Forward, Eaton Bezares PT3252POE633SE, 3252 Series

SKU 0011864
Brand EATON
Availability:
1 in stock | Available on backorder
Save 17% Save 17%
$3,115.07
$3,115.07 - $3,115.07
$3,115.07
$2,570.00
$2,570.00 - $2,570.00
$2,570.00

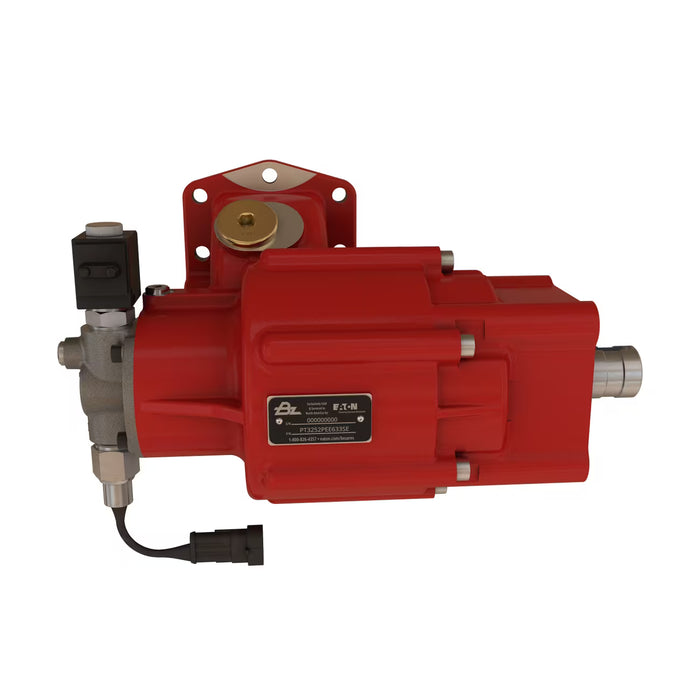

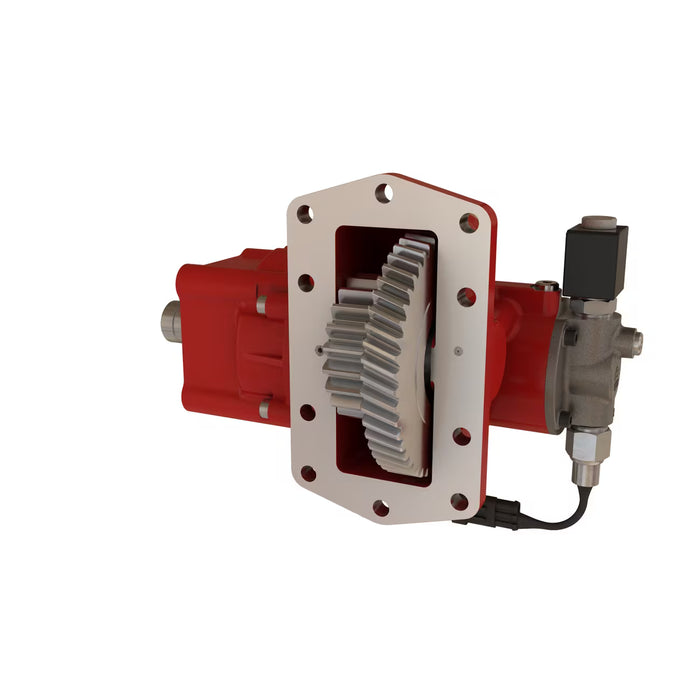

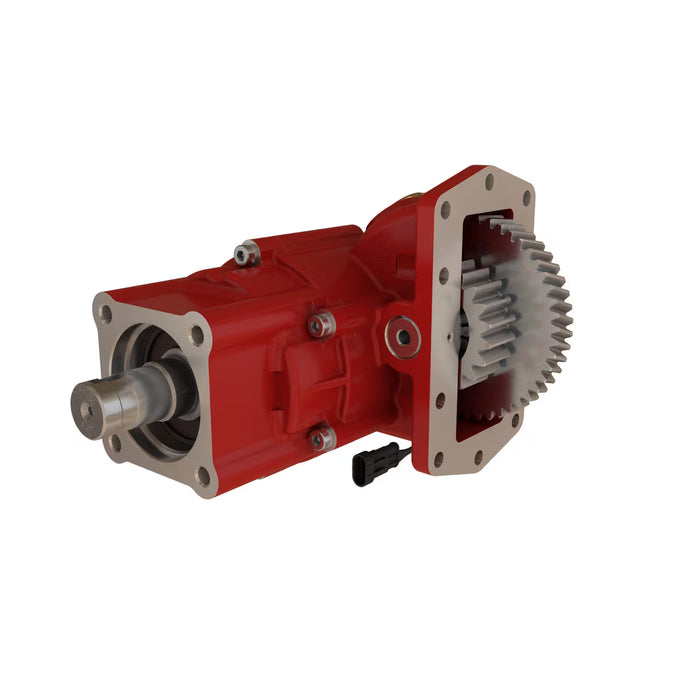

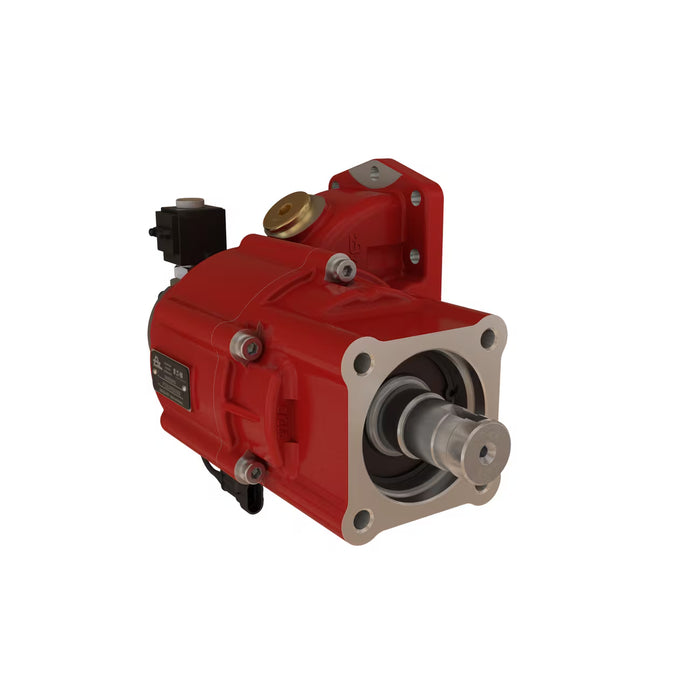

Product Images

Images are for representation only and may differ from the actual product.

PT3252POE633SE - Eaton Bezares 3252 Power Take Off , 3252 Series Series PTO , Input Gear: 63 - Allison , Internal Ratio: 1.22 , Shifter Type: E - Electric 12V. Over hydraulic

General specifications

Product Name
Eaton Bezares 3252 Series PTO
Catalog Number
PT3252POE633SE
UPC
840379307559
Certifications
Not Applicable
Product Type
PTO



Product specifications

Bolt count
10 Bolt
Series
Allison
Versions (available options)
G - Greasable Idler Shaft
Intermittent torque - max
270 Ft-Lb
Intermittent power - max
51 HP
Continuous torque - max
200 Ft-Lb
Continuous power - max
38 HP
Output type
SE - SAE Type 1 1/4" round shaft
Assembly arrangement
3 - Left, forward
Shifter type
E - Electric 12V. Over hydraulic
Input gear
63 - Allison
Internal PTO ratio
122%
Transmission model
3000 EVS
3000 RDS
3500 RDS
MD-3066P
4000 MH
4000 TRV
4700 EVS
4800 EVS
MD 3060P W-TOP OPENING
B400
HD 4060P
MD 3560P W-TOP OPENING
4000 RDS
4500 EVS
4500 RDS
MD 3060P
MD 3070PT
3000 MH
3200 TRV
4000 EVS
4700 RDS
MD 3066P W-TOP OPENING
3000 TRV
B500
B300
HD 4560P
3500 EVS
4700 OFS
MD 3560P
HD-4070P
Transmission manufacturer
Clark
Allison
