Rope Packing Set (6 Pieces), UnitedBuilt M3ZRM S14022MS - UnitedBuilt Equipment

Rope Packing Set, UnitedBuilt S14022MS, 6 Pieces, 1/4 in. Graphite/PTFE

SKU 0003924
Brand UnitedBuilt
Availability:
60 in stock | Available on backorder
$0.00 - $0.00
$0.00
$27.75
$27.75 - $27.75
$27.75

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

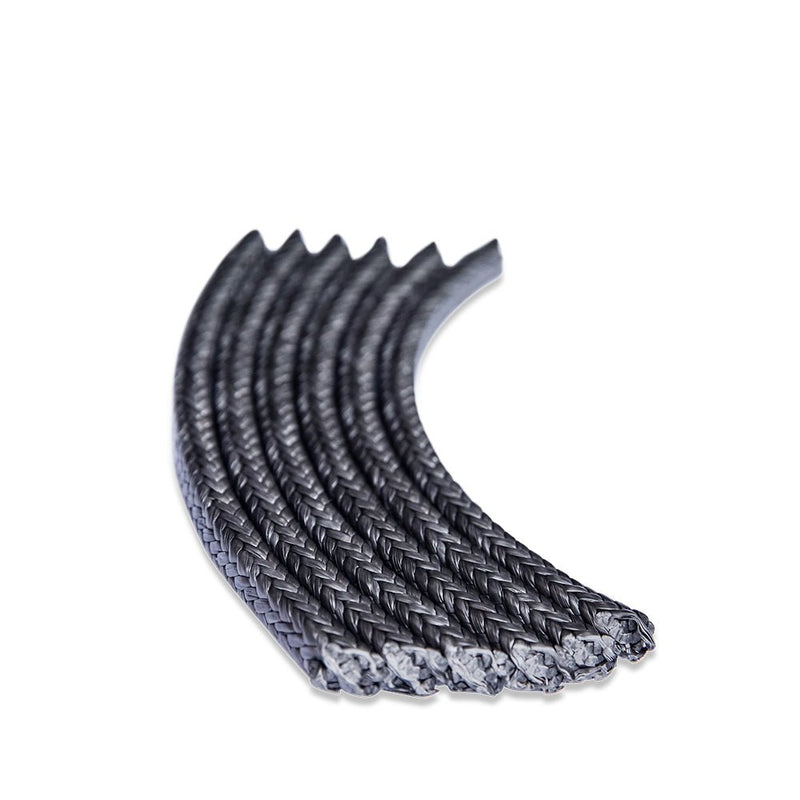

The UnitedBuilt S14022MS rope packing set contains six pieces of 1/4 in. square braided Graphite/PTFE packing for the M3ZRM rope-seal arrangement. Made from Palmetto Style 1382 interwoven ePTFE/graphite packing with an inert lubricant. It is the packing component used around the shaft-sleeve area, not a mechanical shaft seal.

Select S14022MS when renewing the rope packing. This set is not the complete pump reseal kit; the split gland, gland bolts and nuts, volute gasket, grease cap and water slinger are separate components.

Renew the packing without confusing seal types

The six-piece set is intended for the rope-packing construction. The gland and its hardware work with the packing but do not become part of this set merely because they are serviced at the same time. Confirm the existing seal arrangement before ordering, especially if the pump model or replacement history is uncertain.

Technical specifications

Specification Detail
Part number S14022MS
Included packing Six pieces
Packing cross-section 1/4 in. square
Construction Palmetto Style 1382 interwoven ePTFE/graphite packing with an inert lubricant
Repair position Item 13: rope packing

Application and component selection

Selection Application
Pump application UnitedBuilt M3ZRM, rope-seal construction
Separate gland B82468MS split packing gland
Different sealing system M3ZRMS mechanical-seal components are not this packing set

Before ordering

Check What to confirm
Seal construction Confirm the pump uses rope packing, not a mechanical seal.
Related parts Inspect the sleeve and gland and select any required hardware separately.
Service conditions Confirm suitability before changing the pumped liquid; follow the pump packing-installation and adjustment instructions.

Need help selecting the correct replacement part? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pump model, existing part number or photos.
