Images are for representation only and may differ from the actual product.

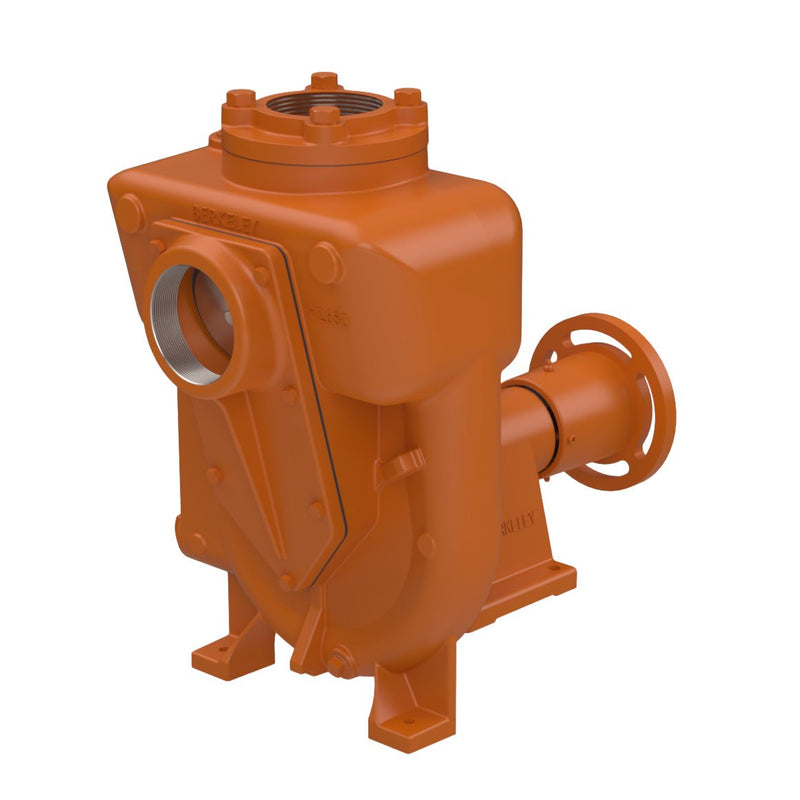

The Berkeley B69876 B4ZRKS is a genuine Berkeley OEM 4x4 self-priming centrifugal pump built for demanding water-truck and dust-control applications. Its cast-iron case and impeller, heavy-duty frame-mounted design, clockwise hydraulic-drive configuration and mechanical shaft seal support dependable high-volume water transfer and spray-system operation.
A 4-inch female NPT suction feeds the pump, while the discharge is supplied with a removable 3-inch female NPT companion flange. The companion flange can be removed and replaced with another compatible 3-inch Class 125 flange, including a slip-on raised-face weld flange, to match the plumbing installation.
The self-priming design incorporates an internal flapper-style check valve that helps retain water in the pump case and supports automatic repriming after the initial fill. The genuine Berkeley B69876 configuration preserves the specified B4ZRKS component fit and service compatibility.
| Feature | Configuration |
|---|---|
| Manufacturer | Berkeley by Pentair |
| Model | B4ZRKS |
| Manufacturer Part Number | B69876 |
| Pump Type | Single-stage self-priming centrifugal pump |
| Nominal Pump Size | 4 x 4 x 9 |
| Drive Configuration | Hydraulic, clockwise rotation |
| Specification | Detail |
|---|---|
| Suction Connection | 4-inch female NPT |
| Pump Discharge | 3-inch Class 125 ANSI flange |
| Supplied Discharge Adapter | Removable 3-inch female NPT companion flange |
| Alternate Discharge Connection | Accepts a compatible 3-inch Class 125 companion flange |
| Shaft Seal | Mechanical seal |
| Impeller | Cast iron, 9.12 x 1.00 inches |
| Frame | Heavy-duty Z-series bearing frame |
| Internal Check Valve | Flapper-style check valve |
| Pump Speed | Flow | Total Dynamic Head | NPSH Required |
|---|---|---|---|
| 2,000 RPM | 450 GPM | 95 ft | 8 ft |
| 2,000 RPM | 550 GPM | 85 ft | 9 ft |
Performance depends on pump speed, hydraulic-motor selection, available hydraulic flow and pressure, suction conditions and total system resistance. Size the hydraulic drive using the required pump RPM, brake horsepower and torque from the applicable Berkeley performance curve.
| Application | Use |
|---|---|
| Water Trucks | Tank filling, water transfer and spray-system supply |
| Dust-Control Equipment | Supplying water to spray bars, spray heads and monitors |
| Construction and Mining | High-volume clean-water handling |
| Municipal Equipment | Road-maintenance and dust-suppression systems |
| Industrial Water Transfer | Self-priming transfer from tanks or approved water sources |
| Check | Requirement |
|---|---|
| Pump Identity | Confirm Berkeley B69876 and model B4ZRKS on the pump nameplate |
| Connections | Confirm 4-inch female NPT suction and the required 3-inch Class 125 discharge companion flange |
| Rotation | Confirm clockwise rotation from the pump-drive end |
| Hydraulic Motor | Match the motor to available hydraulic flow and pressure and the required pump speed and torque |
| Hydraulic Interface | Berkeley specifies an SAE J744C mounting flange with a Size B, 13-tooth, 16/32-pitch spline |
| Suction Conditions | Available NPSH must exceed the pump's required NPSH |
| Piping | Independently support and naturally align piping to prevent strain on the pump case |
| Initial Priming | Fill the pump case completely with water before the first startup |
| Dry Operation | Never operate the pump dry |
| Manufacturer part number | B69876 |
|---|---|
| Model Number | B4ZRKS |
| Material | Cast Iron |
| Connection | Female NPT x Female NPT |
| Seal Type | Mechanical Seal |
| Seal Material | Ceramic |
| Finish | Rust Inhibiting Orange Paint |
| Rotation | Clockwise (CW) |
| Weight | 190.0 lb |
| Documentation |
|---|

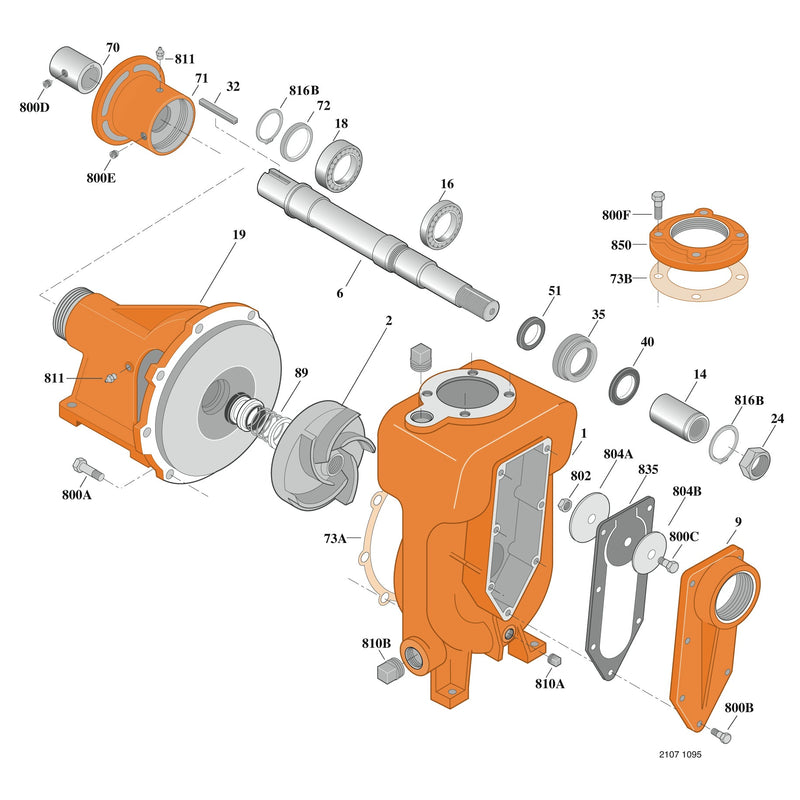

Berkeley B4ZRKS B69876 pump · FM/SP page 40.2; March 4, 2013; supersedes 01/01/04; S4855BK
Optional Seal Kit (SKU 0009808) — 1 each: S19033MS (items 35 & 51), S05126MS gasket, S12260MS slinger and S32690MS seal
Used in assembly: 1
Optional repair kit; use instead of ordering these components separately. Includes 1 × UnitedBuilt S19033MS, which replaces both items 35 and 51; 1 × S05126MS gasket; 1 × S12260MS water slinger; and 1 × S32690MS mechanical seal. Quantity to order counts complete kits. Not illustrated as a separate item in the original diagram. Uses the existing catalog kit purchase flow.
View product and purchase optionsCase, Volute
Used in assembly: 1
Request a quote. Enable JavaScript to prepare a draft from this part.
Impeller
Used in assembly: 1
View product and purchase optionsShaft
Used in assembly: 1
The source does not state an assembly quantity for this row; no quantity is inferred from the drawing. Part number resolved from Table I for B/M B69876: shaft L07139. Source Note 1 states the pump shaft is sold in shaft replacement kit B80703 only; do not treat the bare shaft as a separately orderable part. Berkeley L07139 shaft is sold only in shaft replacement kit B80703 according to the source. The catalog offers UnitedBuilt B80703MS for B4ZRKS CW mechanical-seal service; confirm kit contents and interchangeability before ordering. The bare shaft is not offered separately here. The source specifies shaft L07139 is sold only in shaft replacement kit B80703. Purchase quantity counts complete kits, not individual shafts.
View product and purchase optionsCover, Suction
Used in assembly: 1
View product and purchase optionsSleeve, Shaft
Used in assembly: 1
The UnitedBuilt S39242MS shaft sleeve is a stainless steel replacement component for the M3ZRM rope-seal and M3ZRMS mechanical-seal pump assemblies below. It is the sleeve around the shaft, not the complete shaft assembly.
View product and purchase optionsBearing, Ball
Used in assembly: 1
View product and purchase optionsBearing, Ball
Used in assembly: 1
View product and purchase optionsFrame
Used in assembly: 1
The UnitedBuilt H04007MS mechanical-seal bearing frame is a cast-iron replacement frame for the M3ZRMS pump arrangement. It supports the bearing-frame portion of the pump and is selected by the mechanical-seal configuration, not simply by the 4x3 pump size. Choose H04007MS when replacing the mechanical-seal frame. This is the frame component, not a complete powerhead; the shaft assembly, bearings, impeller and seal are separate repair components.
View product and purchase optionsNut, Hex Jam
Used in assembly: 1
View product and purchase optionsKey, 1/4x1"
Used in assembly: 1
View product and purchase optionsInner Bearing Cap — one S19033MS replaces items 35 & 51; order 1 total
Used in assembly: 1
Merchant confirmed: one UnitedBuilt S19033MS (SKU 0009397) replaces both Berkeley item 35 (M10213) and item 51 (M10216) on B69876. The quantity of 1 is shared across both callouts; order one replacement total, not one per row. Also included, quantity 1, in optional Seal Kit SKU 0009808.
View product and purchase optionsSlinger, Water
Used in assembly: 1
The UnitedBuilt S12260MS water slinger is a polyurethane replacement component for the M3ZRM rope-seal and M3ZRMS mechanical-seal pumps below. It occupies the water-slinger position in the pump service assembly.
View product and purchase optionsSeal, Oil — one S19033MS replaces items 35 & 51; order 1 total
Used in assembly: 1
Merchant confirmed: one UnitedBuilt S19033MS (SKU 0009397) replaces both Berkeley item 35 (M10213) and item 51 (M10216) on B69876. The quantity of 1 is shared across both callouts; order one replacement total, not one per row. Also included, quantity 1, in optional Seal Kit SKU 0009808.
View product and purchase optionsCoupling, Shaft
Used in assembly: 1
The UnitedBuilt S30636MS hydraulic shaft coupler joins two male shafts: an SAE B 7/8-inch, 13-tooth splined shaft and a 1-1/8-inch round shaft with a 1/4-inch key. Use it when replacing a coupling in a hydraulic-drive water-pump assembly that requires this shaft-to-shaft connection. Precision machined in the USA from 4140 steel to ASTM A108 and heat treated to 28–32 HRC, this is the individual shaft coupler, not a complete hydraulic drive or pump assembly. Match both shaft interfaces and the installation space before ordering.
View product and purchase optionsBracket, Hydraulic Motor*
Used in assembly: 1
Grease fitting and set screw included installed. Coupler and shaft key sold separately or as a kit.
View product and purchase optionsRing, Thrust
Used in assembly: 1
View product and purchase optionsGasket, Case
Used in assembly: 1
View product and purchase optionsGasket, Blind Flange
Used in assembly: 1
View product and purchase optionsSeal, Mechanical Shaft
Used in assembly: 1
The UnitedBuilt S32690MS mechanical seal is a 1-1/8-inch Type C replacement sealing component for the M3ZRMS water pumps listed below. It serves the mechanical-seal configuration, rather than the rope-packing arrangement used in M3ZRM pumps.
View product and purchase optionsCapscrew, Hex 3/8-16x1" (8 Req.)
Used in assembly: 8
The source explicitly states 8 required for this row. This is an assembly count, not an order quantity or package size. Catalog replacement is UnitedBuilt S26826MS, 3/8-16 x 1 inch. Source assembly quantity 8 is independent of order quantity.
View product and purchase optionsCapscrew, Hex 3/8-16x1-1/4" (7 Req.)
Used in assembly: 7
The source explicitly states 7 required for this row. This is an assembly count, not an order quantity or package size.
Request a quote. Enable JavaScript to prepare a draft from this part.
Capscrew, Hex 3/8-16x3/4"
Used in assembly: 1
View product and purchase optionsSet Screw, Hex 1/2"
Used in assembly: 1
Request a quote. Enable JavaScript to prepare a draft from this part.
Set Screw, Hex 5/8" (2 Req.)
Used in assembly: 2
The source explicitly states 2 required for this row. This is an assembly count, not an order quantity or package size.
Request a quote. Enable JavaScript to prepare a draft from this part.
Capscrew, Hex 5/8-11x1-3/4" (4 Req.)
Used in assembly: 4
The source explicitly states 4 required for this row. This is an assembly count, not an order quantity or package size.
Request a quote. Enable JavaScript to prepare a draft from this part.
Nut, Hex 3/8-16
Used in assembly: 1
View product and purchase optionsWeight, Clack
Used in assembly: 1
View product and purchase optionsWeight, Clack
Used in assembly: 1
View product and purchase optionsPlug, Pipe 1/2" NPT
Used in assembly: 1
View product and purchase optionsPlug, Pipe 1-1/2" NPT (2 Req.)
Used in assembly: 2
The source explicitly states 2 required for this row. This is an assembly count, not an order quantity or package size.
Request a quote. Enable JavaScript to prepare a draft from this part.
Fitting, Grease (3 Req.)
Used in assembly: 3
The source explicitly states 3 required for this row. This is an assembly count, not an order quantity or package size. Two printed 811 labels are present, while the parts list states three required. One representative marker covers the grouped row; retain the stated count of three without multiplying by visible symbols.
Request a quote. Enable JavaScript to prepare a draft from this part.
Ring, Retaining External
Used in assembly: 1
The selected diagram labels both retaining-ring locations 816B, while the source parts list labels both rows 816. S23009 and S23010 remain distinct parts; their individual location assignment is not established. Both rows share the same representative bubble and chooser.
View product and purchase optionsRing, Retaining
Used in assembly: 1
The selected diagram labels both retaining-ring locations 816B, while the source parts list labels both rows 816. S23009 and S23010 remain distinct parts; their individual location assignment is not established. Both rows share the same representative bubble and chooser.
View product and purchase optionsClack, Rubber
Used in assembly: 1
View product and purchase optionsFlange, Companion
Used in assembly: 1
Catalog part unavailable. Its product or exact variant may no longer be available.
Spacer, Impeller
Used in assembly: 1
Not illustrated in the selected diagram.
