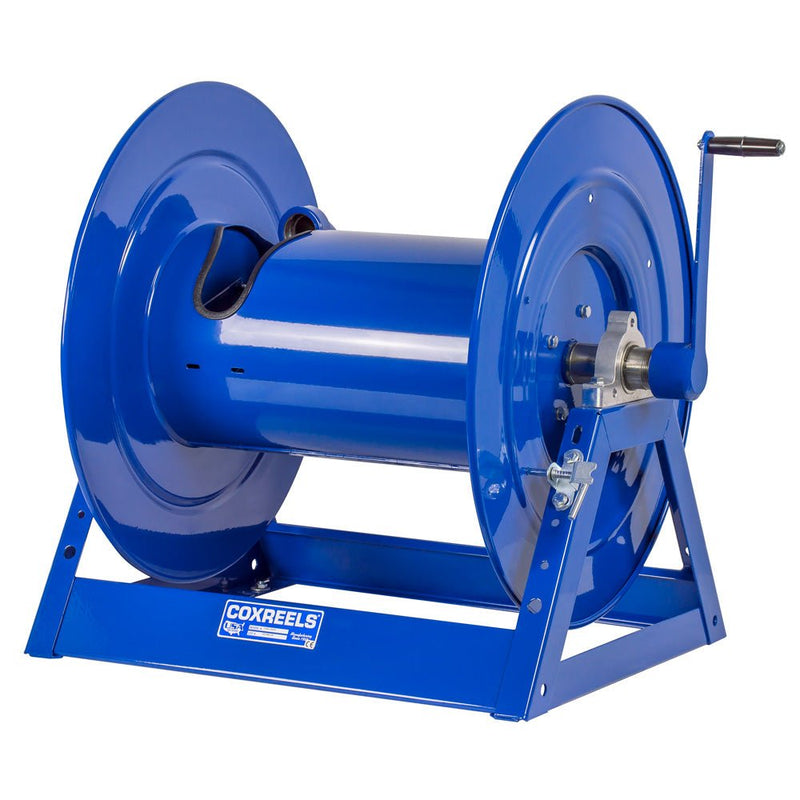

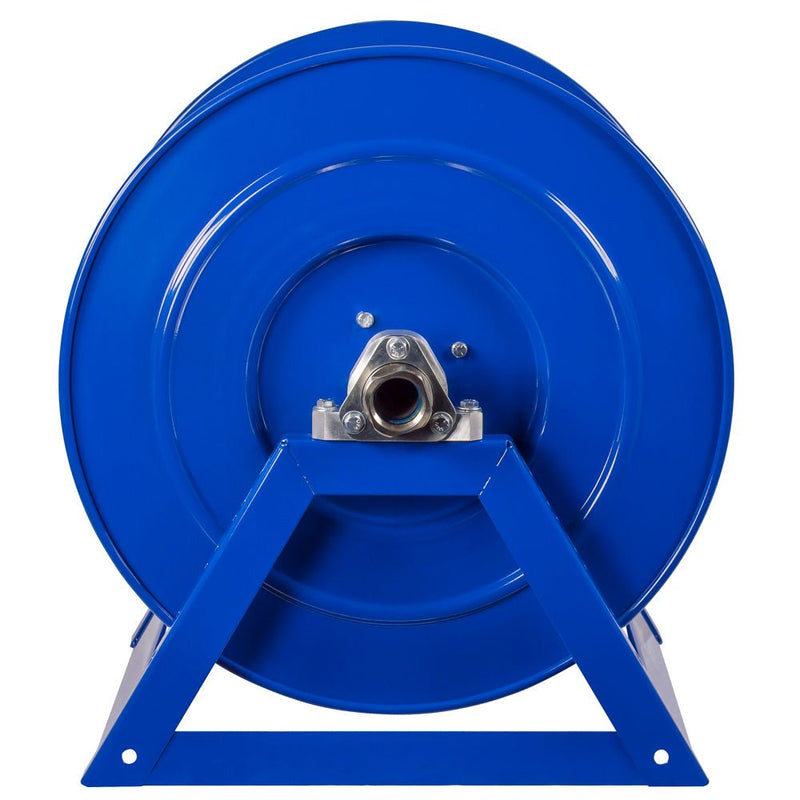

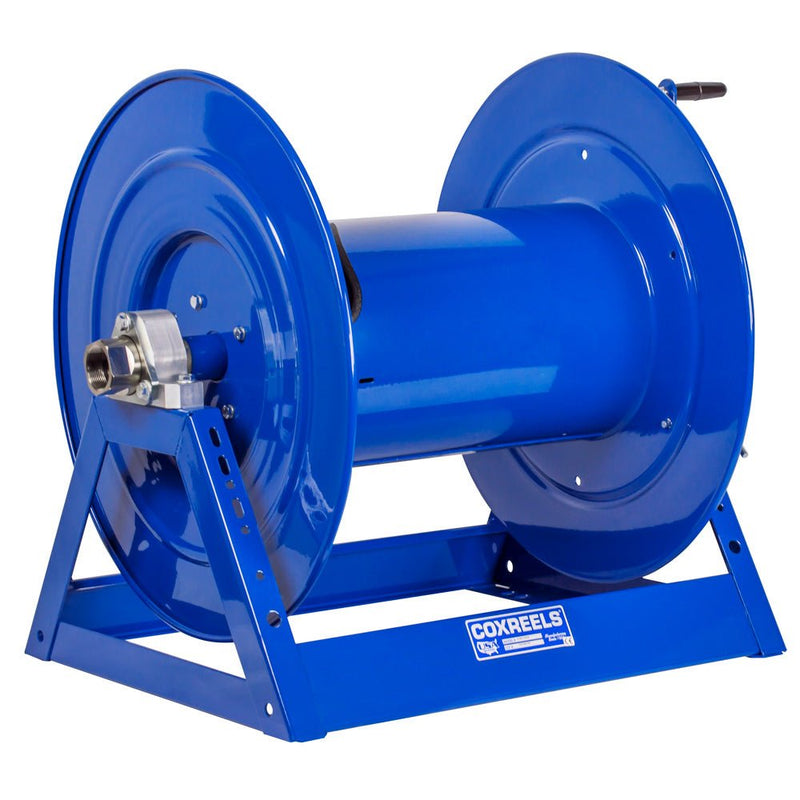

Enrouleur de tuyau, 1-1/2" x 50', rembobinage manuel, COXREELS 1185-1124-BEXX

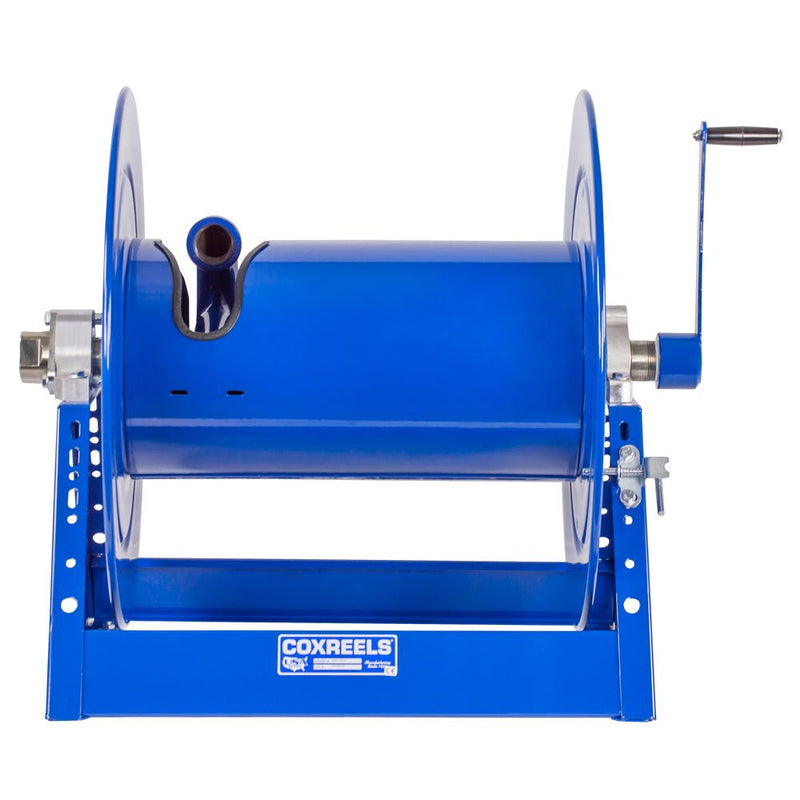

Images affichées : 1185-2024
Les enrouleurs de tuyau à manivelle COXREELS ® série 1185 sont conçus pour gérer de grandes longueurs de tuyaux de grand diamètre pour un débit de volume accru. La colonne montante de sortie à profil bas exclusive de Coxreels et la conception du tambour ouvert offrent un emballage de tuyau plat et lisse, sans sertissage. La base robuste du cadre en « A » entièrement soudée offre une résistance exceptionnelle pour supporter le poids supplémentaire sans sacrifier les performances, même dans les applications mobiles exigeantes.
Caractéristiques distinctives :
| Manufacturer part number | 1185-1124-BEXX |
|---|---|
| Material | Acier |
| Size | 1-1/2" x 50' |
| Connection | NPT femelle |
| Operation |
|
| Seal Material | EPDM |
| Max PSI | 1 500 livres par pouce carré |
| Finish | Bleu enduit de poudre |
| Series | 1185 |
| Country of Origin | États-Unis (sous réserve de modifications) |
| UPC | 674255833555 |
| Weight | 76.0 lb |
Coxreels 1185-1124-BEXX - direct hand crank (SKU 0006329) · EXP 210 Rev. D; ECO 2991; December 10, 2013
Frame, 24-inch
Used in assembly: 1
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Merchant confirmed the catalog 8162-1124 24-inch frame (SKU 0011806) for this reel. Its catalog title identifies 8162-1124; the saved custom.mpn value 8169-11.5 conflicts with that title. The exact catalog product and variant are linked on the merchant’s confirmation; catalog metadata has not been changed. User confirmed: “Use the 8970-2 swivel and the 8162-1124 frame for this reel. Link both to the assembly.” Applies to Coxreels 1185-1124-BEXX, SKU 0006329.
View product and purchase optionsAxle assembly, inline, 11.5
Used in assembly: 1
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Selected standard inline axle 8962-11.5 for model 1185-1124. Other axle lengths and optional 90-degree-swivel axles are excluded.
View product and purchase optionsDirect hand crank assembly
Used in assembly: 1
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
View product and purchase optionsLock pin assembly
Used in assembly: 1
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
View product and purchase optionsThrust washer
Used in assembly: 1
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
View product and purchase optionsDisc, 24-inch
Used in assembly: 1
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Selected 24-inch disc 7603-1 for callout 6A; disc 7603 at callout 6B is a distinct component.
View product and purchase optionsDisc, 24-inch
Used in assembly: 1
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Selected 24-inch disc 7603 for callout 6B; disc 7603-1 at callout 6A is a distinct component.
View product and purchase optionsSwivel, 1-1/2-inch, inline
Used in assembly: 1
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Merchant confirmed Coxreels 8970-2 BEXX/EPDM swivel (SKU 0009516) as the replacement for diagram item 7A, printed source part 8970. Source manufacturer number 8970 and callout 7A are preserved. O-ring and backup ring are included in item 7A and shown for reference only, not separate BOM rows. User confirmed: “Use the 8970-2 swivel and the 8162-1124 frame for this reel. Link both to the assembly.” Applies to Coxreels 1185-1124-BEXX, SKU 0006329.
View product and purchase optionsBearing assembly
Used in assembly: 1
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Standard inline configuration uses 1 bearing assembly 8166 opposite the swivel; the inline swivel side uses separate bearing 8954 at callout 8B.
View product and purchase optionsBearing assembly, inline swivel side
Used in assembly: 1
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
View product and purchase optionsRetaining ring
Used in assembly: 2
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
View product and purchase optionsBolt, 3/8-16 x 2-inch
Used in assembly: 4
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
Request a quote. Enable JavaScript to prepare a draft from this part.
Center drum, 11.5
Used in assembly: 1
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Selected center drum 7604-1-11.5 for model 1185-1124; other drum lengths are excluded.
Request a quote. Enable JavaScript to prepare a draft from this part.
Locknut, 3/8-inch
Used in assembly: 7
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Standard inline configuration quantity: 7 per complete reel. Grouped BOM total; do not multiply by repeated drawing symbols.
Request a quote. Enable JavaScript to prepare a draft from this part.
Bolt, 5/16-18 x 3/4-inch
Used in assembly: 10
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
Request a quote. Enable JavaScript to prepare a draft from this part.
Lockwasher, 5/16-inch
Used in assembly: 8
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
Request a quote. Enable JavaScript to prepare a draft from this part.
Locknut, 5/16-18
Used in assembly: 2
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
Request a quote. Enable JavaScript to prepare a draft from this part.
Flat washer, 3/8-inch
Used in assembly: 14
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Standard inline configuration quantity: 14 per complete reel. Grouped BOM total; do not multiply by repeated drawing symbols.
Request a quote. Enable JavaScript to prepare a draft from this part.
Drum edge trim
Used in assembly: 1
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
Request a quote. Enable JavaScript to prepare a draft from this part.
Bearing washer
Used in assembly: 3
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
View product and purchase optionsFlat washer, 5/16-inch
Used in assembly: 4
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
Request a quote. Enable JavaScript to prepare a draft from this part.
Retaining plate
Used in assembly: 1
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
View product and purchase optionsBolt, 3/8-16 x 2-1/2-inch
Used in assembly: 3
Applies to Coxreels 1185-1124-BEXX, SKU 0006329, standard inline-swivel direct hand-crank configuration. Quantity is the printed total for one applicable reel; repeated drawing symbols do not add requirements.
Request a quote. Enable JavaScript to prepare a draft from this part.
Your selected parts and requested quantities will appear below when the quote form is ready.
