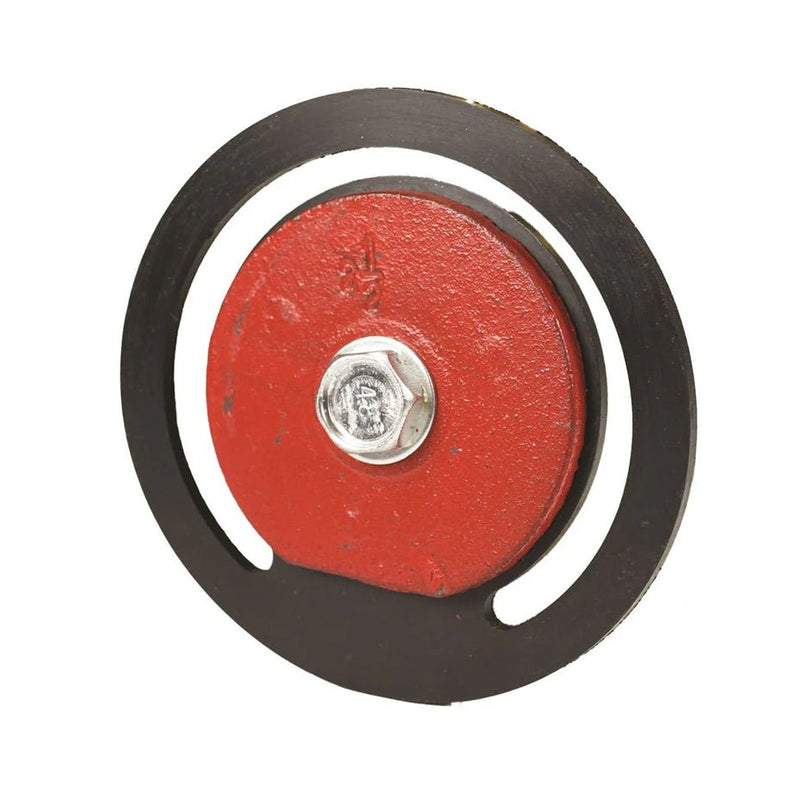

Flapper Assembly for 3" Foot Valve, Dixon FVFA35 - UnitedBuilt Equipment

Ensemble de clapet de pied de 3 po (VALFTFVFA35)

UGC 0004896
par Dixon
Disponibilité:
4 en stock | En stock
$0.00 - $0.00
$0.00
$24.16
$24.16 - $24.16
$24.16

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

Replacement flapper assembly only, not a complete foot valve.

The Dixon FVFA35 is a 3-inch foot-valve flapper assembly for water-suction service. Its painted cast-iron and rubber construction replaces the flapper assembly in the corresponding Dixon foot-valve size.

A functioning foot valve helps retain the pump's prime between operating periods. Confirm the existing valve and replacement part before ordering; a matching nominal hose size alone does not establish fit.

Service the flapper assembly

Feature Benefit
Replacement assembly Allows the flapper to be serviced without ordering a complete foot valve when the remaining valve components are serviceable.
3-inch size Matches the specified Dixon foot-valve service-part size.
Water-suction application Supports the foot valve's role in retaining pump prime.

Technical specifications

Specification Detail
Manufacturer part number FVFA35
Component Flapper assembly
Nominal size 3 inches
Materials Painted cast iron and rubber
Service Water only
Installed orientation Vertical

Before ordering

Check Requirement
Valve identity Confirm the Dixon valve model, size and existing flapper before selecting this replacement.
Other service parts Inspect the valve's remaining components separately; this item is not a complete valve or a comprehensive rebuild kit.
Operating restrictions Install vertically for water service. Do not use with compressed air or other compressible gases.

California warning: This product contains lead, which California identifies as a cause of cancer, birth defects, or other reproductive harm.

Need help confirming the replacement flapper? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your valve model, existing part number or photos.
