Swivel Rebuild Kit, Nitrile Rubber Seal Kit for 3" O-ring Swivel, Dixon 3RKOBU - UnitedBuilt Equipment

Kit de reconstruction de pivot, kit de joint en caoutchouc nitrile pour pivot à joint torique de 3", Dixon 3RKOBU

UGC 0004078
par Dixon
Disponibilité:
4 en stock | En stock
$0.00 - $0.00
$0.00
$33.54
$33.54 - $33.54
$33.54

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

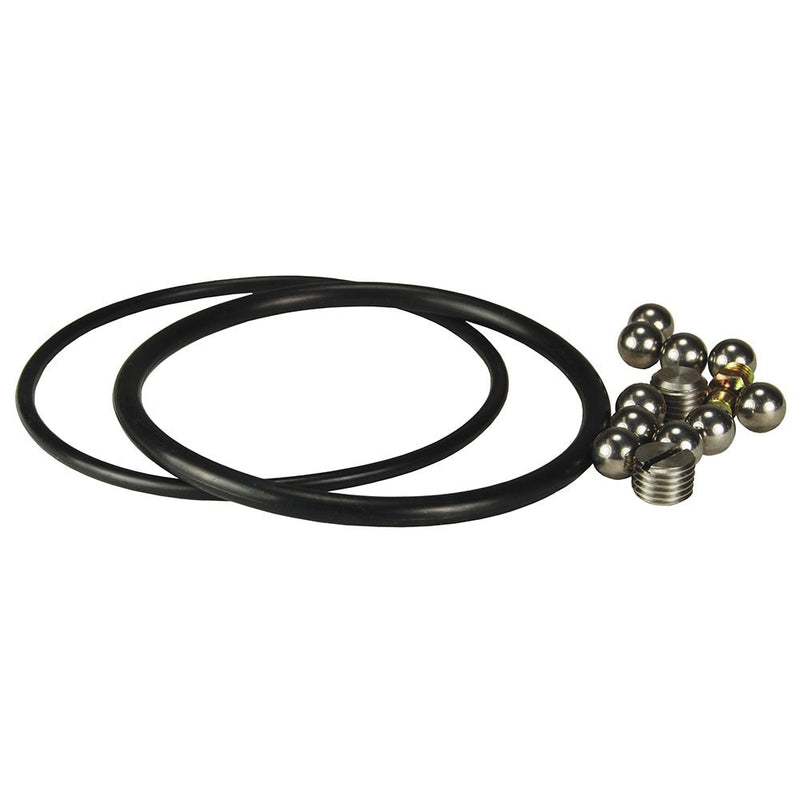

Dixon 3RKOBU is a service kit for a compatible 3-inch O-ring swivel joint. Its nitrile rubber pressure and dust seals replace the sealing components at one plane of rotation, with retaining hardware and ten replacement balls supplied together.

This is an RK-series repair kit, not a complete swivel joint or a total-bearing rebuild kit. Check the swivel model and the condition of its bearing races before ordering; a seal kit cannot correct damaged joint bodies or worn races.

Service one swivel rotation plane

Feature Benefit
Nitrile seals Replace the pressure seal and dust seal together in the matching O-ring swivel.
Replacement hardware Includes ball-retainer screws and a grease plug for the service work.
Ten ball bearings Supplies replacement balls; this is not the complete bearing complement for the swivel.

Technical specifications and kit contents

Component Included quantity
Pressure O-ring 1, nitrile rubber
Dust O-ring 1, nitrile rubber
Ball-retainer screws 2
Grease plug 1
Ball bearings 10
Service coverage One plane of rotation

Before ordering

Check Ordering guidance
Swivel identity Match Dixon 3RKOBU to the existing 3-inch O-ring swivel; nominal pipe size alone does not establish fit.
Seal selection Confirm nitrile compatibility with the conveyed fluid and operating temperature.
Rebuild extent A multi-plane assembly may require more than one kit. If every bearing needs replacement, select the appropriate total rebuild kit instead.
Operating conditions Retain the pressure, temperature and installation limits of the complete swivel; the kit does not increase its rating.

California warning: This product contains lead, which can cause cancer and reproductive harm.

Need help selecting the correct swivel kit? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your swivel model, nominal size and service fluid.
