Pompe pour camion à eau, fonte, 4x3, dans le sens inverse des aiguilles d'une montre (CCW), extrémités rainurées, joint mécanique, UnitedBuilt M3ZRMS B68416MS

UGC 0009960UnitedBuilt
Manufacturer part number
B68416MS
Material
Fonte
Size
4" x 3"
Connection
Rainure
Prix d'origine $0.00 - Prix d'origine $0.00
Prix d'origine $0.00
$1,300.00
$1,300.00 - $1,300.00
Prix actuel $1,300.00

Prise en charge disponible à 2045 West Buckeye Road

Habituellement prête en 2 heures

2045 West Buckeye Road
Phoenix AZ 85009
États-Unis

+16022537739

Questions about this product?

Overview

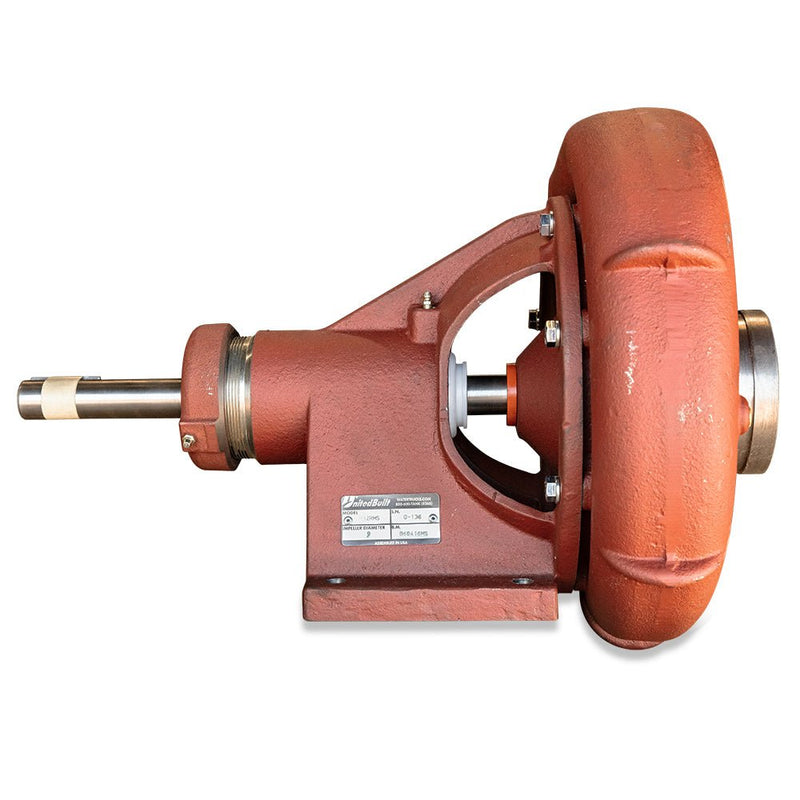

Pompe à eau centrifuge UnitedBuilt B68416MS

  • Aspiration et décharge rainurées
  • Aspiration de 4"
  • Décharge 3"

UnitedBuilt M3ZRMS dans le sens inverse des aiguilles d'une montre (CCW) Pompe de camion à eau à garniture mécanique 4x3 avec extrémités rainurées.

Cette pompe est caractéristiques du boîtier de la turbine (volute) rainuré se termine pour connecter l’aspiration et le refoulement. La connexion de type rainure rend le retrait pour l'entretien rapide et simple.

À 2 500 tr/min, les pompes modèle M3ZRM(S) sont évaluées pour 750 GPM à 65 PSI. Cette pompe peut être entraînée par la prise de force de l'arbre d'entraînement ou hydrauliquement avec le support adaptateur et l'accouplement B07779.

Fabriqué en fonte robuste et usiné et assemblé aux États-Unis. Cette pompe est un remplacement direct de haute qualité pour la pompe à eau Berkeley B3ZRMS B68416.

Specifications
Manufacturer part numberB68416MS
Model NumberM3ZRMS
MaterialFonte
Size4" x 3"
ConnectionRainure
Seal TypeGarniture mécanique
Inlet Diameter4"
Outlet Diameter3"
FinishPeinture rouge antirouille
RotationDans le sens inverse des aiguilles d'une montre (CCW)
Shaft Size1-1/8"
Shaft TypeClé 1/4"
Country of OriginÉtats-Unis (sous réserve de modifications)
UPC850087050012
Weight97.0 lb

Shop repair parts

UnitedBuilt B68416MS M3ZRMS Water Truck Pump · Unverified — legacy template migration

UnitedBuilt B68416MS M3ZRMS Water Truck Pump exploded-parts diagram
  1. 01 · S19914MS

    Outer Bearing Cap, Cast Iron, UnitedBuilt S19914MS for M3ZRM(S)

    Used in assembly: 1

    Outer bearing cap. Match the cap shape and mounting position to your pump before ordering.

    View product and purchase options
  2. 02 · S24255MS

    Shaft Key 1/4" x 2" Long, UnitedBuilt S24255MS

    Used in assembly: 1

    Shaft key, 1/4 inch wide × 2 inches long.

    View product and purchase options
  3. 03 · S23010MS

    External Retaining Ring, Black Phosphate, 1-3/16-inch Shaft, UnitedBuilt S23010MS

    Used in assembly: 1

    Rear retaining ring, 1-3/16 inch, black phosphate. Retains the rear bearing and thrust ring; distinct from the stainless steel mechanical-seal retaining ring at item 11.

    View product and purchase options
  4. 04 · S29218MS

    Shaft Thrust Ring, 1-3/16-in ID x 1-9/16-in OD, UnitedBuilt S29218MS

    Used in assembly: 1

    Match the thrust-ring dimensions and position to your counterclockwise (CCW) shaft before ordering.

    View product and purchase options
  5. 05 · S13271MS

    Outboard Ball Bearing, UnitedBuilt S13271MS, Double Row, 5306-C3

    Used in assembly: 1

    Double-row outboard bearing, 5306-C3. Match the bearing number and position to your pump; this is not the S13270MS inboard bearing.

    View product and purchase options
  6. 06 · S13270MS

    Inboard Ball Bearing, UnitedBuilt S13270MS, Single Row, 6206-C3

    Used in assembly: 1

    Single-row inboard bearing, 6206-C3. Match the bearing number and position to your pump; this is not the S13271MS outboard bearing.

    View product and purchase options
  7. 07 · S19033MS

    Inner Grease Cap, UnitedBuilt S19033MS for M3ZRM(S)

    Used in assembly: 1

    Inner grease cap. Match its position and shape to your pump; the outer bearing cap is S19914MS.

    View product and purchase options
  8. 08 · S12260MS

    Polyurethane Water Slinger, UnitedBuilt S12260MS for M3Z Pumps

    Used in assembly: 1

    Polyurethane water slinger. Match its dimensions and position to the slinger in your pump.

    View product and purchase options
  9. 09 · S32690MS

    Mechanical Seal, 1-1/8-in Type C, UnitedBuilt S32690MS

    Used in assembly: 1

    Individual mechanical seal, not a complete seal kit. Confirm the seal type and dimensions against your pump before ordering.

    View product and purchase options
  10. 10 · S39242MS

    Stainless Steel Shaft Sleeve, UnitedBuilt S39242MS for M3ZRM(S)

    Used in assembly: 1

    Match the shaft sleeve dimensions and retaining-ring arrangement to your pump before ordering.

    View product and purchase options
  11. 11 · S23009MS

    External Retaining Ring, Stainless Steel, 1-1/8-in Shaft, UnitedBuilt S23009MS

    Used in assembly: 1

    Mechanical-seal retaining ring, 1-1/8 inch, stainless steel. Retains the mechanical seal; distinct from the black-phosphate rear retaining ring at item 03.

    View product and purchase options
  12. 12 · H04007MS

    Mechanical-Seal Bearing Frame, UnitedBuilt H04007MS, M3ZRMS

    Used in assembly: 1

    For a mechanical-seal bearing frame. Confirm the frame shape, mounting dimensions and seal arrangement match your pump before ordering.

    View product and purchase options
  13. 13 · B80697MS

    Shaft Kit, Mechanical Seal, CCW, UnitedBuilt B80697MS

    Used in assembly: 1

    Mechanical-seal shaft kit for B68416MS, counterclockwise (CCW). Review the kit’s product page for included components and ordering options.

    View product and purchase options
  14. 14 · S26826MS

    Hex Capscrew, 3/8-16 x 1", UnitedBuilt S26826MS

    Used in assembly: 8

    Eight capscrews are listed per pump; this is the installed quantity, not a pack size. Confirm the count needed for your pump before ordering.

    View product and purchase options
  15. 15 · M02181MS

    Cast Iron Impeller, CCW, UnitedBuilt M02181MS for M3Z Pumps

    Used in assembly: 1

    Counterclockwise impeller for B68416MS. Confirm the impeller and shaft-thread compatibility before ordering.

    View product and purchase options
  16. 16 · U36-189SSMS

    Impeller Lock Nut, 7/8-9 LH, Stainless Steel, UnitedBuilt U36-189SSMS

    Used in assembly: 1

    7/8-9 left-hand-thread impeller nut for the counterclockwise pump. Confirm your shaft thread and any replacement part number before ordering.

    View product and purchase options
  17. 17 · S05126MS

    Volute Gasket, UnitedBuilt S05126MS, M3ZRM and M3ZRMS 4x3

    Used in assembly: 1

    Match the gasket shape and dimensions to your volute. The 4x3 pump size is not the gasket size; confirm the quantity needed before ordering.

    View product and purchase options
  18. 18 · H04041MS

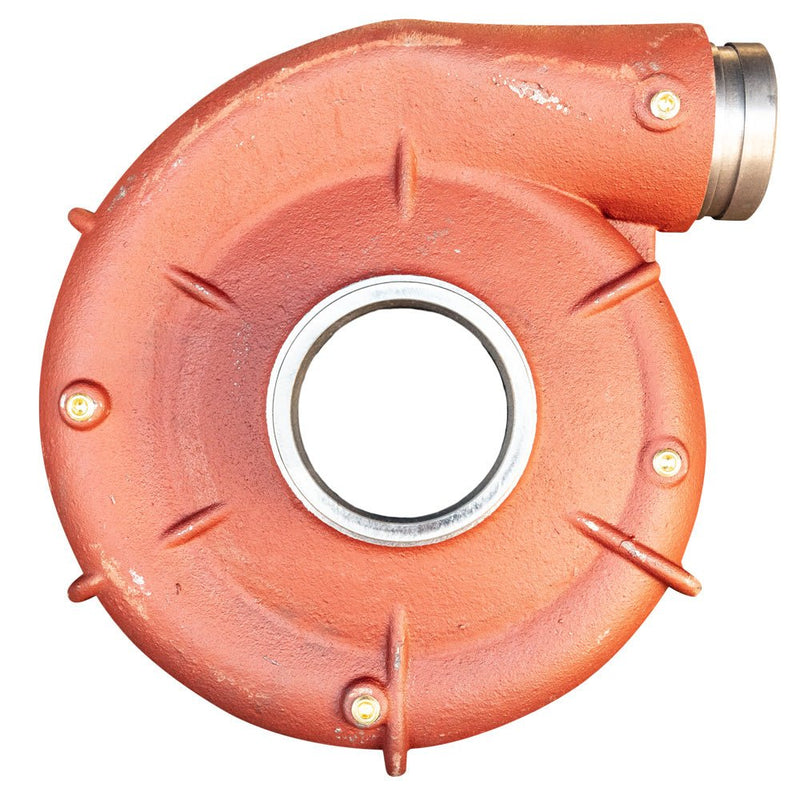

    Grooved Volute, UnitedBuilt H04041MS, 4x3, Counterclockwise, Cast Iron

    Used in assembly: 1

    Counterclockwise 4x3 grooved volute for B68416MS. Match pump rotation and port arrangement before ordering.

    View product and purchase options
  19. 19 · VS109AL-4

    Mid-America Brass Countersunk Hex Socket Plug, 1/4" Male NPT, Vibra-Seal – VS109AL-4

    Used in assembly: 4

    1/4-inch male NPT plug, VS109AL-4; alternate part number 3153X4. Confirm your pump’s port threads and required plug count before ordering.

    View product and purchase options
  20. 20 · S23670MS

    Straight Grease Fitting, 1/4"-28 SAE-LT, Zinc-Plated Steel, UnitedBuilt S23670MS

    Used in assembly: 3

    Three grease fittings per pump: one on the bearing frame (item 12) and two on the rear grease cap (item 01).

    View product and purchase options
  21. Seal kit · Part number to verify

    Mechanical Seal Kit, UnitedBuilt M3ZRMS

    Used in assembly: 1

    Optional reseal kit: one each S32690MS mechanical seal, S05126MS volute gasket, S19033MS inner grease cap and S12260MS water slinger. Shaft, sleeve, bearings, impeller and housings are not included. View the kit product page for ordering options.
