Bearing Pump Side XS9 (PUMPW305462025) - UnitedBuilt Equipment

Roulement côté pompe XS9 (PUMPW305462025)

Name: Roulement côté pompe XS9 (PUMPW305462025)
Brand: Franklin
SKU: 0008285
Price: 106.88 USD
Availability: InStock

UGC 0008285

par Franklin

Disponibilité:

1 en stock | En stock

$0.00 - $0.00

$0.00

$106.88

$106.88 - $106.88

$106.88

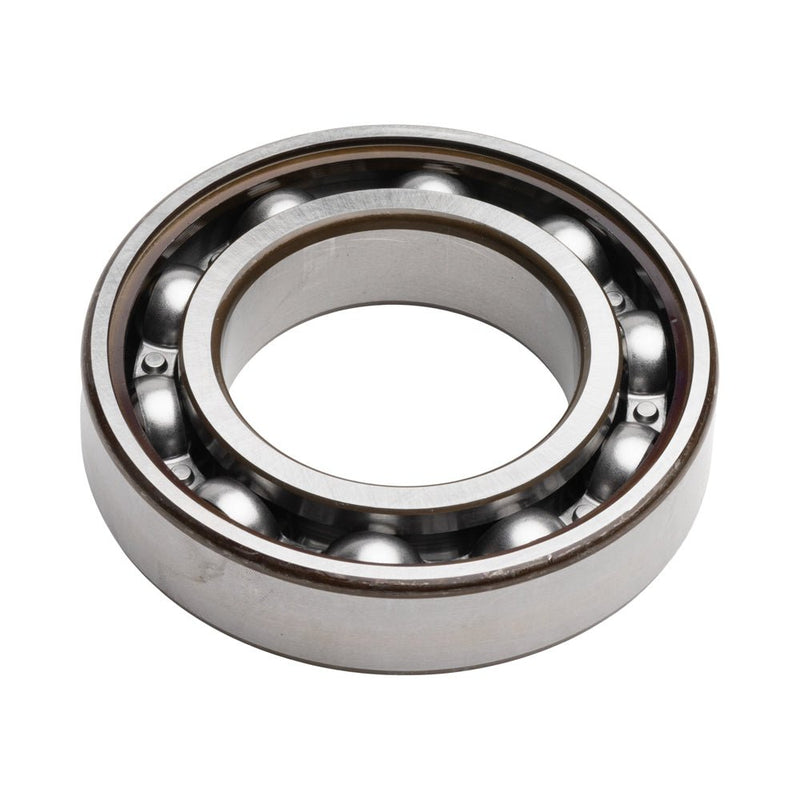

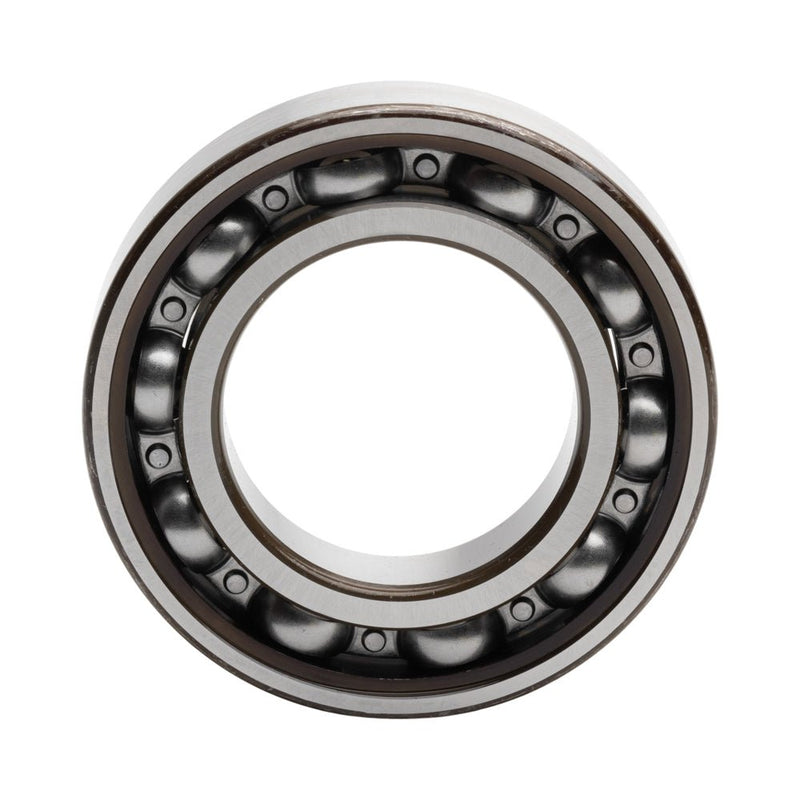

Product Images

Images are for representation only and may differ from the actual product.

Questions about this product?

La description

Franklin XS439 pump-side bearing, part number 305462025, supports the pump shaft at the pump-side bearing position in Franklin XS439 water-truck pumps. Use this part when servicing that specific bearing location on a compatible bearing-frame or hydraulic-drive assembly.

The pump-side and drive-side bearings have different part numbers. Matching the bearing position as well as the complete pump model helps keep a shaft-service order from being built around the wrong component.

Replacement hardware for the right service position

Feature	Benefit
Pump-side location	Services the shaft-support position nearest the pumping end of the assembly.
Separate service component	Allows the required bearing to be selected independently of a complete replacement pump.

Technical specifications

Specification	Details
Manufacturer	Franklin Electric
Manufacturer part number	305462025
Component	Pump-side bearing
Material	Steel
Application	XS439 (XS3x4-9) bearing-frame and hydraulic-drive configurations, pump-side position

Compatible component selection

Component or configuration	Selection
Pump-side bearing	305462025, figure 16
Drive-side bearing	305463145 is a different part; select it separately if required.
Pump configurations	XS439 bearing-frame and hydraulic-drive assemblies

Before ordering

Check	What to confirm
Bearing position	Confirm the removed bearing is the pump-side component.
Pump identity	Match the full pump model and existing bearing part number.
Repair scope	Inspect the shaft, bearing seats and related seals before ordering the remaining service parts.

Follow the pump and equipment service instructions. Isolate the drive and relieve stored pressure before disassembly.

Need help confirming the correct replacement part? Contact UnitedBuilt through online chat, email parts@unitedbuilt.com, or call 602-253-7750 with your pump model, existing part number, or photos.
